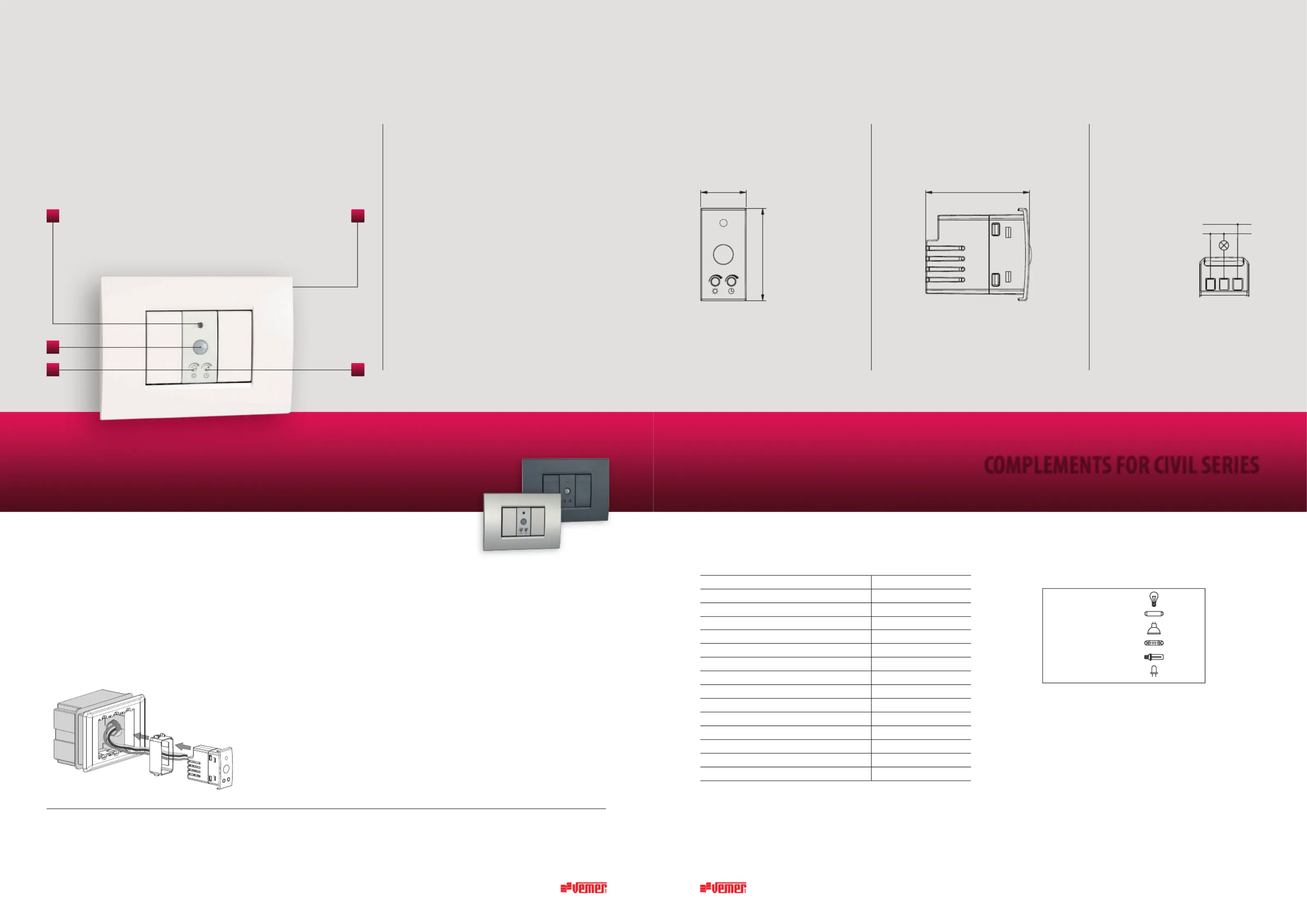

COMPLEMENTS FOR CIVIL SERIES
TECHNICAL INFORMATION
SENS IR
1 Installation in ush-mounting boxes with a height of 45 mm
2 Twilight sensor for environmental brightness measurement
3 Movement sensor
4 Timing regulator (from 30 seconds to 15 minutes)
5 Intervention brightness regulator (from 5 to 100 lux)
Twilight movement detector that captures the movements that occur within the sensor’s action field
and, if necessary, activates a load such as the lighting system.
The regulators on the front allow you to set the timing and brightness threshold below which
the load is activated.
Sens IR is small and compact to be installed with discretion in the flush-mounting boxes of any room
and is supplied with adapters that allow installation with the plates of the main civil series.
Movement detectors
Code Model Description Colour Power supply
VE770700 Sens IR Grigio Movement detector with twilight sensor compact size Grey 230 V~
VE770800 Sens IR Bianco Movement detector with twilight sensor compact size White 230 V~
VE765200 Sens IR Movement detector with twilight sensor compact size Silver Tech 230 V~
MOVEMENT DETECTORS
• Timing regulator: sets how long the load must remain on
• Brightness regulator: sets the brightness level below which to activate the load
in the case of movement detector
• Relay normally open with “zero crossing” technology to increase the duration of contacts
and better electrical performance
• Compact size: only 1 module occupied in the ush-mounting box
• Adapters that allow adaptability with the main civil series
(see “Adaptable plates”) included in the package
Adaptable plates
ABB Mylos series
Ave S44 series
Bticino Axolute series
Bticino Axolute Air series
Bticino Light series
Bticino Living International series
Bticino LivingLight series (LL)
Bticino LivingLight Air series
Bticino Matix series
Gewiss Chorus series
Vimar Arké series
Vimar Eikon series
Vimar Eikon Evo series
Vimar Plana series
For information on the possibility of using dierent plates
contact the technical assistance service
REFERENCE STANDARDS
Compliance with the Community Directives: 2014/35/EU (LVD) and 2014/30/EU (EMCD)
is declared in reference to the following harmonized standards: EN 60598-1 • EN 60598-2-2 • EN 61000-6-1 • EN 61000-6-3
Power supply V AC
230 (-10% ÷ +10%)
Frequency 50/60Hz
Maximum absorption VA (W) 5 1
Mounting ush
Maximum cables section mm
2
1.5
Output 1 relay normally open
Range of relay contacts at 250 V ac 5 (on resistive load)A
Intervention time 30 seconds ÷ 15 minutes
Intervention eld 5 ÷ 100lux
Detection angle 110 ° at 20 ° C
Detection range 7 meters at 20 ° C
Operating temperature 0 ÷ 35°C
Storage temperature -10 ÷ +60°C
Operating humidity 20% ÷ 90% non condensingRH
Protection degree IP40 (on the front)
GENERAL CHARACTERISTICS
CONNECTABLE LOADS
Incandescent 800 W
Fluorescent (neon) 200 VA
Low voltage halogen 500 VA
230 V~ halogen 800 W
Low consumption (CFL)
200 VA
Led 200 VA
CONNECTION DIAGRAM
Front view Side view Diagram
DIMENSIONS (mm)
2
3
5 4
SENS-IR-ENG-072019
