18Gbps HDMI In-line Signal Re-Clocker with EDID Management

CON-H2-EDID

Quickstart Guide

CON-H2-EDID Quickstart Guide | 190530

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

1 of 4

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the

installation process.

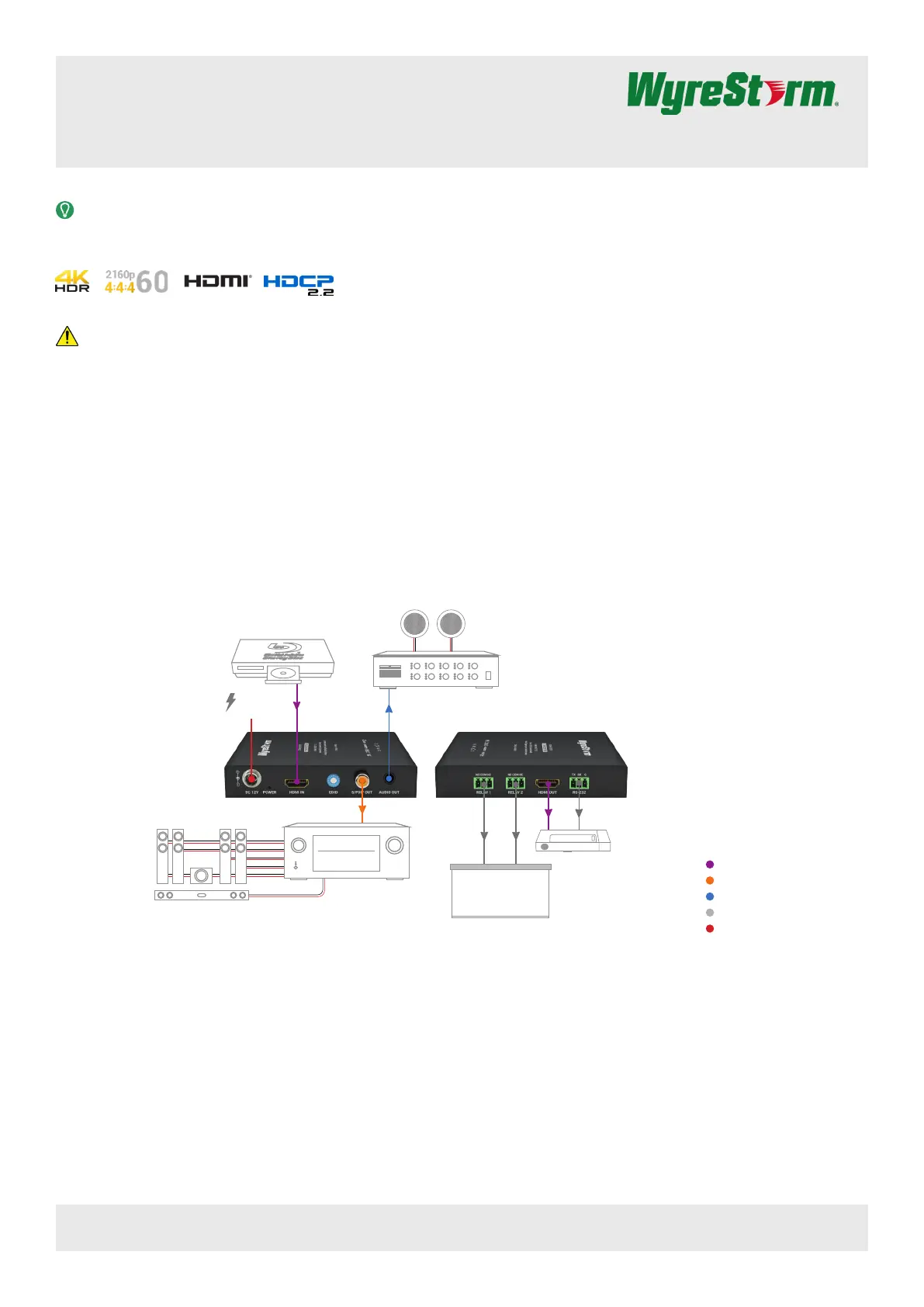

Basic Wiring Diagram

IMPORTANT! Installation Requirements

• Advanced conguration of this product requires the use of the use of the

WyreStorm Management Suite v1.6 or higher conguration tool. Download

the latest version from the product page before continuing with the

installation.

• Visit the product page to download the latest rmware, document version,

additional documentation, and conguration tools.

• Read through the Wiring and Connections section for important wiring

guidelines before creating or choosing premade cables.

• While this product supports CEC for the HDMI outputs, WyreStorm cannot

guarantee compatibility with all forms of CEC communication.

In the Box

1x CON-H2-EDID

1x DC 12V 1A Power Supply (US/UK/EU/AU)

3x 3-Pin Terminal Block

2x Mounting Brackets

1x Quick Start Guide (This Document)

KEY

Passive HDMI

Control

Power

Analog Audio

Digital Audio

Amplifier

CON-H2-EDID

Rear

CON-H2-EDID

Front

Analog Audio

Mains

HDR Source

Short Throw

Projector

Projector Screen

Audio Video

Receiver

CON-H2-EDID Quickstart Guide | 190530

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

2 of 4

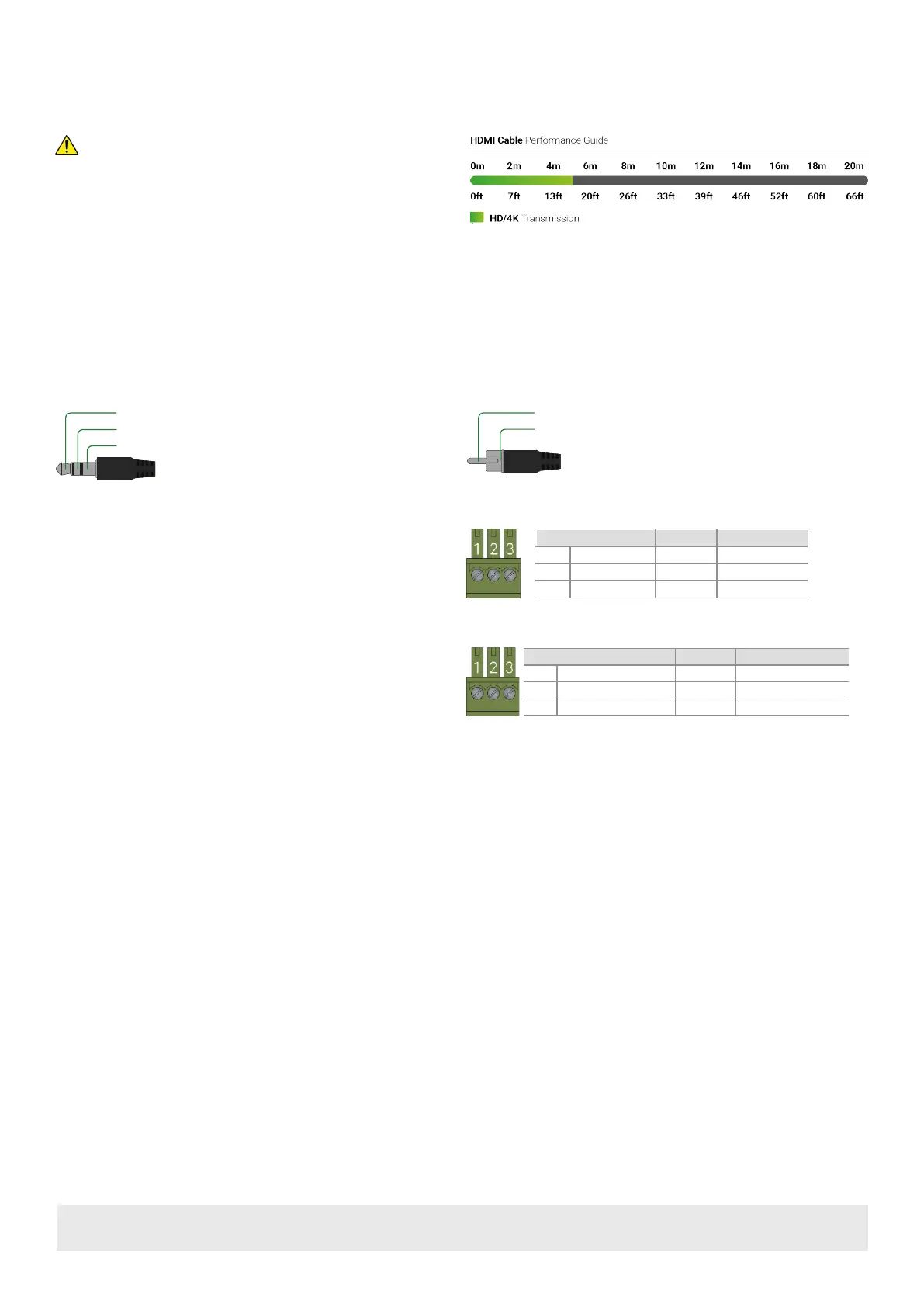

Wiring and Connections

WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in its

entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.

IMPORTANT! Wiring Guidelines

• The use of patch panels, wall plates, cable extenders, kinks in cables, and

electrical or environmental interference will have an adverse effect on

signal transmission which may limit performance. Steps should be taken

to minimize or remove these factors completely during installation for best

results.

• WyreStorm recommends using pre-terminated HDMI cables due to the

complexity of these connector types. Using pre-terminated cables will

ensure that these connections are accurate and will not interfere with the

performance of the product.

Audio Connections

Analog Audio Out

Tip:

Ring:

Left Channel

Right Channel

Sleeve: Ground (GND)

S/PDIF Digital Audio Out

Tip: Signal (+)

Shield: Ground/Return (-)

RS-232 Guidelines

This product uses a 3-pin RS-232 with no hardware ow control. Most control

systems and computers are DTE where pin 2 is RX, this can vary from device

to device. Refer to the documentation for the connected device for pin

functionally to ensure that the correct connections can be made.

3rd Party Device

Pin 1 TX (Transmit) ---> To ---> RX (Receive)

Pin 2 RX (Receive) ---> To ---> TX (Transmit)

Pin 3 G (Ground) ---> To ---> G (Ground)

WyreStorm Connector

Relay Wiring

The relays on this product can be used to be trigger devices such as projector

screens that are Normally Open (NO) or Normally Closed (NC).

3rd Party Device

Pin 1 NO (Normally Open) ---> To ---> NO (Normally Open)

Pin 2 Common (Ground) ---> To ---> Common (Ground)

Pin 3 NC (Normally Closed) ---> To ---> NC (Normally Closed)

WyreStorm Connector

Troubleshooting

No or Poor Quality Picture (snow or noisy image)

• Verify that the output resolution of the source and display is supported by

this product.

• If transmitting 3D or 4K, verify that the HDMI cables used are 3D or 4K rated.

• Verify that all source and display connections are not loose and are

functioning properly.

No or Intermittent 3rd party Device Control

• Verify that the RS-232 cables are properly terminated.Refer to RS-232

Guidelines and/or Relay Wiring sections for pinout information.

Produktspecifikationer

Varumärke:	WyreStorm
Kategori:	AV förlängare
Modell:	CON-H2-EDID
Vikt:	230 g
Bredd:	120 mm
Djup:	80 mm
Höjd:	20 mm
LED-indikatorer:	Ja
Videolägen som stöds:	1080p, 2160p
Maximal upplösning:	4096 x 2160 pixlar
Ljudsystem:	Flerkanalig
Strömförbrukning (max):	2 W
HDCP:	Ja
Ljudutgång:	S/PDIF
HDMI-version:	2.0
Modell:	Repeater för AV-utrustning
Ljudutgångskanaler:	5.1 kanaler
HDCP-version:	2.2
Antal HDMI-utgångar:	1
Driftspänning:	12 V
Produktens färg:	Svart
Temperatur vid drift:	0 - 45 ° C
Temperaturintervall (förvaring):	-20 - 70 ° C
Intervall för relativ operativ luftfuktighet:	10 - 90 %
Fuktighet (förvaring):	10 - 90 %
Extern strömadapter:	Ja
Hållbarhetscertifiering:	RoHS
Anslutningsteknologi:	Kabel
Likströmsingång:	Ja
Max uppdateringsfrekvens:	60 hz
Maximal överföringshastighet avstånd:	5 m
HDMI-in:	1
3,5 mm-utgång:	Ja
RS-232-ingångar:	1
EDID (Extended display identification data):	Ja
