18Gbps 4K HDR AVX Extender with

eARC, Audio Breakout & PoE

EX-100-H2-EARC

Quickstart Guide

EX-100-H2-EARC Quickstart Guide | 210524

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

1 of 4

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the

installation process.

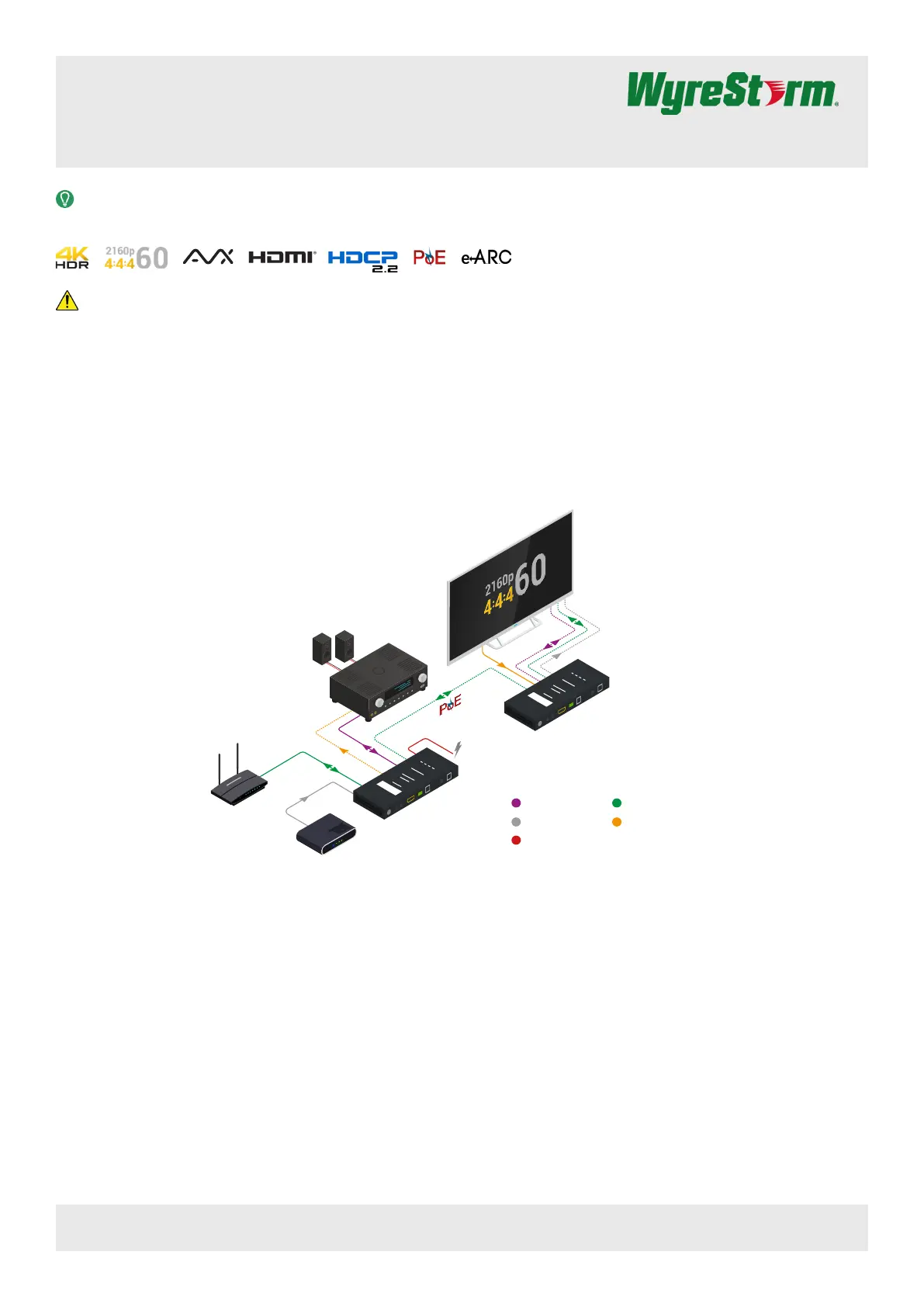

Basic Wiring Diagram

IMPORTANT! Installation Requirements

• Visit the product page to download the latest rmware, document

versions, additional documentation, and conguration tools.

• Read through the Wiring and Connections section for important wiring

guidelines before creating or choosing premade cables.

• While this product supports CEC, WyreStorm cannot guarantee

compatibility with all forms of CEC communication.

In the Box

1x EX-100-H2-EARC Transmitter

1x EX-100-H2-EARC Receiver

1x 12V DC 3A Power Supply (US/UK/EU/AU)

1x IR Receiver

1x IR Emitter

4x Mounting Brackets with screws

2x 3-pin Terminal Blocks

1x QuickStart Guide (this document)

KEY

HDMI (eARC)

Control

Power

Ethernet/AVX

Digital Audio

Transmitter

Receiver

LAN

Control System

AVR

Display Device

EX-100-H2-EARC Quickstart Guide | 210524

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

2 of 4

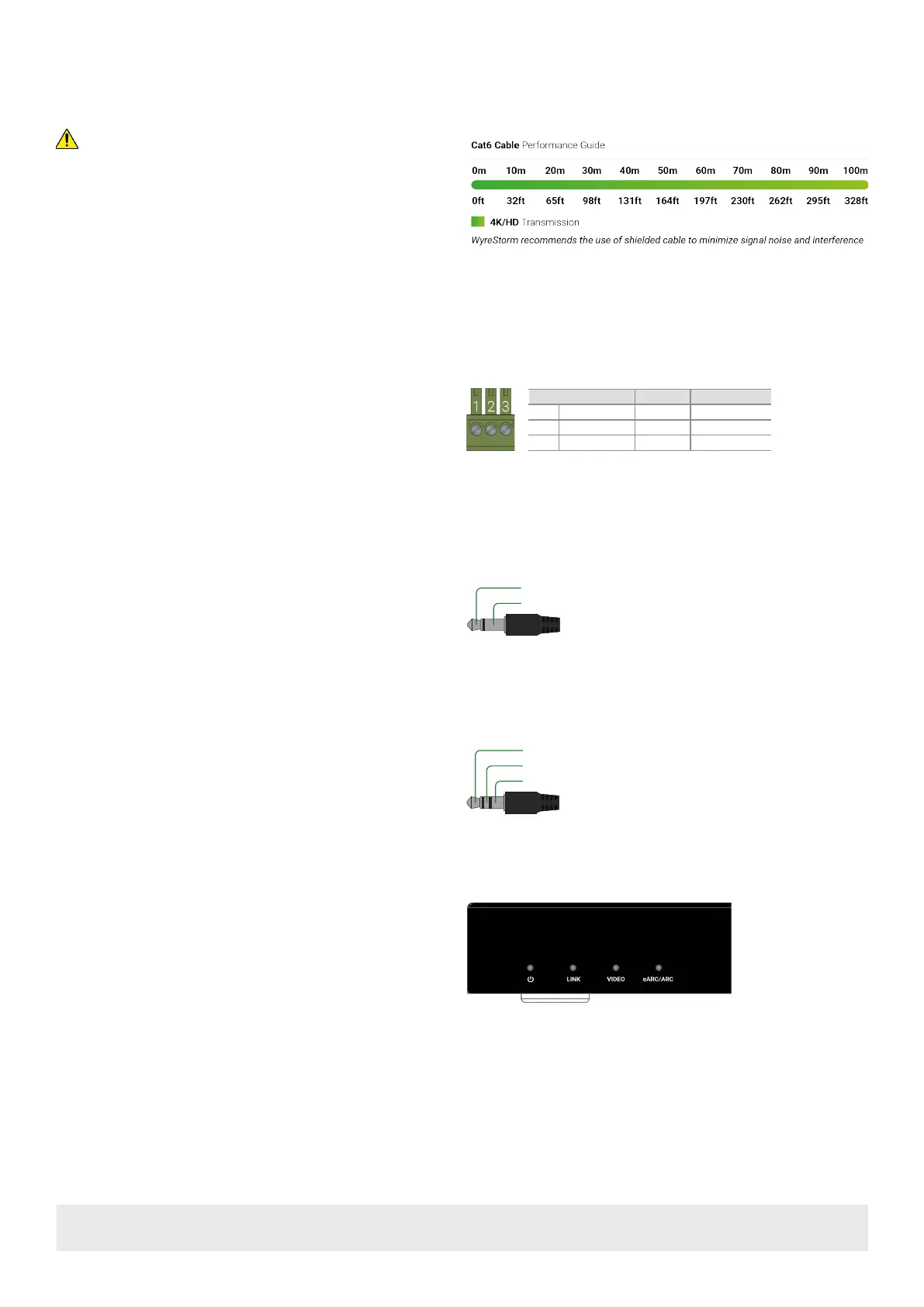

Wiring and Connections

WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in it’s

entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.

RS-232 Wiring

The EX-100-H2-EARC uses a 3-pin RS-232 with no hardware flow control.

Most control systems and computers are DTE where pin 2 is RX, this can vary

from device to device. Refer to the documentation for the connected device for

pin functionally to ensure that the correct connections can be made.

Refer to RS-232 Mode Settings for details on setting RS-232 modes.

3rd Party Device

Pin 1 TX (Transmit) ---> To ---> RX (Receive)

Pin 2 RX (Receive) ---> To ---> TX (Transmit)

Pin 3 G (Ground) ---> To ---> G (Ground)

WyreStorm Connector

IMPORTANT! Wiring Guidelines

• The use of patch panels, wall plates, cable extenders, kinks in cables, and

electrical or environmental interference will have an adverse effect on

signal transmission which may limit performance. Steps should be taken

to minimize or remove these factors completely during installation for best

results.

• WyreStorm recommends the use of shielded category cable to minimize

signal noise and interference.

• WyreStorm recommends using pre-terminated HDMI cables due to the

complexity of these connector types. Using pre-terminated cables will

ensure that these connections are accurate and will not interfere with the

performance of the product.

IR TX/RX Guidelines

• Using WyreStorm infrared emitters and receivers is the best way to ensure

that most IR coding formats are transmitted and received by the system.

Other 3rd party emitters and receivers can be used; however, these devices

must operate in the same manner as the WyreStorm devices.

• Due to differences in IR across 3rd party control systems their IR ports

should never be connected directly to a NetworkHD system as an

incompatibility may exist. WyreStorm offers a cable that compensates for

voltage differences as well adjusts for differences in the pins used within

the port. Refer to the CAB-IR-LINK product page for more information.

IR TX Port Pinout

Connection for IR TX (transmit) uses a 3.5mm (1/8in) mono plug.

Tip: Anode

Sleeve: Cathode (IR Signal)

IR RX Port Pinout

Connection for IR RX (receive) uses a 3.5mm (1/8in) stereo jack that outputs

+5V DC to power the included IR receiver.

Tip:

Ring: IR Signal

+5V DC

Sleeve: Ground (GND)

eARC/ARC LED

The EX-100-H2-EARC shares one LED to signify whether the extender is

transmitting an ARC or eARC signal. Based on the transmission, the LED

behavior changes as below.

Solid: eARC audio is transmitting

Flashing: ARC audio is transmitting
