Instruction Manual

Thank you for choosing this WyreStorm product.

Please read these instructions carefully before installing to avoid complications later.

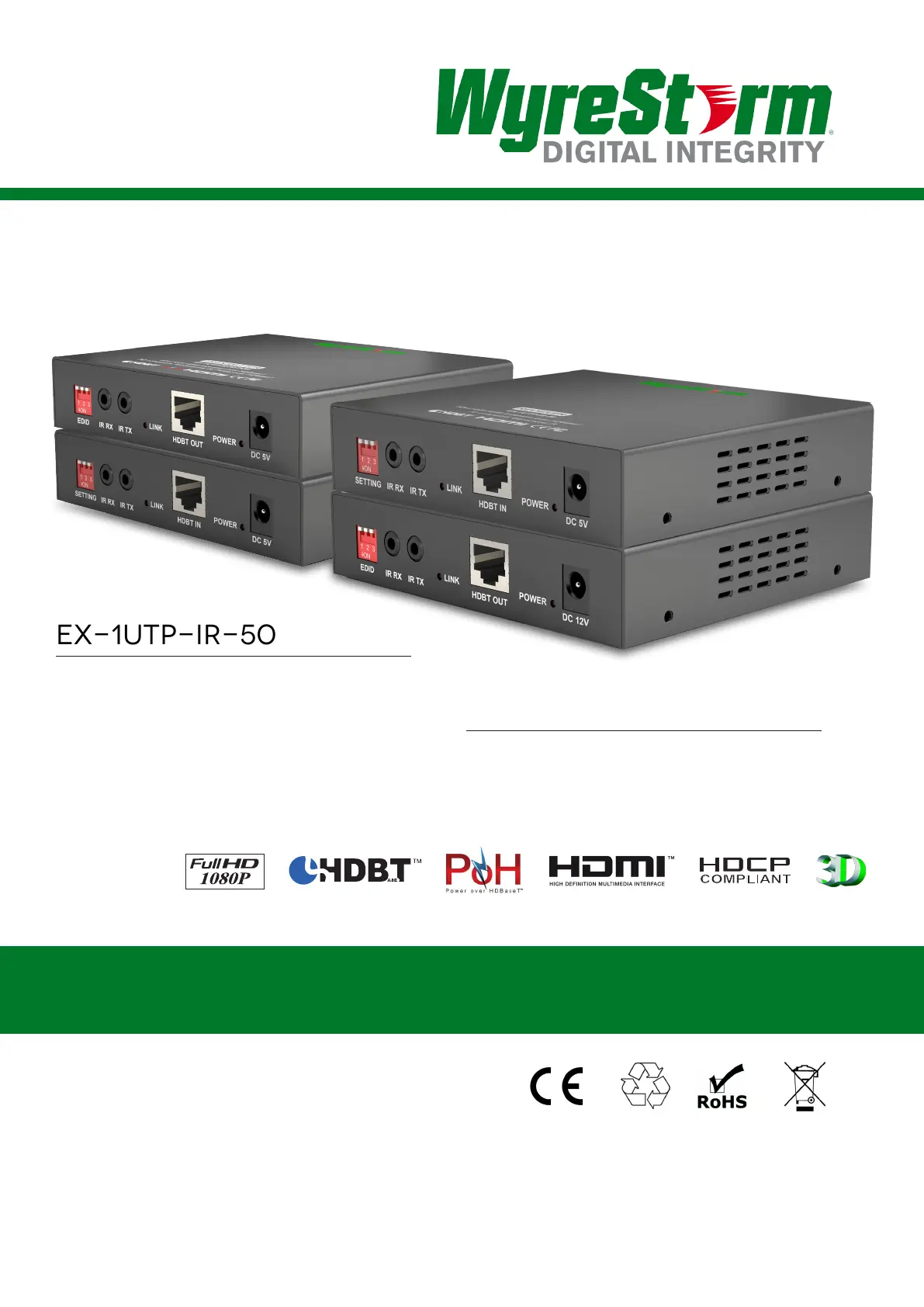

EX-1UTP-IR-50-POH

50M/164FT HDMI Extension Over HDBaseT incl.

Remote Power, full 3D & Bidirectional IR

EX-1UTP-IR-50

50m/164ft HDMI Extension over HDBaseT incl.

full 3D & Bidirectional IR

Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343

Contents

CONTENTS, INTRODUCTION, FEATURES, AND FEATURES

• HDBaseT extenders capable of 1080p HD @60Hz and

HD multichannel audio transmissions up to 50m/164ft

under perfect conditions*

• Discrete two-way IR control signal together with HDMI

signal over a single Cat5e/6/7 cable

• Power-over-HDBaseT (PoH) - 12v Mains connected

Transmitters pass unidirectional power along the Cat5e/6

to remotely power display receivers - no additional power

required at display locations. (EX-1UTP-IR-50-POH only)

• Fully supports 3D applications - frame packing/

sequential (Blu-ray) and Interlaced Stereoscopic (satellite/

cable) broadcasts

• Supports 36bit Deep Colour

• HDMI V1.4

• Cable termination follows IEEE-568B standards

• HDCP compliant

• Automatically adjusts feedback, equalisation and

amplication of signal for easy installation.

• LED indication for visual power and HDMI / HDBaseT

video signal status.

* Perfect transmission conditions denote straight cable

runs with no electrical interference, bends, kinks, patch

panels or wall outlets.

1. Introduction

The WyreStorm EX-1UTP-IR-50 and EX-1UTP-IR-

50-POH extender models feature Class B HDBaseT

technology for an even more aordable HDBaseT

extender solution over shorter distances up to

50m/164ft.

Designed for smaller projects that may not require the

feature set of full HDBaseT yet still benet from the

signal stability and functions oered by this powerful

technology, including distribution of full 1080p HD

video, HD audio and bidirectional IR, with the PoH

model including remote power passed through a single

Cat5e/6 cable from the transmitter to power the display

receiver.

The EX-1UTP-IR-50 and POH Extender models

comprise of a transmitter and receiver to distribute

full, uncompressed HD 1080p video @60Hz, HD

multichannel audio with bidirectional discrete IR control

of source and display from either location over distances

of up to 50m/164ft using a single shielded or unshielded

Cat5e/6 cable.

The EX-1UTP-IR-50-POH features Power-over-HDBaseT

technology, that enables the transmitter to draw 12v

power from a mains supply and pass the current along

the length of a single Cat5e/6 cable along with the video,

audio and control signals to power the receiver - no

power access is necessary at the display location for

ease of installation and connection; meaning no additional

power adaptors required and improved energy eciency.

Transmitters of both models include EDID management

to manually handle device communication via DIP

switch setting, with Receivers containing cable distance

setting mode to encourage successful transmission if

the distance of the cable run is an issue. Transmitters

and receivers of both models also feature protection

against ESD (electrostatic discharge) to further stabilise

transmission with LED indication on the unit housing

providing clear conrmation of power and signal link

status.

Both models are fully cascadable with distribution

increased by connecting multiple extenders for greater

exibility, whatever the application.

2. Features

Introduction

Features

Safety Precautions

Packaging Contents

Specication

Typical Application

Troubleshooting

FAQ’s

EDID & Distance Setting

Maintenance

Product Service

Panel Description

i. EX-1UTP-IR-50 Transmitter & Receiver

ii. EX-1UTP-IR-50 - POH Transmitter & Receiver

Connection & Operation

Mail In Service

Warranty

Warranty Limits and Exclusions

Installation Notes

Produktspecifikationer

Varumärke:	WyreStorm
Kategori:	AV förlängare
Modell:	EX-1UTP-IR50POH
Vikt:	360 g
LED-indikatorer:	Ja
Videolägen som stöds:	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Maximal upplösning:	1920 x 1200 pixlar
Ljudsystem:	Flerkanalig
Snabbstartsguide:	Ja
HDCP:	Ja
HDMI-version:	1.4
Grafikupplösningar som stöds:	640 x 480 (VGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
Modell:	Sändare och mottagare för AV-utrustning
Färgdjup:	36 bit
Ljudutgångskanaler:	7.1 kanaler
Bandbredd:	6.75 Gbit/s
RJ-45 utgångsportar:	1
Monteringsfästen ingår:	Ja
Antal HDMI-utgångar:	1
RJ-45 ingångsportar:	1
Driftspänning:	5 V
IR-sändare ingår:	Ja
Produktens färg:	Svart
Strömförsörjning via Ethernet (PoE) stöd:	Ja
Produktstorlek (BxDxH):	120 x 101 x 24 mm
Temperatur vid drift:	-5 - 35 ° C
Intervall för relativ operativ luftfuktighet:	5 - 90 %
Nätverksansluten (Ethernet):	Ja
Likströmsingång:	Ja
AC-adapter inkluderad:	Ja
På / av-knapp:	Ja
Maximal överföringshastighet avstånd:	50 m
Fjärrstyrd IR-utgång:	2
HDMI-in:	1
Fjärrstyrd (IR) ingång:	2
IR-mottagare ingår:	Ja
