Version 1.1 ©Copyright 2022, Ambient LLC. All Rights Reserved. Page 1

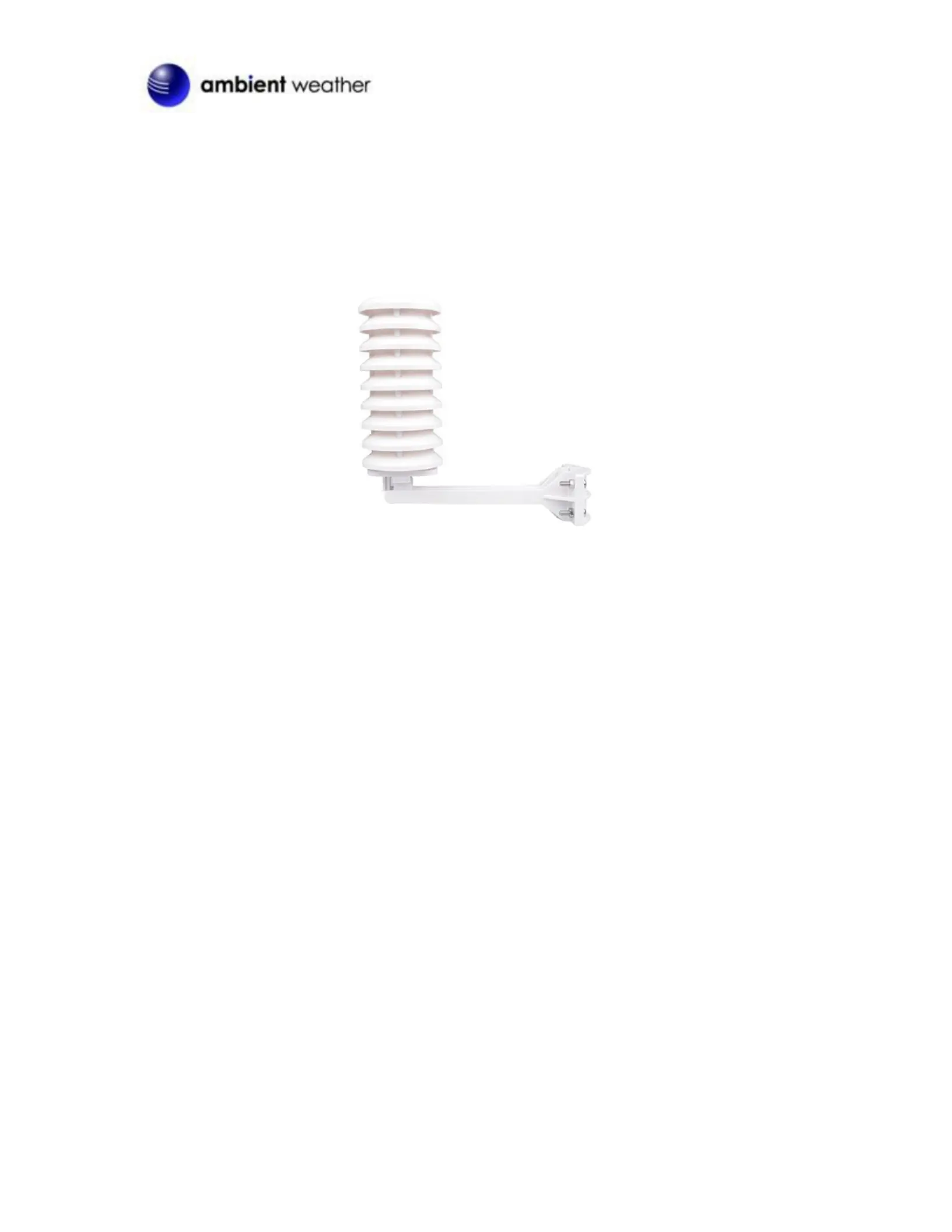

Ambient Weather WH31-SRS Temperature and Humidity
Solar Radiation Shield
Table of Contents
1
Introduction .............................................................................................................................................. 1
2
Part’s List ................................................................................................................................................. 2
3
Dimensions .............................................................................................................................................. 2
4
Tools and Materials Needed ..................................................................................................................... 3
5
Location Tips ........................................................................................................................................... 3
6
Installation
Options ................................................................................................................................. 3
7
Installation ............................................................................................................................................... 3
8 Compatible Sensors and Accessories ...................................................................................................... 5
9 Ambient Weather Network ...................................................................................................................... 6
10
Liability Disclaimer ................................................................................................................................. 6
11
Warranty Information 6...............................................................................................................................
12
California Prop 65 .................................................................................................................................... 8
1
Introduction
This instruction manual will take you step- -step through the process by of assembling and mounting
Ambient Weather WH31-SRS Temperature and Humidity Radiation Shield.
The WH31-SRS temperature and humidity radiation shields are low-cost solutions for protecting
temperature and relative humidity sensors. while the same time minimizing direct exposure sunlight. at to
The passive shield is shaped to allow natural air convection around the sensor so that the air temperature
inside the shield is a good representation of the outside air. The shield also provides protection from rain
and snow.
The WH31-SRS radiation shields t most temperature and humidity sensors sold Ambient Weather. by
The WH31-SRS are designed with a highly reective white surface reect the sun's direct radiation. The to
multi-plate design allows for maximum airow. The mounting arm can be mounted any vertical surface. to
Version 1.1 ©Copyright 2022, Ambient LLC. All Rights Reserved. Page 2
2
Part’s List
QTY
Item
1
WH31-SRS
1
WH31-SRS mounting arm
1
~ 1 (31mm) screw 7/32”
1
~ (10mm) screw 3/8”
1
SRS mounting arm attachment bracket. to
1
User manual
4
Mounting Screws
4
Wall mount anchors
4
5/16” (8mm) nut
4
~ 1 (50mm) screw. 31/32”
3
Dimensions
WH31-SRS Dimensions
Inner Dimensions (L x W) WH31-SRS: 6.125” x 2.75”
Bracket Dimensions (L x W x H): 7” x 2.125” x 1.75”
Version 1.1 ©Copyright 2022, Ambient LLC. All Rights Reserved. Page 3
4
Tools and Materials Needed
•
5/16” Wrench
•
Drill with 1/8” to for mount without anchors 9/64”
•
Drill with 1/4” to for mount with anchors 5/16”
5
Location Tips
•
The radiation shield must placed from large radiant heat sources, such sun exposed be away as
buildings.
•
The radiation shield should placed open area be in an to insure unrestricted air ow wind. or
•
Do install over not or near sprinklers. Continuous moisture may damage the temperature sensor.
6
Installation
Options
There are two dierent mounting congurations for the radiation shield:
•
Pole metal pipe with outside diameter between and 1 or 1” ¼”
•
On the side or top a wooden post of
7
Installation
Step 1. Attach the mounting arm attachment bracket the mounting arm. to
Horizontal Installation
Figure 1
Vertical Installation
Figure 2
