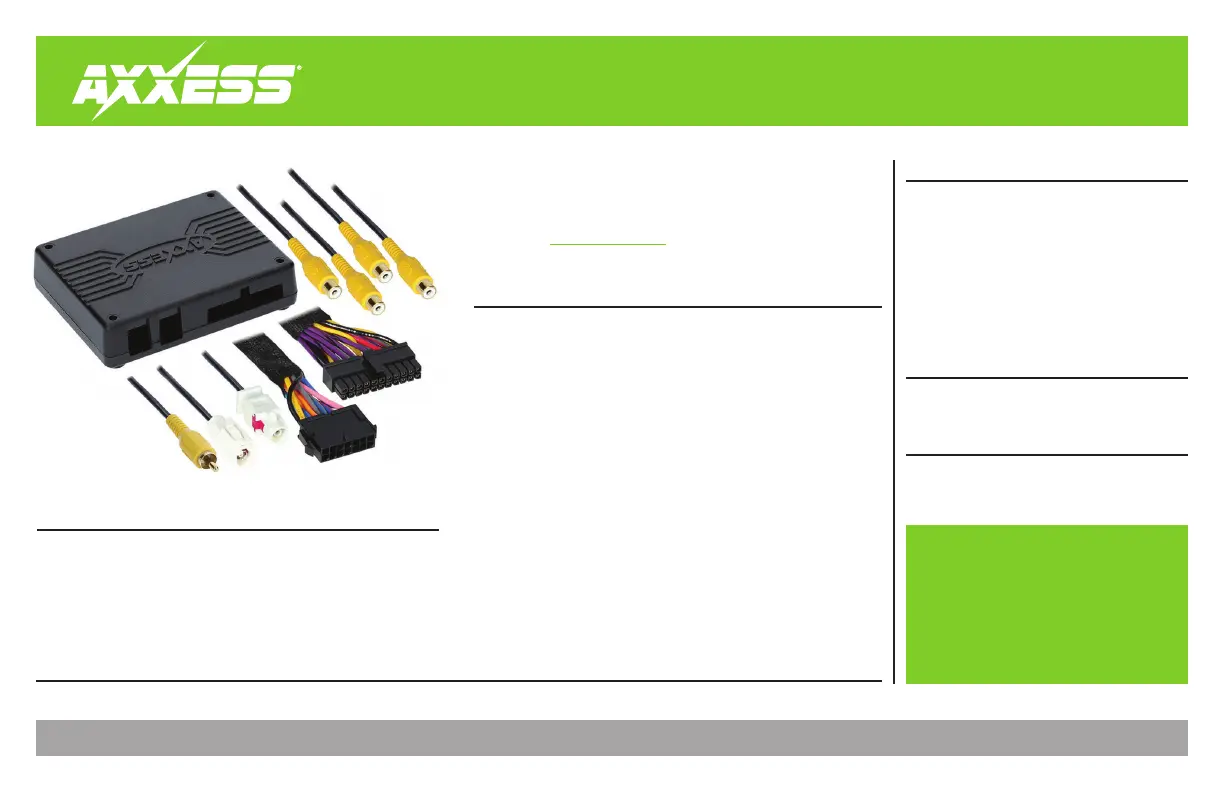

AXAC-CH7
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 7/9/25 INSTAXAC-CH7
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights,
are plugged in before reconnecting the battery or
cycling the ignition to test this product.
NOTE:
Refer also to the instructions included with
the aftermarket accessory before installing this device.
INTERFACE FEATURES
TOOLS REQUIRED
REQUIRED ITEMS
TABLE OF CONTENTS
Introduction ...........................................................2
Applications ...........................................................2
Configuration ..................................................... 2-4
Connections ............................................................5
Installation .............................................................6
Programming .........................................................7
Rebooting the U-Connect Radio ..........................7
• Add multiple CAN-activated cameras with 4 camera inputs
• Includes AXAC camera interface and vehicle-specific harness
• Programmable 12-volt 5-amp switched output (configured
through the Axxess Updater program)
• Reverse signal trigger generated via CAN bus communication
of the vehicle
•
Turn signal trigger generated via CAN bus communication of
the vehicle
• 1 programmable camera control wire (configured through the
Axxess Updater program)
• Can also be manually controlled and used along with an
aftermarket radio
• VSS (Vehicle Speed Sense) input and output
• Micro “B” USB updatable
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
• AXAC-CH7 interface
• AXAC-CH7 interface harness
• AXAC-CH7 vehicle harness
Update Cable: AXUSB-MCBL (sold separately)
Axxess Updater Program
Camera Data Interface w/Pre-Wired Harness
Fits Select Jeep/Ram Models 2018.5-2023
APPLICATIONS
(see page 2)
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications
INTERFACE COMPONENTS
2
CONFIGURATION
• Download and install the Axxess Updater available at: AxxessInterfaces.com
• Connect the AXUSB-MCBL update cable (sold separately) between the interface and the computer.
The cable will connect into the micro-B USB port in the interface.

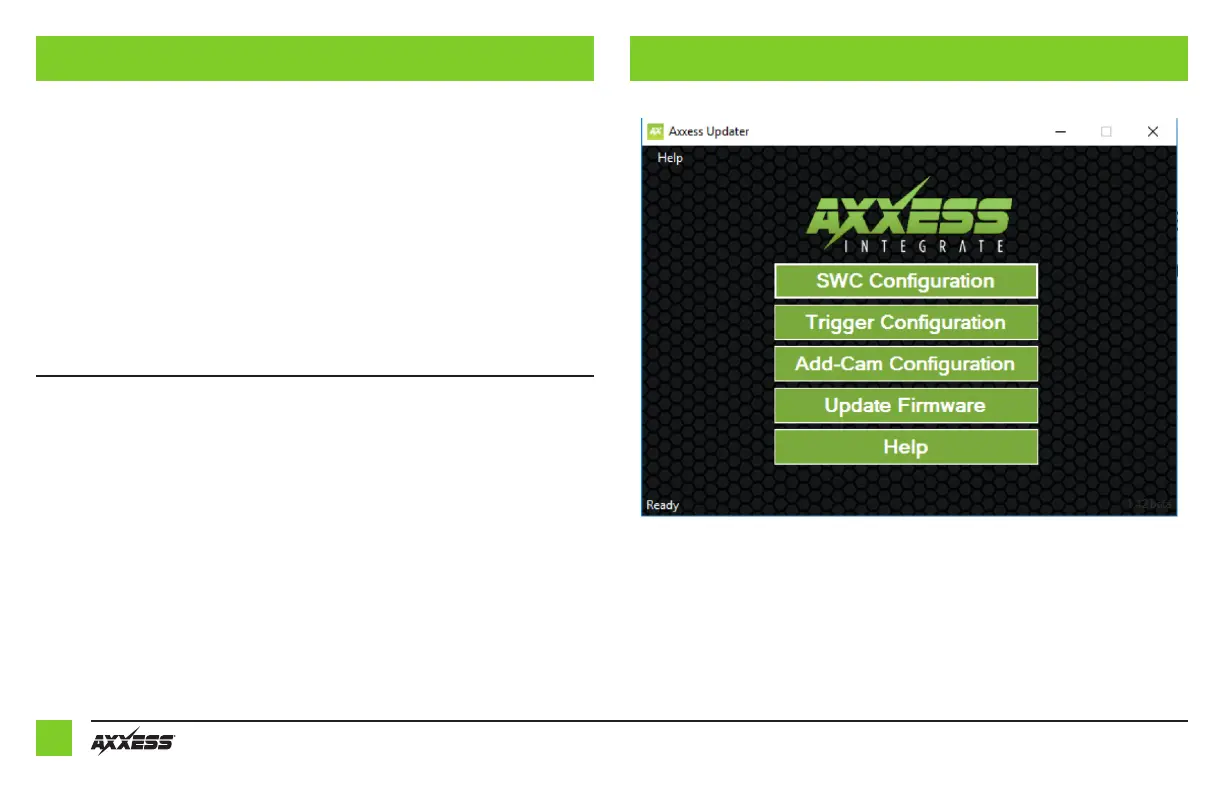

• Open the Axxess Updater and wait until the word Ready is listed in the bottom left of the screen.
• Select Add-Cam Configuration.
Continued on the next page
INTRODUCTION
The AXAC-CH7 is a camera switching interface that provides:
• A front camera, and/or side cameras that an be added to the factory radio.
• Up to (3) additional camera inputs to the factory radio, while still retaining the factory camera.
• Automatic camera function, no human interaction is required, unless desired.
• Up to (4) cameras, if the vehicle doesn’t come equipped with a backup camera.
Note: Axxess recommends cameras from the iBEAM product line for best results.
OEM CAMERA RETENTION
JEEP
Wrangler JL/JT ............................................................... 2018.5-2023
RAM
11500/2500/3500 Classic.................................................2019-2023
ADD CAMERAS TO FACTORY RADIO (w/uConnect Radio)
JEEP
Gladiator ............................................................................2020-2023
Wrangler JL .................................................................... 2018.5-2023
RAM
1500(DT) ............................................................................2019-2021
1500 Classic ..................................................................... 2019-2023
APPLICATIONS
