BLOW TORCH
78773
MICRO BUTANE
EN
Original Instructions
Version 2 – March 2023
1. Specication
2. HealthandSafetyWarnings
• Observe all standard safety precautions and good
practices when working with naked ames and
ammable fuels.
• Keep the work environment clear and well-lit, with
bystanders at a safe distance.
• Keep this product out of reach of children at all times.
• ALWAYS wear appropriate eye and face protection and
protective gloves when using this product.
• Check the torch for damaged, clogged or corroded parts
and leaks before every use.
− DO NOT use the product if it is damaged or leaking
in any way; contact Draper Tools for repair and
replacement options.
− If you suspect that the product is leaking gas, move
it to an external environment immediately.
Important: The product can be tested for leaks by
dabbing soapy water solution on joints and
connections while gas is added to or stored in the
product. Leaks will create a steady feed of soapy
bubbles at the breach point.
• Use ONLY in well-ventilated environments.
• DO NOT use this product in environments where paint
fumes, solvents and other ammable materials are
present.
• Use only good quality butane gas.
WARNING!Butanegasishighlyammable;handle
itcarefullyandinaccordancewiththe
instructions on the canister.
• During rst use, allow a few minutes for the product to
settle once ignited before directing it towards the
workpiece.
WARNING!Themetalpartsofthetorchbecome
veryhotduringuse.DONOTtouchthebarrelor
workpieceuntiltheyhavecooledthoroughly.
WARNING!Avoidcontactwithskin,clothingor
otherammablematerials.
• DO NOT leave the product running while unattended.
• DO NOT expose the product to temperatures above 49°C
(120°F) or to prolonged periods of sunlight.
• ALWAYS switch o the product while it is not in use and
ensure that the control lever remains in its lowest
position.
• After each use, ensure that the ame is fully
extinguished, the control lever is in its lowest position
and the product has completely cooled before storing.
• DO NOT attempt to disassemble or modify this tool in
any way.
• ALWAYS refuel outside.
• NEVER smoke while refuelling.
WARNING!Thisproductisnotinsulatedagainst
electricity.NEVERusethisproductonworkpieces
thatareconnectedtoelectricalpower.

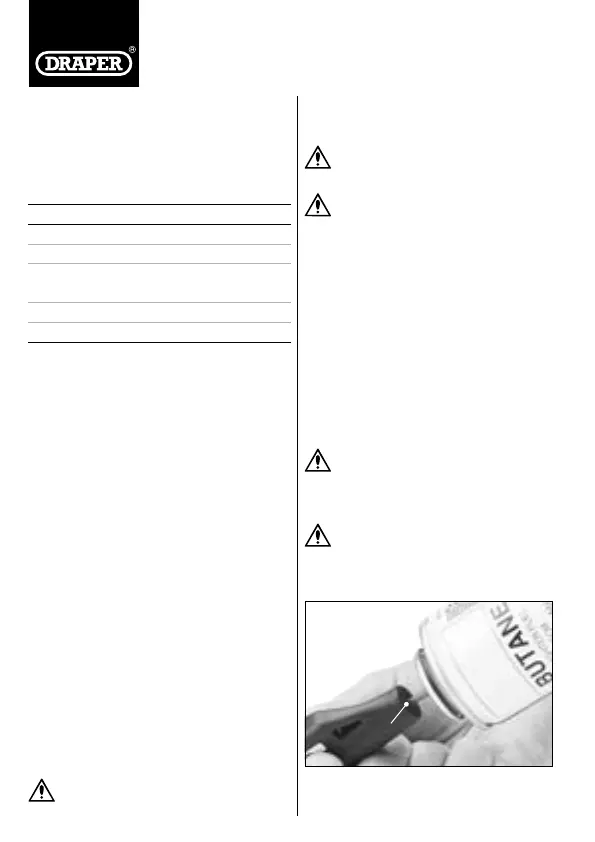

3. Refuelling
WARNING!Beforellingtheproduct,ALWAYS
ensurethatthecontrolleverisinitslowest
position.ONLYusebutanegastofueltheproduct.
Important: This product is not shipped with butane gas
and MUST be fuelled before use.
1 Fig.
(A)
1. Turn the torch upside-down and push the butane
can nozzle rmly into the lling valve (A).
Stock No. 78773
Part No. GT7
Fuel type Butane
Approx. temperature Up to 13,00°C
Operating time (one gas
lling)
20 mins approx. at mid
setting
Dimensions W 90 × H 35 × Ø 20mm
Weight (80% gas ll) 36g
Read this manual in full before using this product and
retain it for future use. Always use the latest version of the
manual. Please visit drapertools.com/manuals for the
latest version of this manual.
2. Filling begins automatically and takes only a few
seconds.
The fuel level can be viewed through the window (B)
beneath the control lever (C).
3. Allow a few minutes after lling for the gas in the
product to stabilise.
WARNING!Allowescapedgastodispersebefore
lightingthetorch.NEVERlighttheproductwhilea
gascanisterisinsertedintothellingvalve.

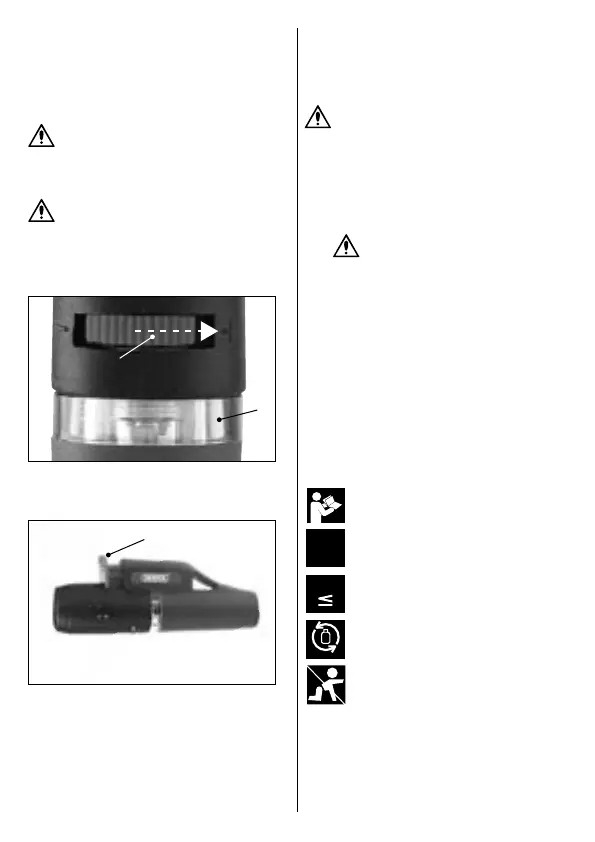

4. IgnitionandUse
WARNING!Keepyourhandsandfaceawayfrom
thebarrelwhenignitingandoperatingthe
product.Gripthetorchbythehandleonly.
1. Fuel the product and allow the gas to settle.
2. Move the control lever (C) to the + position to start
the fuel supply.
2 Fig.
(C)
(B)
3. Depress the ignition button (D) repeatedly until the
ame is lit.
3 Fig.
(D)
4. Adjust the size and temperature of the ame using
the control lever.
5. Allow the ame to settle, then direct it safely towards
the workpiece.
6. To switch o the product, move the control lever
fully to the – position. Allow the torch to cool
thoroughly.
Important: Avoid using the product in sideways or inverted
orientations as this may interrupt the ow of fuel to the
ame.
5. MaintenanceandDisposal
WARNING! ALWAYS ensure that the control lever
isintheOFFpositionandthatthetorchis
completelycoolbeforemaintainingorstoringthe
product.
• Keep the barrel clean and dry.
− Use a dry cloth ONLY to clean the barrel.
− Clean the soldering tip using a wet sponge while the
barrel is hot.
WARNING!Takecarenottotouchanypart
oftheheadassemblywhilethebarrelis
hot.
− DO NOT use solvents or other aggressive chemicals
to clean the product as they may damage plastic or
insulated parts.
• Keep the air vents of the barrel free from dust and
obstructions.
• Store the product in a clean, cool and dry location, out
of direct sunlight and out of reach of children.
At the end of its working life, dispose of the product
responsibly and in line with local regulations. Recycle
where possible. Exhaust the fuel before disposing of the
product and dispose of butane separately and responsibly.
6. ExplanationofSymbols
Read the instruction leaet
Max. potential operating time per refuel
Operating temperature
Rellable gas
Keep out of the reach of children
20
min
1300°C
REFILLABLE
