Sida 1/8

Bedienungsanleitung

Vers. 1.1 / 31.05.13

User Manual

EX-42372

RS-422/485 Board

EX-42372IS

RS-422/485 Board

Surge Protection & Optical Isolation

Deutsch Seriell RS-422/485 PCI Karte

Inhaltsverzeichnis

1. Beschreibung ··························································································· 3

2. Paketinhalt ······························································································· 3

3. Layout und Jumper Einstellungen ··························································· 4

3.1 Layout ······················································································································· 4

3.2 Octopus-Kabel ··········································································································· 4

3.3 Jumper Einstellungen ································································································ 5

4. Hardware Installation ··············································································· 6

5. Treiber Installation ··················································································· 7

5.1 Windows 98/ ME/ 2000/ XP/ Vista/ 7/ 8 und Server 200x ·········································· 7

5.2 Windows NT 4.0 ······································································································· 7

6. Verdrahtungsübersicht ············································································· 8

6.1 S1 und S2 Anschlussbelegung ················································································· 8

6.2 RS-485 (2 Draht) Verkabelung ················································································· 8

6.3 RS-422 (4 Draht) Verkabelung ················································································· 8

7. Technische Daten ···················································································· 8

Index

1. Description ······························································································· 9

2. Packet Content ························································································ 9

3. Layout and Jumper setting ···································································· 10

3.1 Layout ····················································································································· 10

3.2 Octopus cable·········································································································· 10

3.3 Jumper Setting ········································································································ 11

4. Hardware Installation ············································································· 12

5. Driver Installation ··················································································· 13

5.1 Windows 98/ ME/ 2000/ XP/ Vista/ 7/ 8 and Server 200x ········································ 13

5.2 Windows NT 4.0 ····································································································· 13

6. Pin Assignments and Cable Wiring ······················································· 14

6.1 S1 and S2 Pin Assignments ···················································································· 14

6.2 RS-485 (2-Wire) Wiring ·························································································· 14

6.3 RS-422 (4-Wire) Wiring ·························································································· 14

7. Technical Specification ·········································································· 14

English Seriell RS-422/485 PCI Board

TXD(-) Pin 1

TXD(+) Pin 2

RXD(+) Pin 3

RXD(-) Pin 4

Ground Pin 5

Pin 1 TX(-)

Pin 2 TX(+)

Pin 3 RX(+)

Pin 4 RX(-)

Pin 5 Ground

6.3 RS-425 (4-wire) Cable Wiring

7. Technical Specication

Power requirements: 5V DC, 450mA (max)

Operating temperature: 0

to 55

C (32

to 131

Operating humidity: 5% to 95% RH

RS-422/485 PCI card

RS-485 Device

RS-422/485 PCI card

DATA(-) Pin 1

DATA(+) Pin 2

Ground Pin 5

RS-485 Device

6.2 RS-485 (2-wire) Cable Wiring

Pin 1 DATA (-)

Pin 2 DATA (+)

Pin 5 Ground

6.1 S1 and S2 Pin connection

DB 9M

Pin Signal Pin Signal Pin Signal

1 TXD- (DATA-) 4 RXD- 7

2 TXD+ (DATA+) 5 GND 8

3 RXD+ 6 9

9 Pin D-SUB male connector (S1 and S2)

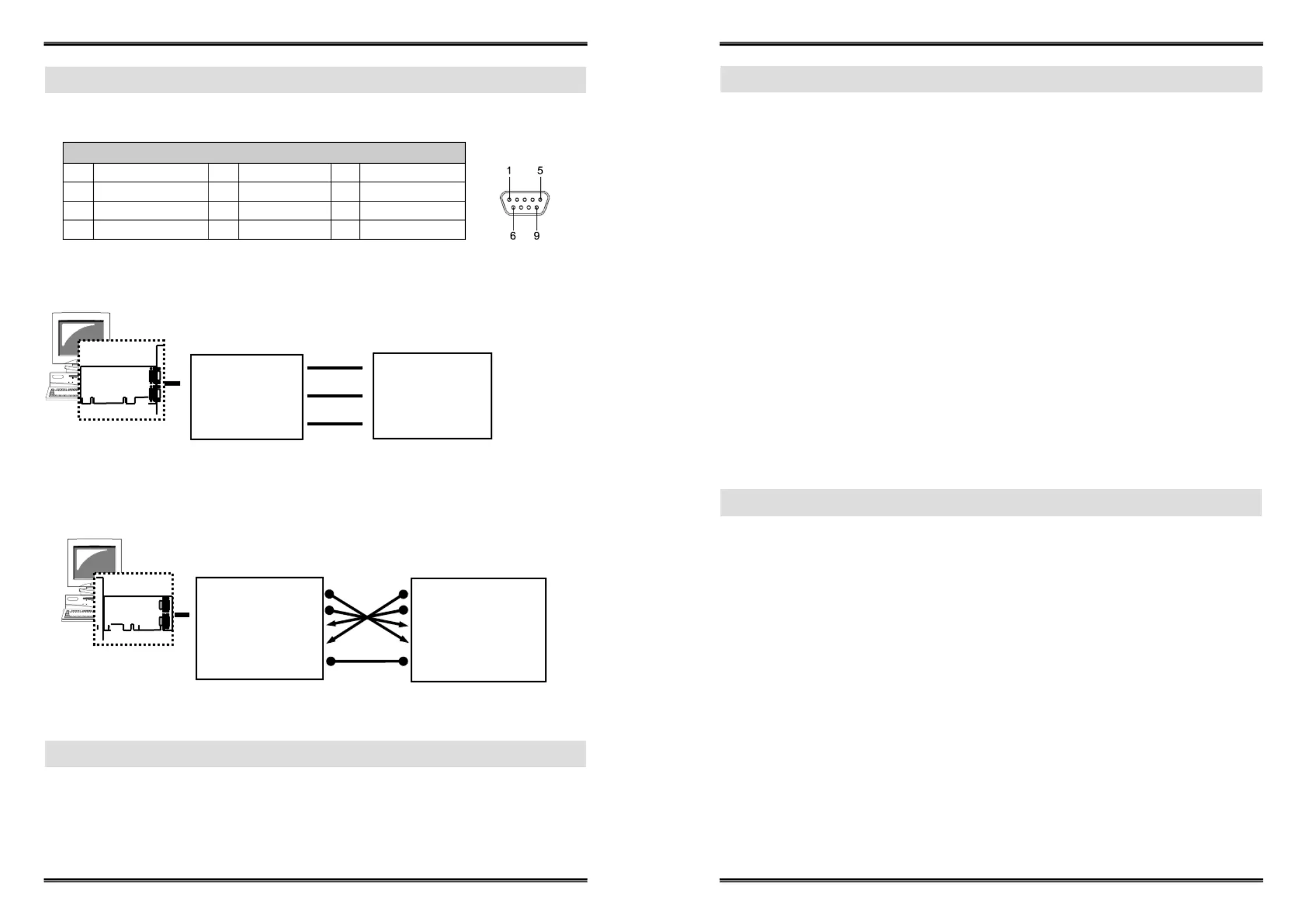

6. Pin Assignments and Cable Wiring

Seriell RS-422/485 PCI Karte Deutsch

Vielen Dank das Sie sich für die RS-422/485 PCI Karte von EXSYS entschieden haben.

Sie ist eine Add-On Karte für den PCI-Bus für Desktop, Workstation oder Server um

eine High-Speed Datenübertragung herzustellen. Die Seriellen Ports sind kompatible

mit dem RS-422/485 Standard. Jeder Ausgang kann individuell als RS-485 mit 2 Draht,

RS-485 mit 4 Draht oder RS-422 konfiguriert werden.

Merkmale:

Merkmale:Merkmale:

Merkmale:

•

Unterstützt PCI Bus Spezifikation 3.0 und Power Management 1.1

•

128-byte On-Chip FIFO und Arbitrary Trigger Levels und Interrupts, Automatische

Hardware/Software Flow Control

•

Bis 921.6 Kbps Baud Rate

•

5,6,7,8,9-bits Data Framing

•

Unterstützt Echo Mode

•

Universal PCI kompatibel für 3.3/5V PCI und PCI-X Bus

•

15KV ESD Surge Protection und 2500Vrms Optical Isolation Protection

(nur für EX-42372IS)

•

Unterstützt Win98/ME, NT4.0, 2000, XP(32/64bit),Vista(32/64bit)

Win7(32/64bit), Win8(32/64bit) und Linux

1. Beschreibung

2. Packetinhalt

Bevor Sie die RS-422/485 PCI Karte in Ihren PC installieren, überprüfen Sie den Inhalt

der Lieferung :

•

1 x RS-422/485 Seriell PCI Karte

•

1 x Octopus Kabel mit 2 x 9 Pin Seriell Stecker

•

1 x LowProfile Bügel für schmale PC Gehäuse

•

1 x Treiber CD

•

1 x Bedienungsanleitung

•

Optional erhältlich 5 Pin Terminal Block (EX-47999)

Produktspecifikationer

Varumärke:	EXSYS
Kategori:	ej kategoriserat
Modell:	EX-42372IS
Värdgränssnitt:	PCI
Serveroperativsystem som stöds:	Windows Server 2003, Windows Server 2008
Seriellt gränssnitt:	RS-422/485
Windows-operativsystem som stöds:	Windows 2000, Windows 7 Ultimate, Windows ME, Windows Vista Ultimate, Windows XP Professional
Temperatur vid drift:	0 - 55 ° C
Intervall för relativ operativ luftfuktighet:	5 - 95 %
Anslutningsteknologi:	Kabel
Intern:	Ja
Antal anslutningar:	2
Omgivningstemperatur vid drift:	32 - 131 ° F
Utgränssnittet:	Serial
Anslutning:	9-stift
