EX-47925

RS- -232 to RS 232 Isolator

1. Introduction

Thank you for purchasing this RS232 (to RS232) Isolator and Surge Protector. It is designed for

your PC, workstation, thin client, or server to provide an instant isolation solution for the RS232

serial devices. It provides a DB9 female connector (DCE, with standard RS232 signals, TXD,

RXD, RTS, CTS, DTR, DSR, DCD and GND) that can be connected directly to your PC s RS232 ’

port. An external 5V DC power source should be applied to its input DC jack. The power source

can be supplied by either an AC power adapter or an USB Jack conversion cable.-to-DC-

Features:

 Provides one RS232 to RS232 Adaption

 Supports up to 2,500Vrms Isolation for all RS232 Signals

 Supports all RS232 Signals (TXD, RXD, RTS, CTS, DTR, DSR , DCD, and GND)

 Supports DB9 Female (DCE) to DB9 Male (DTE) Connector Conversion

 Supports Baud Rate up to 921.6 Kbps

 +5V DC External Power is Required, Powered by AC Adapter or USB Port with an USB-to-

DC-Jack Cable

 Compact Size for Critical Applications

 No Driver Required for All Operating Systems

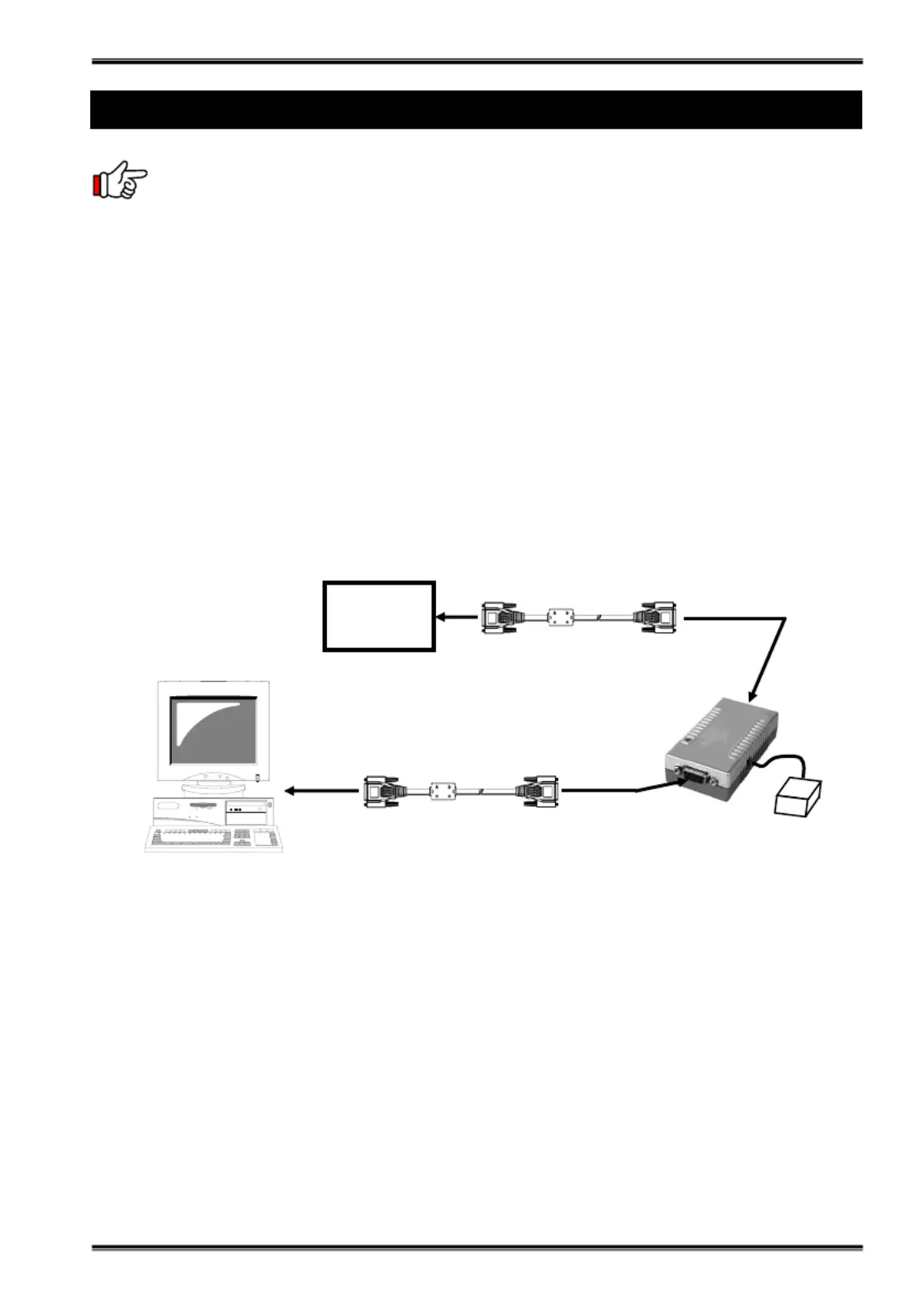

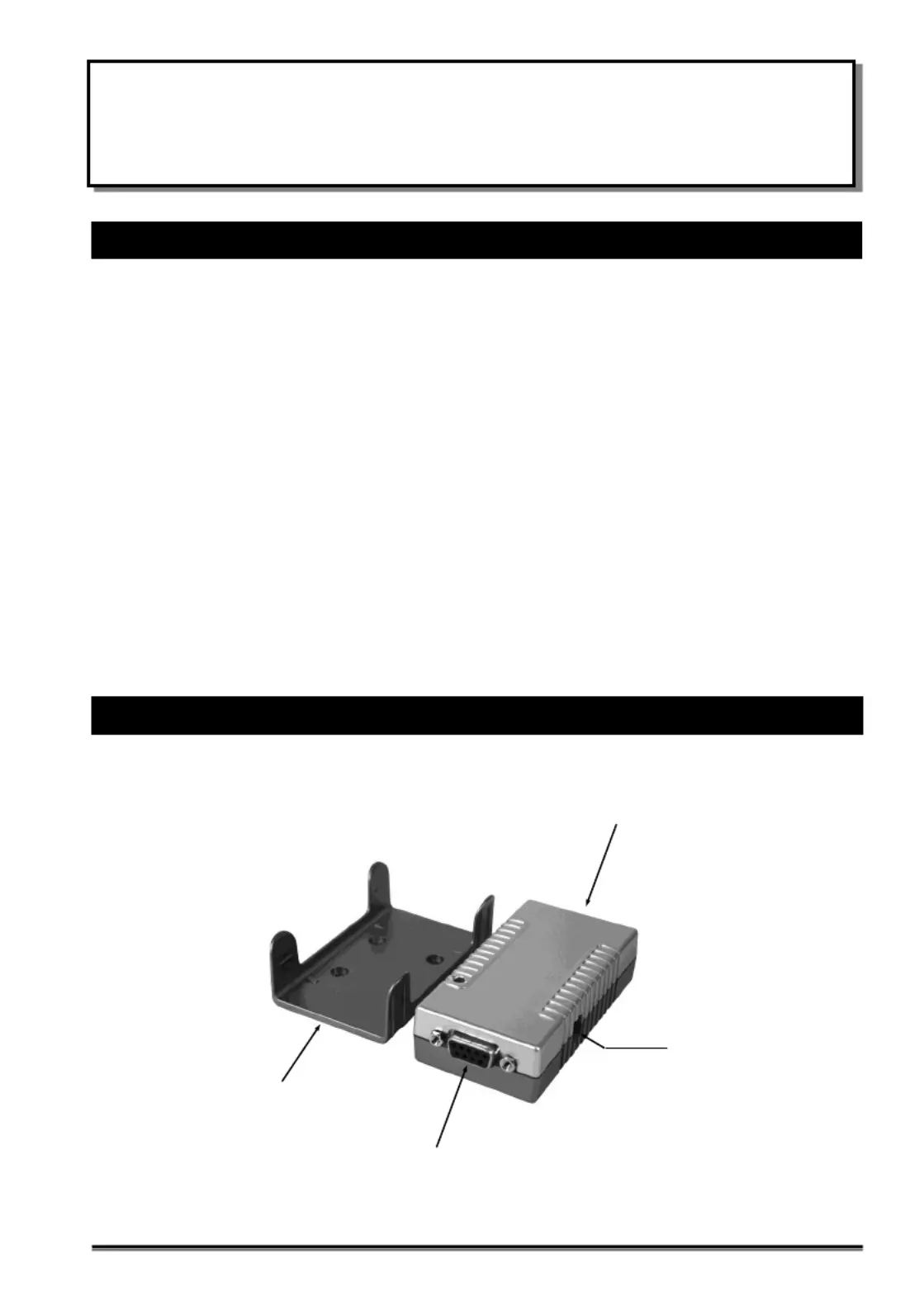

2. Board Layout

DC Jack:

5V DC Power

Input here

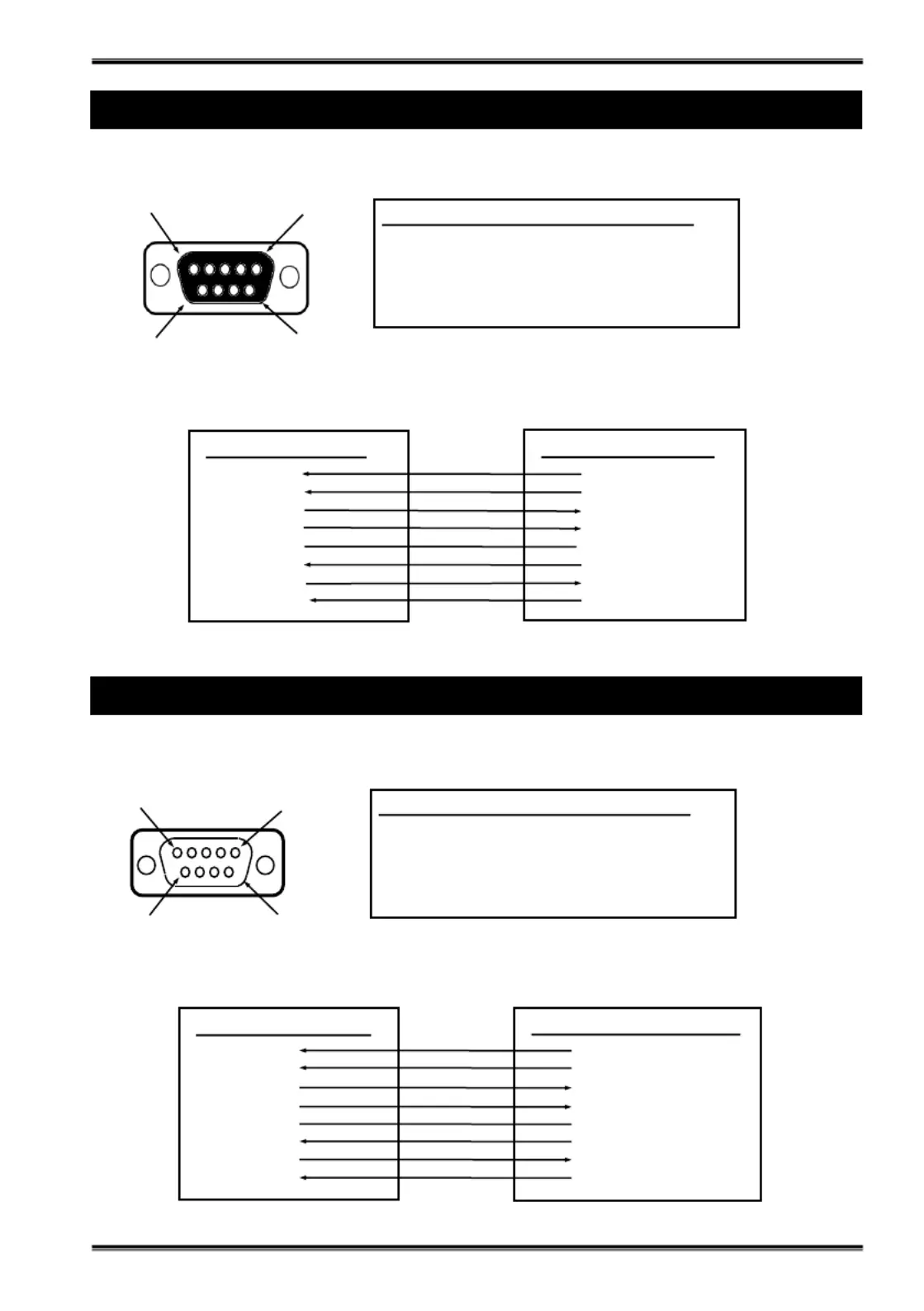

Female DB9 Connector (DCE)

Wall mounting Kit

Rear Panel:

Male DB9 Connector (DTE
