Sida 1/9

BHM

12/12/16

NTV-DOC277

Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for :

misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is

intended for off-road use and passenger entertainment only.

1 | P a g e

3950 NW 120th Ave, Coral Springs, FL 33 TEL 561-955-9770 FAX 561-955-9760 065

www.nav-tv.com info@nav-tv.com

AUDI-P60

NTV-KIT 790

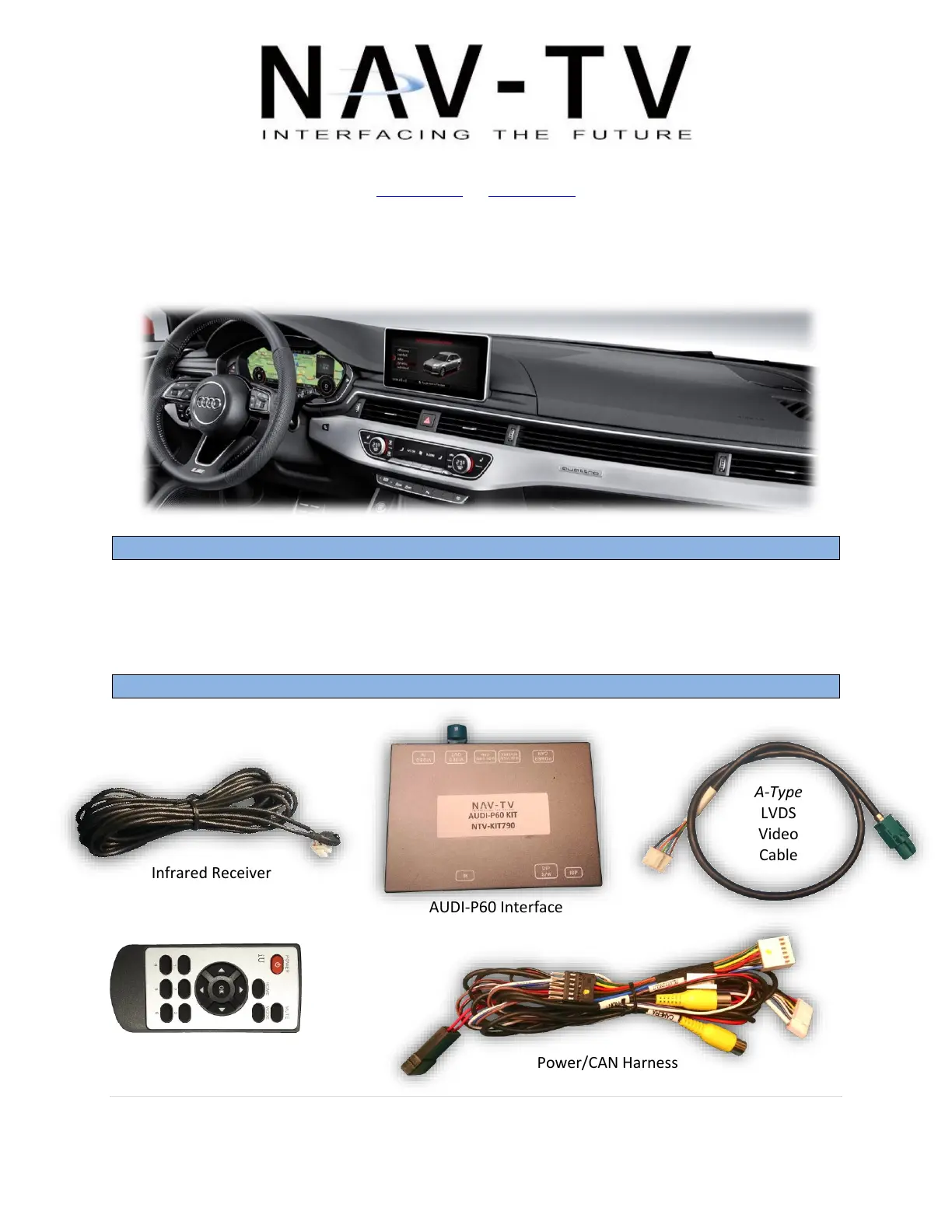

Overview

The Ki interfaces a backup camera input (with acve parking lines) & 1 addional AUDI-P60 t

composite video to the factory media screen in the 2017 Audi Q7, TT or R8 vehicles with in A4,

the (MIB2) MMI system Installaon is performed behind the module (inside glove box). . MMI

Kit Contents

Infrared Receiver

OSD Menu Remote

Power/CAN Harness

A-Type

LVDS

Video

Cable

AUDI-P60 Interface

BHM

12/12/16

NTV-DOC277

Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for :

misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is

intended for off-road use and passenger entertainment only.

2 | P a g e

Interface Connectors

Dip Switch Sengs

Dip SW:

N/A

OEM RVC

N/A

Keep Down

DOWN

N/A

ADDING RVC

N/A

Keep Down

Power/CAN Harness

Dip Switches

Note: Remove power to the unit prior to

making adjustments to the dip switches

Video OUT (to screen)

Video IN (from radio)

IR Receiver

- NOT USED -

Video expansion board

BHM

12/12/16

NTV-DOC277

Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for :

misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is

intended for off-road use and passenger entertainment only.

3 | P a g e

AUDI-P60 Installaon

1. Remove the MMI module located in glove box this will require an 8mm socket and –

possibly a right-angle driver. Disconnect any associated

harnesses and set the MMI radio aside.

2. G the provided from the rab ‘Power/CAN Harness’

AUDI-P60 kit. Connect the following wires to the car:

3. Locate the factory , 4-pin round PINK ( )For AUDI’s with NAV, this connector is GRAY

connector that was removed from the radio

in step 1. Connect this factory plug to the

AUDI-P60 interface at the port labeled

‘ ’VIDEO OUT .*

4. Connect the smaller white plug

side of the provided LVDS

Video Cable to the port on

the AUDI- interface P60

labeled ‘ ’VIDEO-IN .

5. Connect the free end of the provided (green) back to the factory radio LVDS Video Cable

at the appropriate port .

Interface wires

Connect to car

Locaon

Black (Ground)

Chassis Ground

PIN 15 (Radio plug)

Red (ACC 12v)

ACC 12v (+)

Black/White or Black/Blue

@ pass fuse box
