Sida 1/9

BHM

10/18/18

NTV-DOC245

Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for

misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is

intended for off-road use and passenger entertainment only.

1 | P a g e

3950 NW 120

Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760

www.nav-tv.com info@nav-tv.com

W205-N RVC

NTV-KIT703

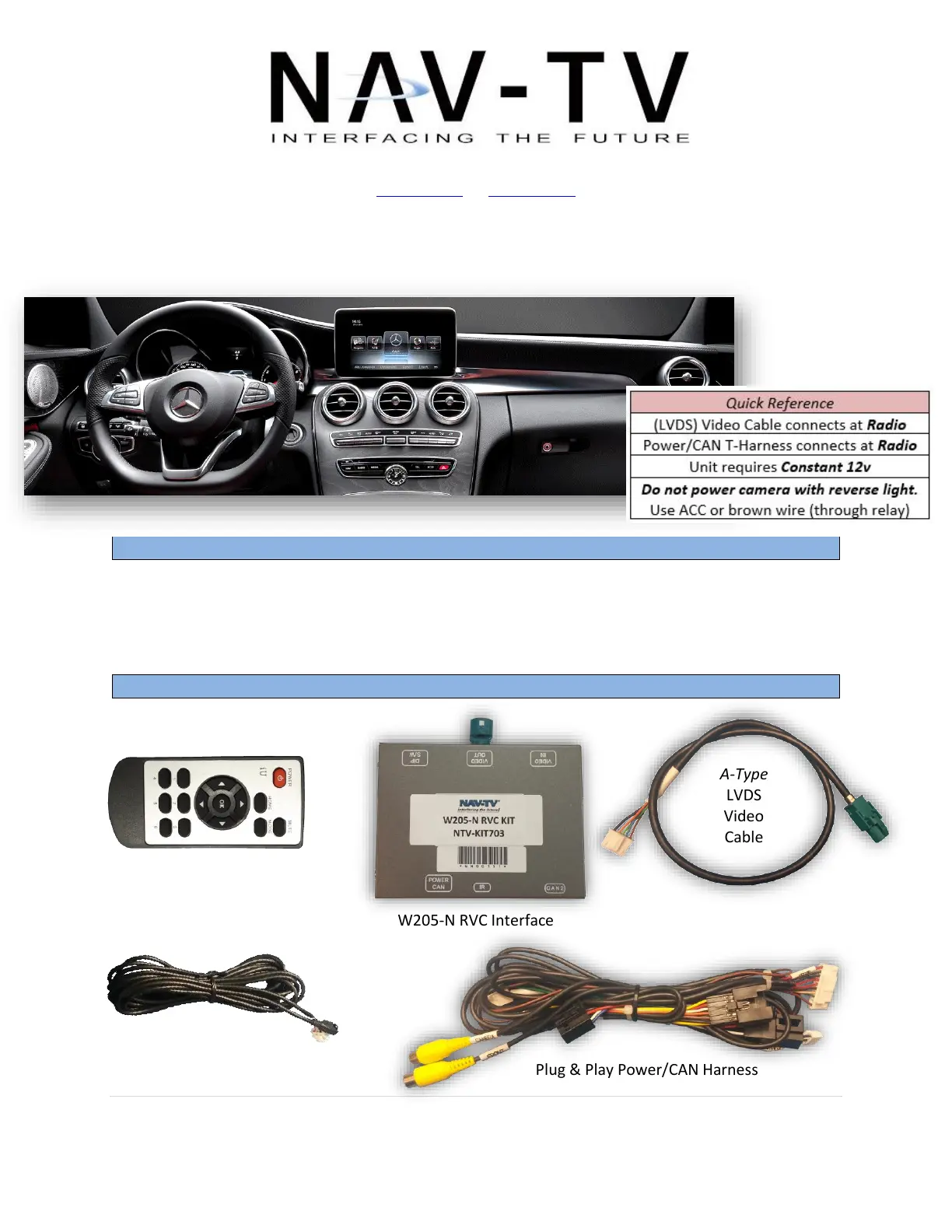

Overview

The W205-N RVC Kit interfaces a backup camera input (with active parking lines) and 1 front

camera to the factory media screen in select 2015 Mercedes vehicles with the new

infotainment system.

Kit Contents

Plug & Play Power/CAN Harness

A-Type

LVDS

Video

Cable

W205-N RVC Interface

OSD Menu remote

IR Eye

BHM

10/18/18

NTV-DOC245

Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for

misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is

intended for off-road use and passenger entertainment only.

2 | P a g e

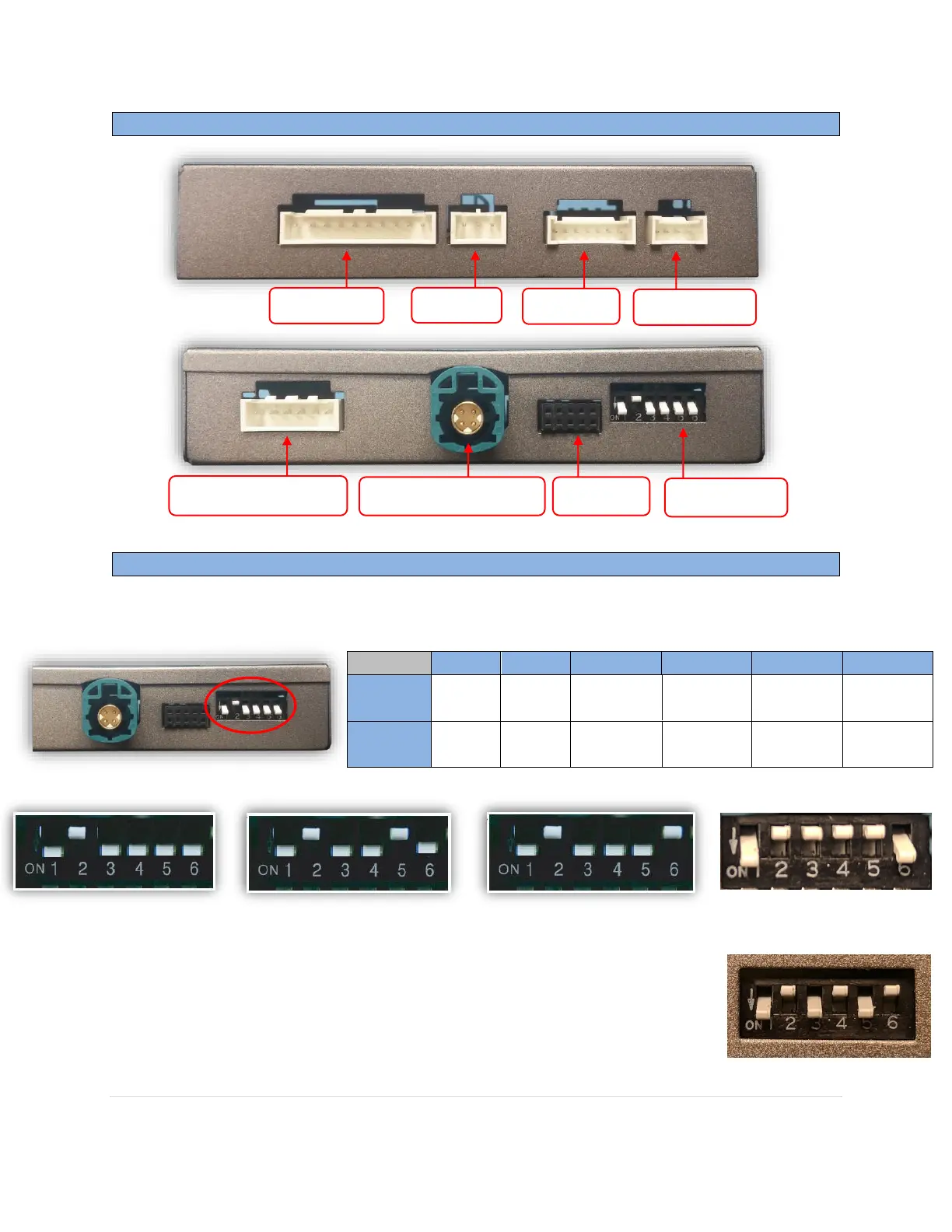

Interface Connectors

Dip Switch Settings

DIP SW

KEEP

DOWN

KEEP

OEM

CAM

VEH

TYPE

DOWN

KEEP

DOWN

KEEP

Adding

CAM

VEH

TYPE

C-Class with 7” Screen

C-Class with 8.4” Screen

2015 CLS, CLA, B

& E-Class

Note: Remove power to the unit prior to

making adjustments to the dip switches.

Power/CAN

OUOUT

Video IN (from radio)

IR Eye

Not Used

CAN 2 Input

Video OUT (to screen)

Not Used

Dip Switches

C-Class

ONLY

NOT

C-Class

High

RES

Low

RES

2016+ SLC

2015 SL400, 7"

BHM

10/18/18

NTV-DOC245

Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for

misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is

intended for off-road use and passenger entertainment only.

3 | P a g e

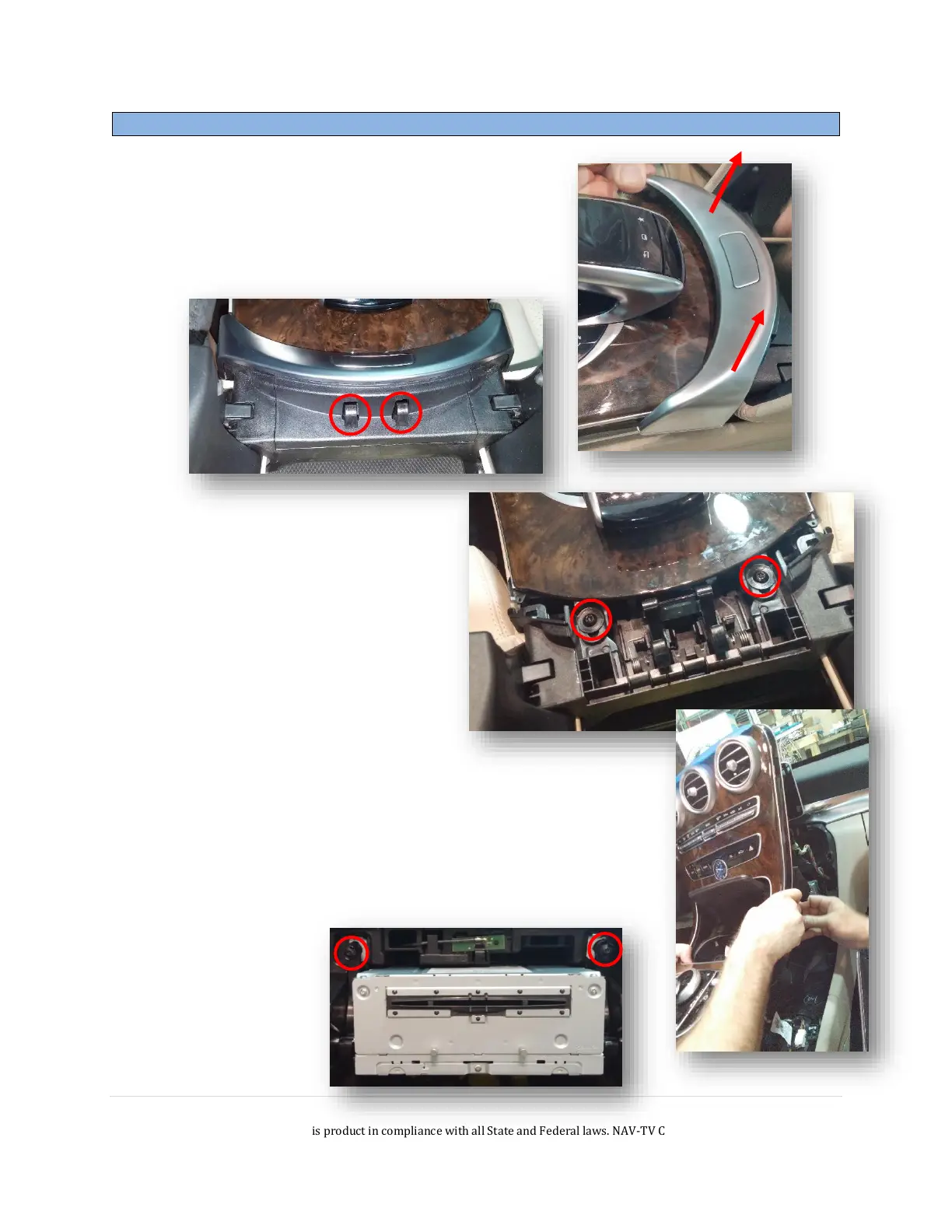

Dash Removal (’15 C-Class)

1. Use a plastic tool to remove the silver trim

behind the COMAND touchpad controller. You

will have to open the center console and press

the arm rest locks forwards for clearance:

2. Remove (2x) Torx 20 screws hidden

beneath the silver trim piece in

step 1:

3. Lift up the entire dash panel to just beneath the screen and

disconnect all (6) plugs. Set the dash panel aside in a safe

place.

4. Unscrew (2x) Torx 20 screws securing the radio to the sub

dash. These screws are not designed to be removed from the

radio clamps.

5. Remove the radio

by pulling it towards

you.
