Sida 1/9

BHM

12/12/16

NTV-DOC276

Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for

misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is

intended for off-road use and passenger entertainment only.

1 | P a g e

3950 NW 120

Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760

www.nav-tv.com info@nav-tv.com

AUDI-VC

NTV-KIT789

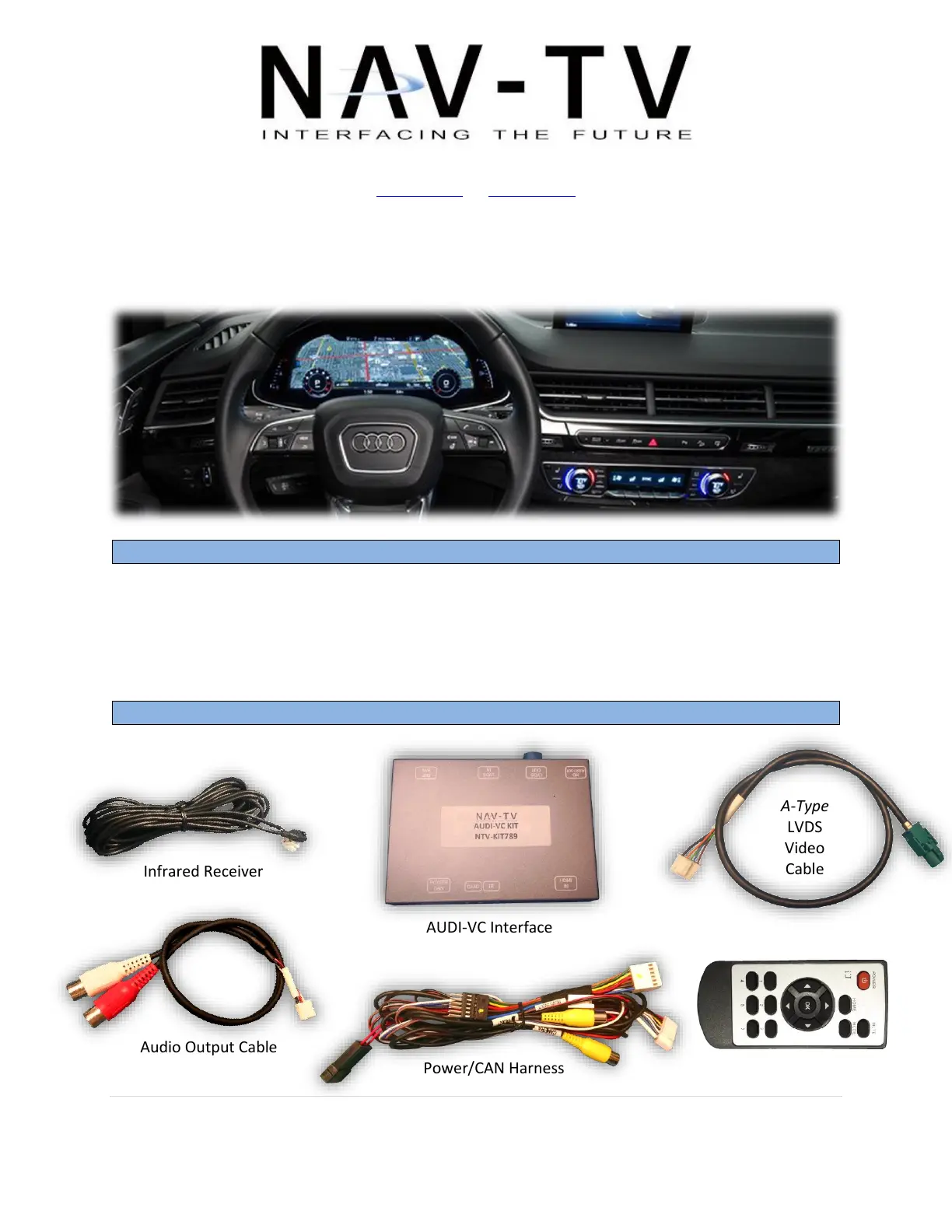

Overview

The AUDI-VC Kit interfaces a backup camera input (with active parking lines), 1 additional

composite video input and an HDMI source into the Virtual Cockpit cluster screen equipped in

select 2017 Audi A4, Q7, TT or R8 vehicles. Installation is performed behind the radio (inside

glove box).

Kit Contents

Infrared Receiver

OSD Menu Remote

Power/CAN Harness

A-Type

LVDS

Video

Cable

AUDI-VC Interface

Audio Output Cable

BHM

12/12/16

NTV-DOC276

Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for

misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is

intended for off-road use and passenger entertainment only.

2 | P a g e

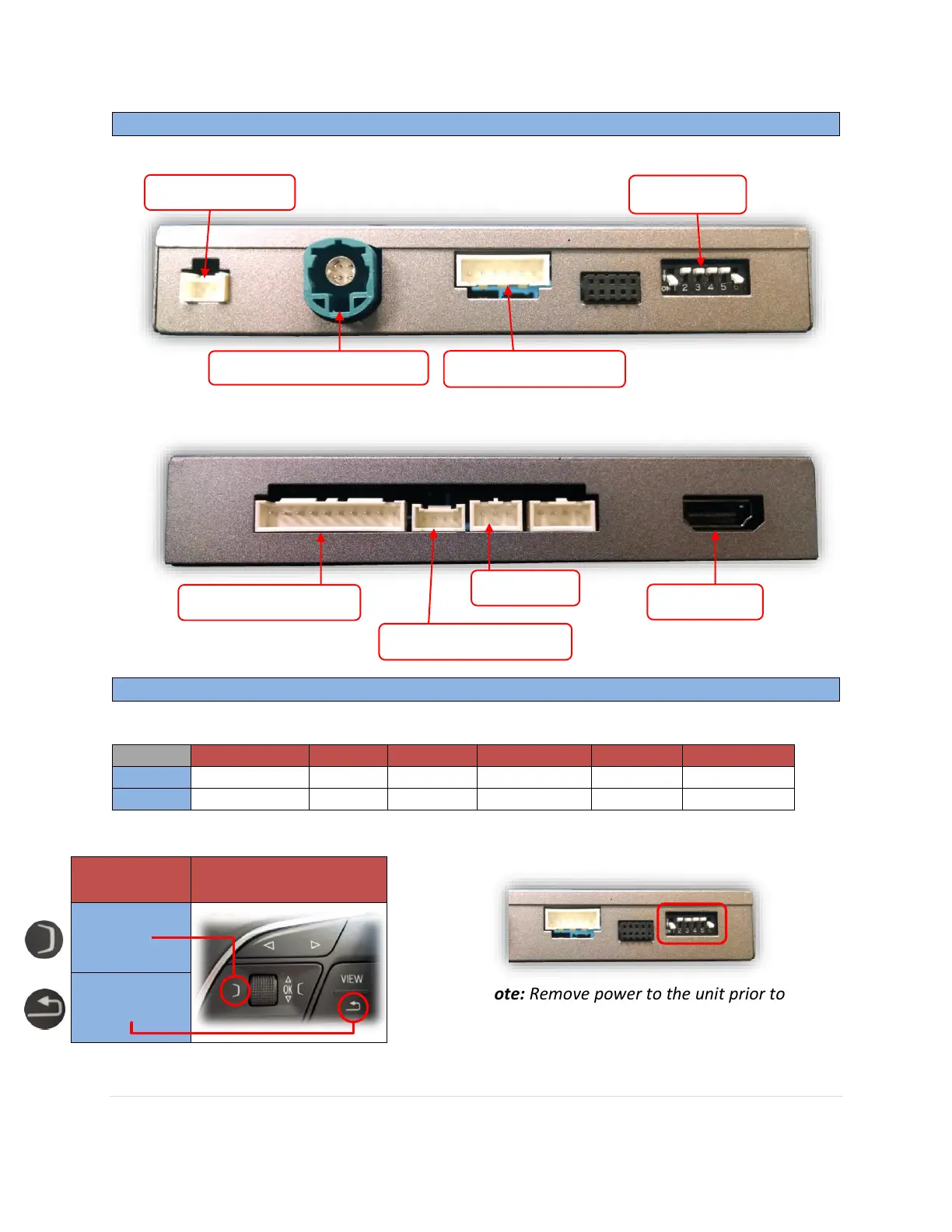

Interface Connectors

Dip Switch Settings

Dip SW:

4 (trans)

No HDMI

A4 / Q7

See below

AUTOMATIC

Leave UP

Leave Down

DOWN

Adding HDMI

See below

MANUAL

Leave UP

Leave Down

Dip Switch 3

HDMI Activation choice

(steering wheel)

DOWN

Power/CAN Harness

Video Trigger (optional)

Dip Switches

Note: Remove power to the unit prior to

making adjustments to the dip switches

Video OUT (to cluster LCD)

HDMI Audio OUT

HDMI Input

IR Receiver

Video IN (from radio)

BHM

12/12/16

NTV-DOC276

Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for

misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is

intended for off-road use and passenger entertainment only.

3 | P a g e

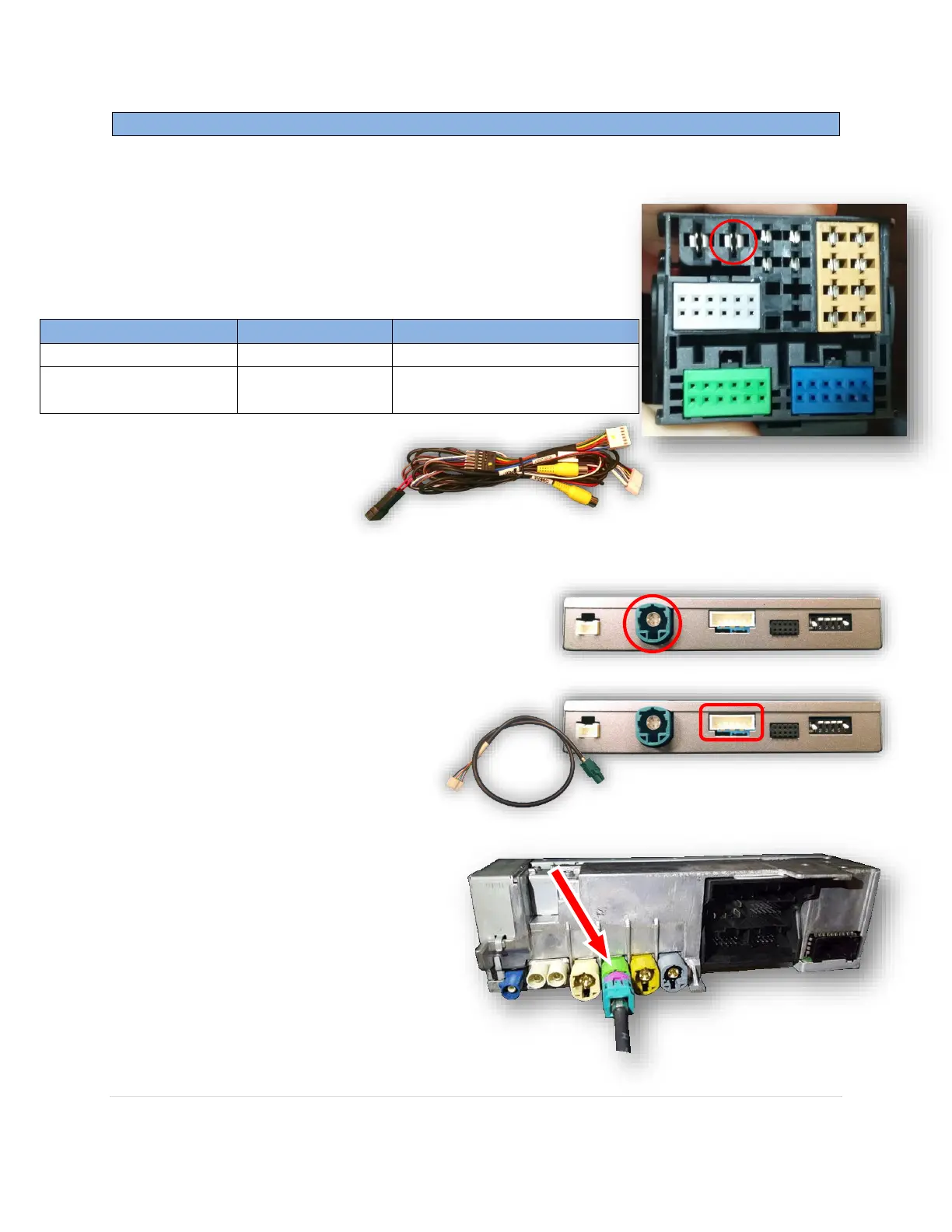

AUDI-VC Installation

1. Remove the MIB radio module located in glove box – this will require an 8mm socket and

possibly a right-angle driver. Disconnect any associated

harnesses and set the radio aside.

2. Grab the provided ‘Power/CAN Harness’ from the

AUDI-VC kit. Connect the following wires to the car:

3. Locate the factory Pink (For AUDI’s with NAV, this connector is GRAY), 4-pin round

connector that was removed from the radio in

step 1. Connect this factory plug to the AUDI-VC

interface at the port labeled ‘LVDS OUT’.*

4. Connect the smaller white plug side of the

provided LVDS Video Cable to the

port on the AUDI-VC interface

labeled ‘LVDS IN’.

5. Connect the free end of the

provided LVDS Video Cable (green)

back to the factory radio at the

bright GREEN cluster LCD port.

Interface wires

Connect to car

Location

Black (Ground)

Chassis Ground

PIN 15 (Radio plug)

Red (ACC 12v)

ACC 12v (+)

Black/White or Black/Blue @

pass fuse box
