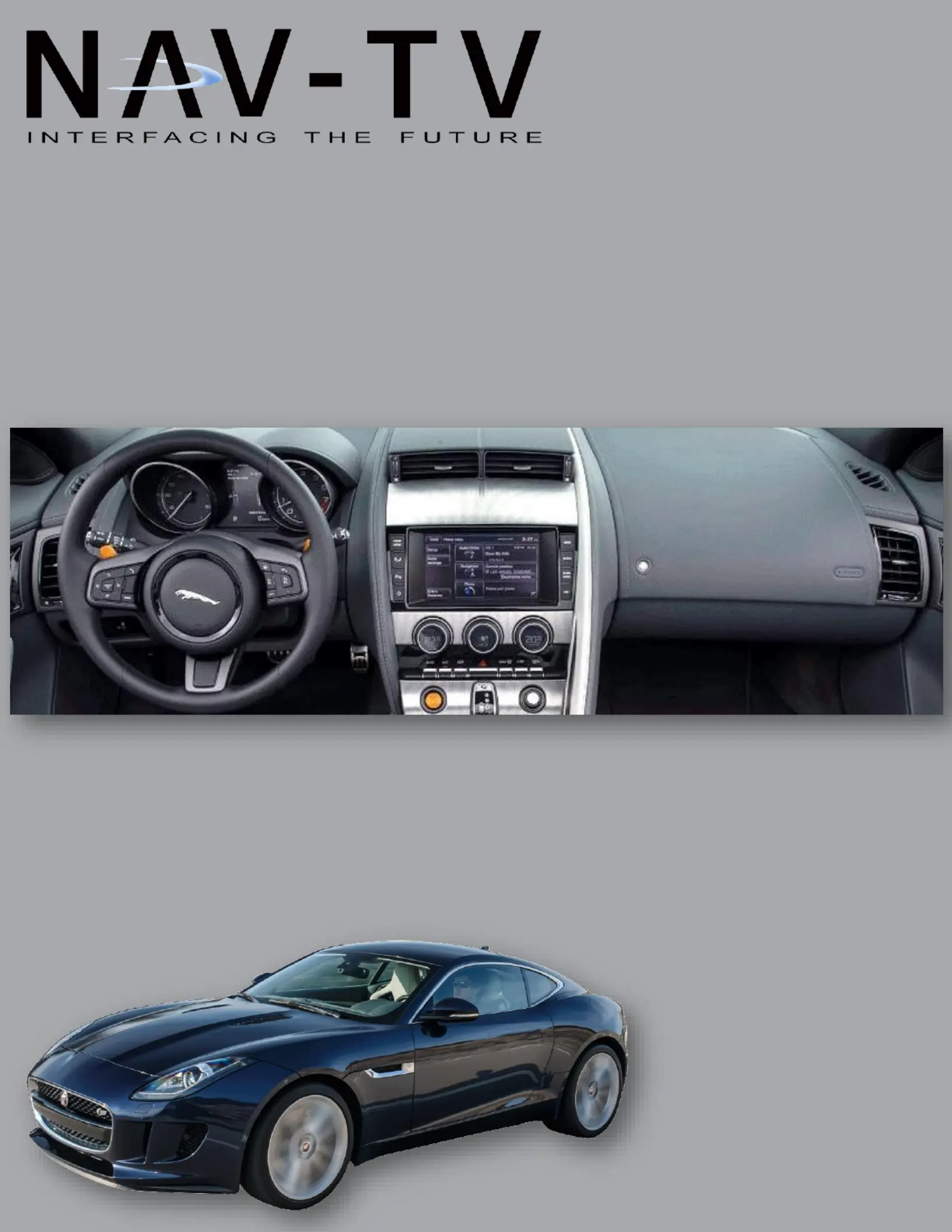

Jaguar F-TYPE CAM

Dual Camera interface for Jaguar vehicles select ’14+

NTV-KIT589

BHM

07 07/ /15

NTV-DOC207

3950 NW 120th Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760

BHM

07/07/15

NTV-DOC207

Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. :

If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger

entertainment only.

2 | P a g e

Overview

Jaguar F-TY CAM interfaces 2 cameras (front & rear) and enables video and navigaon control in moon (if PE

equipped). Forcing either camera to display is acvated via the factory touch screen or oponal wired inputs.

This interface is currently only compable with the 14+ F-Type. 20

Kit Contents

F-TYPE CAM Pinouts

PIN #

Descripon

Color

12v (+) constant input

Yellow

Input 1 (+): force rear camera

Red

Input 2 (+): force front camera

Blue

VIDEO OUT RCA

Yellow

RCA Shield

Black

CAN HI (Radio Side)

White/Green

CAN HI (Car Side)

White/Brown

Ground (-)

Black

Output 1 ACC (+)

White/Red

Output 2 REVERSE (+)

White/Blue

Front RCA Video IN

Red

Rear RCA Video IN

White

CAN LO (Radio Side)

Green

CAN LO (Car Side)

Brown

F- CAM Module TYPE

NTV-ASY166

Plug & Play T-Harness

NTV-HAR269

SMB-RCA

Adapter

NTV-CAB007

USB Cable (updates)

NTV-CAB009

Wire side

FAKRA-RCA

Adapter

NTV-CAB083

BHM

07/07/15

NTV-DOC207

Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. :

If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger

entertainment only.

3 | P a g e

Dash Removal (F-Type)

1. Using a plasc tool, pry up the plasc trim

surrounding the shier. It is secured with clips

only.

2. Disconnect the cigaree lighter plug and the push buon ignion switch plug. It helps to remove the

push buon ignion switch and reconnect it to the plug (for tesng).
