AUDI-P60H
NTV-KIT788
Overview
The AUDI-P60H Kit interfaces a backup camera input (with active parking lines), 1 additional
composite video input and an HDMI source into the factory media screen in the 2017 Audi A4,
Q7, TT or R8 vehicles with the brand new (MIB2) MMI system. Installation is performed behind
the MMI module (inside glove box).

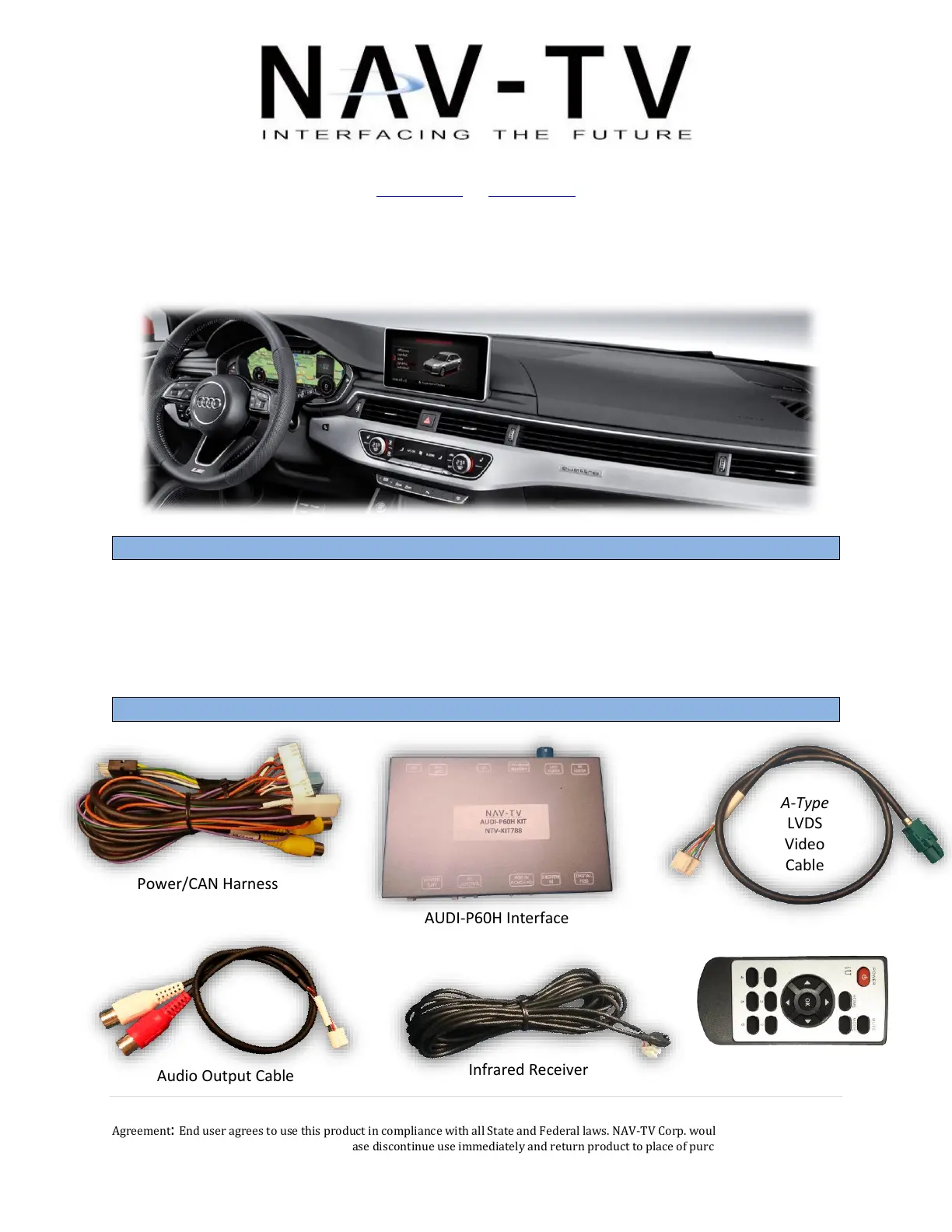

Kit Contents
Infrared Receiver
OSD Menu Remote
Power/CAN Harness
A-Type
LVDS
Video
Cable
AUDI-P60H Interface
Audio Output Cable
BHM
12/12/16
NTV-DOC275
Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
2 | P a g e
Interface Connectors
Dip Switch Settings
Dip SW:
1
2
3
4
5
6
7
8
UP
No NAV
N/A
N/A
OEM RVC
N/A
N/A
HIGH RES
Keep DOWN
DOWN
Adding NAV
N/A
N/A
ADDING RVC
N/A
N/A
LOW RES
Keep DOWN
Power/CAN Harness
Video Expansion Board
Dip Switches
Note: Remove power to the unit prior to
making adjustments to the dip switches
Video OUT
(to screen)
Video IN (from radio)
IR Receiver
RGB IN
HDMI Audio OUT
HDMI Input
Digital RGB (for adding NAV)
BHM
12/12/16
NTV-DOC275
Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
3 | P a g e

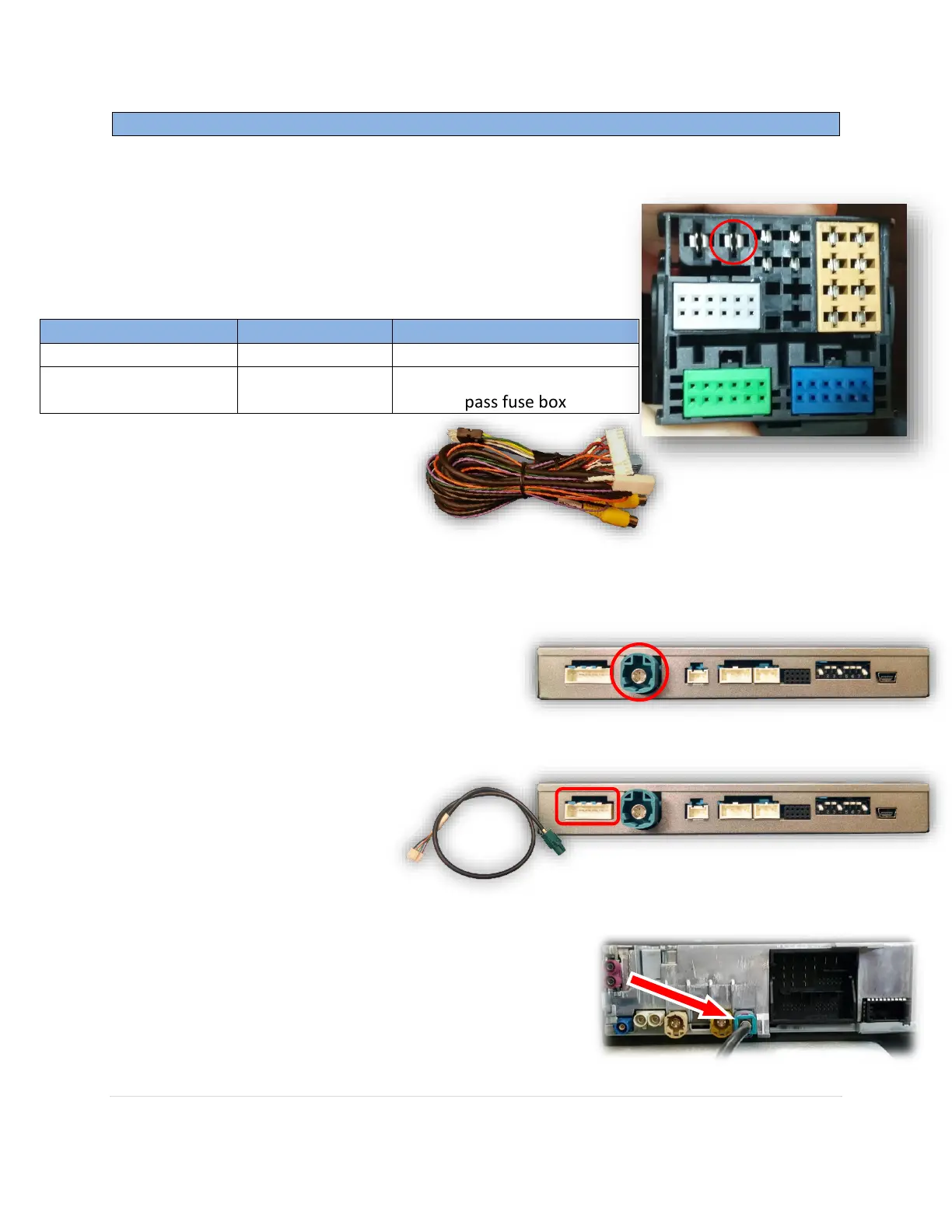

AUDI-P60H Installation
1. Remove the MMI module located in glove box – this will require an 8mm socket and
possibly a right-angle driver. Disconnect any associated
harnesses and set the radio aside.
2. Grab the provided ‘Power/CAN Harness’ from the
AUDI-P60H kit. Connect the following wires to the car:
3. Locate the factory Pink (For AUDI’s with NAV, this connector is GRAY), 4-pin round
connector that was removed from the radio
in step 1. Connect this factory plug to the
AUDI-P60H interface at the port labeled
‘VIDEO OUT’.*
4. Connect the smaller white plug
side of the provided LVDS
Video Cable to the port on
the AUDI-P60H interface
labeled ‘VIDEO-IN’.
5. Connect the free end of the provided LVDS Video Cable (green) back to the factory radio
at the appropriate port.
Interface wires
Connect to car
Location
Black (Ground)
Chassis Ground
PIN 15 (Radio plug)
Red (ACC 12v)
ACC 12v (+)
Black/White or Black/Blue @
pass fuse box
