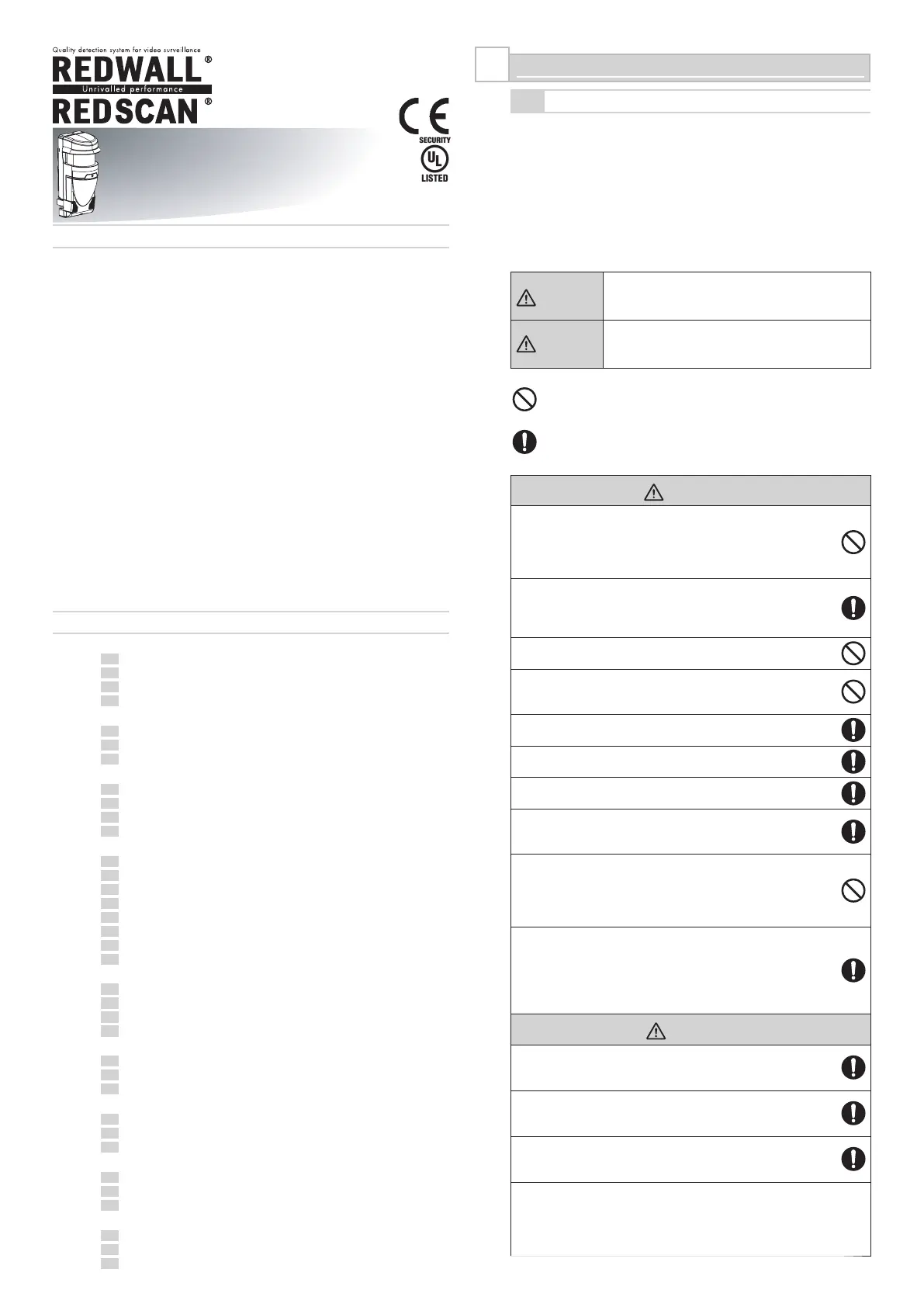

- 1 -
INTRODUCTION
1
CONTENTS
1 INTRODUCTION
1-1
BEFORE OPERATION......................................................................... 1
1-2
PRECAUTIONS ................................................................................... 2
1-3
PARTS IDENTIFICATION .................................................................... 2
1-4
INSTALLATION WORK FLOWCHART................................................. 2
2 TYPES OF INSTALLATION METHOD AND DETECTION AREAS
2-1
TYPES OF INSTALLATION METHOD ................................................. 3
2-2
TYPES OF DETECTION METHOD ..................................................... 3
2-3
AREA SETTING PROCEDURE ........................................................... 4
3 INSTALLATION AND ANGLE ADJUSTMENT
3-1
INSTALLING TO WALL OR CEILING PLANE...................................... 4
3-2
INSTALLING TO POLE ........................................................................ 5
3-3
INSTALLING AT AN ANGLE TO WALL, CEILING PLANE OR POLE .. 6
3-4
CONFIRMATION OF LOCATION OF THE LASER PLANE ................. 6
4 PARTS LAYOUT INSIDE THE COVER AND THEIR FUNCTIONS
4-1
WIRING ................................................................................................ 6
4-2
SIGNAL OUTPUT................................................................................. 6
4-3
CONNECTING WALK TESTER........................................................... 7
4-4
POWERING ON ................................................................................... 7
4-5
HEATER POWER INPUT..................................................................... 7
4-6
SWITCH LAYOUT ................................................................................ 7
4-7
LED FUNCTIONS ................................................................................ 7
4-8
INITIALIZATION TO FACTORY DEFAULT........................................... 8
5 SETTING HORIZONTAL DETECTION AREAS 1 AND 2
5-1
SELECTOR SWITCH OPERATION ..................................................... 8
5-2
MANUAL SETTING OF HORIZONTAL DETECTION AREA................ 8
5-3
STARTING SECURITY PROTECTION IN MANUAL MODE................ 9
5-4
AUTO SETTING OF HORIZONTAL DETECTION AREA..................... 9
6 SETTING VERTICAL DETECTION AREA
6-1
SELECTOR SWITCH OPERATION ..................................................... 9
6-2
SETTING DETECTION AREA IN VERTICAL DETECTION AREA .... 10
6-3
AUTO SETTING OF VERTICAL DETECTION AREA ........................ 10
7 AREA CHECKUPS
7-1
WALK TEST ....................................................................................... 11
7-2
CHANGING THE SETTINGS DURING SETUP................................. 11
7-3
SYSTEM FUNCTION AFTER POWER FAILURE.............................. 11
8 IP CONNECTION WITH REDSCAN
8-1
DEFAULT SETTINGS......................................................................... 11
8-2
REDSCAN MANAGER....................................................................... 11
8-3
REDWALL EVENT CODE ................................................................. 11
9 SPECIFICATIONS
9-1
SPECIFICATIONS OF THE MAIN UNIT ............................................ 12
9-2
DIMENSIONAL DRAWING................................................................. 12
9-3
OPTIONS ........................................................................................... 12
1-1
BEFORE OPERATION
Read this instruction manual carefully prior to installation.
This manual uses the following warning indications to provide
information regarding correct usage of the product to prevent
you and other people from being harmed and your assets
from being damaged. These warning indications are described
below.
Ensure you understand these precautions before reading the
rest of this manual.
Warning
Failure to follow the instructions provided by
this warning and improper handling may cause
death or serious injury.
Caution
Failure to follow the instructions provided by
this caution and improper handling may cause
injury and/or property damage.
This symbol indicates prohibition.
The specific prohibited action is provided in and/or around
the figure.
This symbol requires an action or gives an instruction.
Warning
Do not use the product for purposes other than the
detection of human and vehicles.
Do not use the product to activate a shutter, etc.,
which may cause an accident.
Do not touch the unit base or power terminals of
the product with a wet hand (do not touch when the
product is wet with rain, etc.). It may cause electric
shock.
Never attempt to disassemble or repair the product. It
may cause fire or damage to the devices.
Do not exceed the voltage or current rating specified
for any of the terminals, doing so may cause fire or
damage to the devices.
Ensure the power is turned off before connecting
wiring.
Confirm the signal name of every terminal to ensure
wiring is carried out correctly.
Whenever a commercial switching regulator is used,
be sure to connect PE (Protective Earth Terminal).
Hold the main unit securely when you install or
service it. Exercise care not to bump the product
against nearby objects or drop it inadvertently.
This product is not capable of detecting objects in the
dead zone of the laser scan.
Do not use this product for an application where it is
not capable of covering the detection area required
by the task.
Please note that the product can malfunction,
including producing an irregular output and
committing a detection error, if it is exposed to
unfavorable environmental conditions such as
strong ambient light, electronic noises or mechanical
vibrations.
Caution
Use of controls or adjustments or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
Clean and check the product periodically for safe use.
If any problem is found, do not attempt to use the
product as it is.
When disposing of this product, be sure to follow the
waste-disposal regulations of the country or region
where it is used.
This product is intended to detect an intruder(s)
and is not designed to prevent theft, disasters or
accidents. The manufacturer shall not be held liable
for any damage to user’s property resulting from
theft, disasters or accidents.
•
•
FEATURES
* Detection range is 30m (Approx. 100ft.) radius, max. 190 degree
*Selectable horizontal or vertical detection area
*Intelligent detection analysis for various types of application
such as PTZ camera control (*UL-1), human hand detection,
direction control, vehicle detection (*UL-2) etc. (*1)
* Recognition of the intrusion location which can activate 4
independent outputs for PTZ control (*UL-1)
*Flexible and easy setup of the required detection area
*Built-in heater (-40 - +60 °C, -40 - +140 °F)
*Selectable zone patterns for PTZ camera control using the IP
connection (*1) (*UL-3)
*1: The Redscan Manager, optional setup software, provides these functions.
INSTALLATION INSTRUCTIONS
RLS-3060SH
Laser Scan Detector
Laser Scan Detector
RLS-3060SH
(No.610494-2 : Doc 591815-7 )
(UL) 591815-7 1306-01
*UL-1: The PTZ camera feature is to be used supplementary only.
*UL-2: Vehicle detection, Fence/Wall top protection and Loitering detection modes cannot
be used for UL Listed applications.
*UL-3: For UL Listed installation applications, the unit shall be connected to a compatible
UL Listed control panel and/or UL Listed burglar alarm power supply.
This model is UL Listed product.
The comments with "*UL-Number"
are UL's requirements and infor-
mation for using this product.
Software is Ve
r. 7.x.x. and UL Listed Version is
Ve
r. 7.x. and the part number may consist of
".x" which delineates minor code error/bug fixes.
Fence/Wall top protection mode and Loitering detection mode
are new in Ver. 7.1.0.(*UL-2)(*1)
☆
Advanced area setting and Selectable detection areas function
are new in Ver. 7.1.0. (*1)
☆
REDSCAN is an area sensor that configures a fan-like detection
area of 30 m (Approx.100 ft.) radius over 190 degrees arc. using
laser beams. REDSCAN detects target objects by emitting laser
beams at the target and measuring the time required for the
emitted beams to be reflected and returned to the detector.
- 2 -

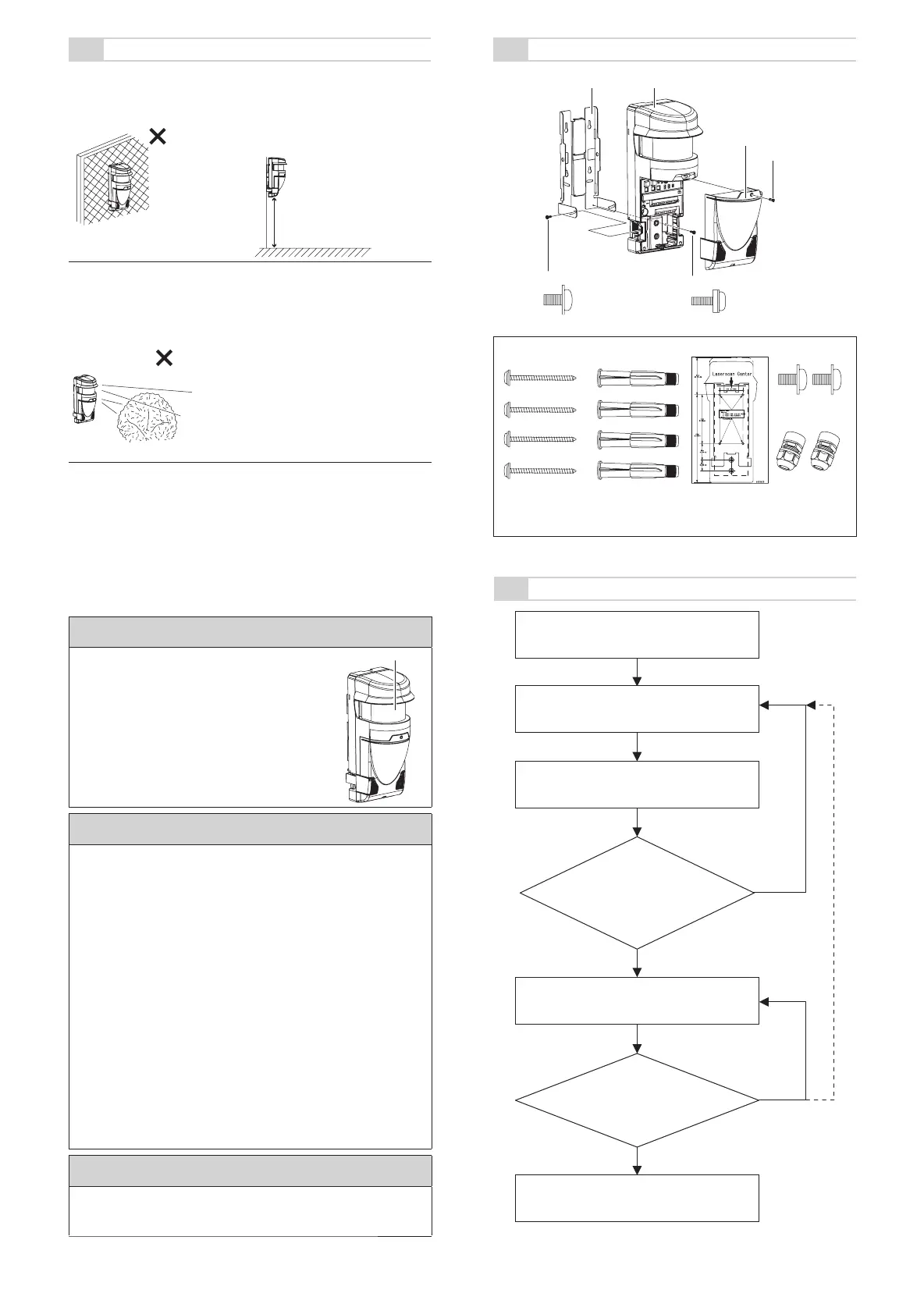

1-2
PRECAUTIONS
Install the product only on a
solid surface.
In the Horizontal Detection
Area, this product must
normally be used within the
recommended installation
height in order to detect an
intruder.
Install the product so that the
detection area is not influenced
by interference from tall grass
or tree branches waving in the
wind.
Do not install or leave the
product in a location exposed
to heat, vibrations or impacts
.
Do not use the product in an
environment where solvent
fumes or corrosive gases are
present.
Do not use this product in
environments where there
may be oil mist particles which
may contaminate the window
of the detector; thus causing
detection errors and possible
corrosion which may lead to
product failure.
The symbol “Í” indicates prohibited actions.
Cleaning the Product
Clean the front window on a regular basis
using a wet cloth.
A smeared front window can limit the
detection area due to the reduced laser
sensitivity. In addition, heavy soiling of the
window can induce detection errors.
Front window
On Safety of Laser
This product is categorized as a Class 1 product in terms of the
Safety Standard.
A
verage Power
: Max. 0.015 mW (AEL)
Wavelength
: 905 nm
Pulse Width
: 4 ns
Emission period
: 36 ms
Standard
: IEC60825-1
Class 1 of the Laser Safety Standard means that the safety
of laser products belonging to this class is warranted under
normal operating conditions (reasonably predictable operating
conditions). The product is marked to indicate that it is laser
equipment. No additional safety measures are necessary.
Complies with 2
1 CFR 1040.10 and 1040.11 except for
deviations pursuant to Laser Notice No.50,
dated June 24, 2007.
Class 1 laser product
Do not expose your eyes directly to the laser beam.
1-3
PARTS IDENTIFICATION
Mounting bracketMain unit
Cover
Cover mounting screw
Main unit mounting screw
Angle adjustment screw
Accessories>>
4 screws
(For fixing the
mounting bracket)
4 anchors
for the wall
1 mounting holes
template
(printed on inside
of the carton box)
2 cable glands
2 screws
(spare parts)
1-4
INSTALLATION WORK FLOWCHART
Walk-test and confirm
the detection area.
(Refer 8-1)
Choose the detection area mode and
installation location. (Refer 2)
Mounting and angle adjustment.
(Refer 3)
Wiring and Power On.
(Refer 4)
Confirmation of location
of the laser plane.
(Refer 3-4)
Area adjustment (Refer 5, 6)
Completion
OK
OK
NG
NG
Installation height:
0.7 m to 1 m
(2.3 ft. to 3.3 ft.)
CE Statement
Warning: This is a class A product. In a domestic environment
this product may cause radio interference in which case the
user may be required to take adequate measures. (EN55022)
When assessing the installation and
application, alarms triggered by
conditions such as weather, blowing
leaves and bush, or related
environmental conditions, etc.,
need to be considered .
It is recommended that the intrusion
detection unit is not to be connected
to an alarm initiating circuit but may
be connected to a trouble alarm circuit
if nuisance trips are not tolerable.
*UL-4:
Produktspecifikationer
| Varumärke: | Optex |
| Kategori: | ej kategoriserat |
| Modell: | RLS-3060SH |
Behöver du hjälp?
Om du behöver hjälp med Optex RLS-3060SH ställ en fråga nedan och andra användare kommer att svara dig
ej kategoriserat Optex Manualer
3 September 2025
3 September 2025
3 September 2025
3 September 2025
3 September 2025
3 September 2025
3 September 2025
ej kategoriserat Manualer
- Hayward
- GoldAir
- Kool-It
- Melissa
- Miele
- Speakman
- Rackmount.IT
- Moulinex
- Osram
- SureFly
- Standard Horizon
- Grillmeister
- HMD
- Javalo Elf
- Frigidaire
Nyaste ej kategoriserat Manualer
3 September 2025
3 September 2025
3 September 2025
3 September 2025
3 September 2025
3 September 2025
3 September 2025
3 September 2025
3 September 2025
3 September 2025
