Sida 1/2
Icons used in this manual:
Safety
Important info
Contents:
Box Contents
Introduction
Product Compliance and
Safety Information
Installation
User Interface
Status/LED indication
Installers notes
Warranty
Product Compliance & Safety Information

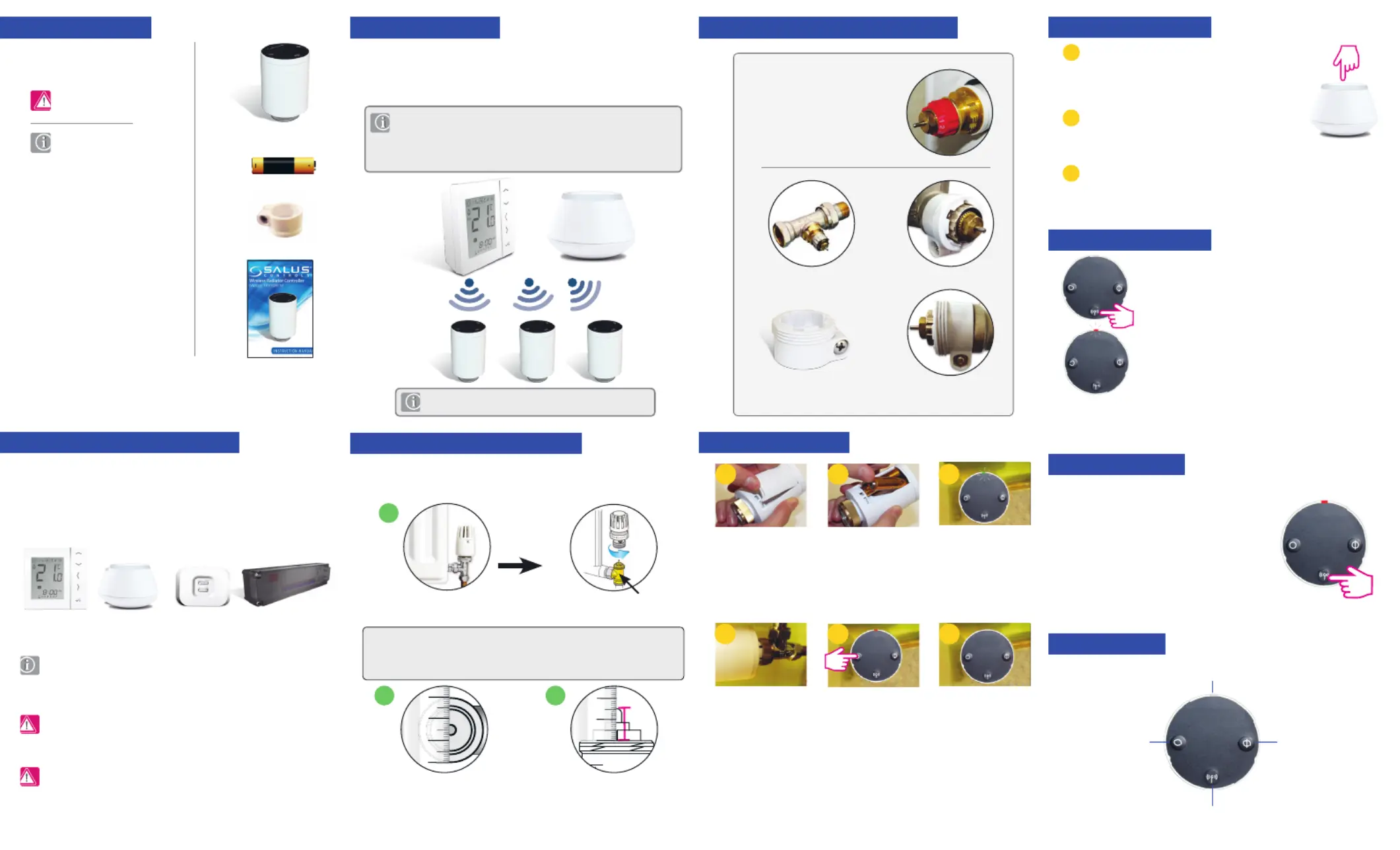

INTRODUCTION
The TRV10RFM is a battery-powered, mini-size thermostatic radiator valve (TRV)
controller using ZigBee wireless communication. Simply replace the existing,
passive head on the standard radiator valve with the TRV10RFM (referred to from
now on as the unit). Use the unit with the VS10RF or VS20RF series of wireless
thermostats and a Universal Gateway.
VS10RF / VS20RF
Thermostat
(Required)
UG600
(Required)
SALUS Wiring Centre
KL08RF
Checking the compatibility of your heating system
Our RA adapter also ts this valve.
Once tted the RA adapter should look like this.
If you can not see any thread on
the valve and it looks like this
picture, you may be able to use the
RA adapter supplied.
TRV10 ts 30x1,5 mm thread.
Installing the Unit
Screw the units nut (nger
tight) to the radiator valve
and check that the LED is
solid red.
Press any button on the
unit to adapt it to the
radiator valve. Once all
adaptation noise and LED
activity has stopped, the
unit is ready to pair with
your wireless thermostat.
The unit is now ready
for pairing to the SALUS
thermostat. You may now
start the pairing process.
4 5 6
Remove the battery door
on the side of the unit.
Insert the batteries,
ensuring correct
orientation.
1 2 3
The LED on the unit ashes
green then ashes red before
changing to solid red. When
it is solid red, place the unit
over the radiator valve using
the mounting ring if needed:
Contents of the box
For the latest PFD Instruction Manual, go to
www.salus-controls.com
TRV10RFM
2 AA Batteries
Adapter
Manual
Box Contents
Product Compliance
This product is CE compliant and meets the following EC Directives: Electro-Magnetic Compatibility
directive 2014/30/EU; 2014/53/EU and 2011/65/EU.
Safety Information
Use in accordance with the regulations. The unit is to be used for the control of room temperature
inside the house.
Installation
This accessory must be tted by a competent person, and installation must comply with the
guidance, standards and regulations applicable to the country or state where the product is
installed. Failure to comply with the relevant standards could lead to prosecution.
RX10RF
(Optional)
System Overview
To achieve the best control from the unit and thermostat, we recommend they are
used with the SALUS system receiver congured to RX1. The system receiver will
turn the boiler on or o when requested by the thermostat. See your boiler receiver
manual for more information about the RX1 conguration.
+
Up to 6 units can be connected to a VS10RF/VS20RF
The unit is modulating, which means it opens or closes partially
or 100% depending on the relationship between the actual room
temperature and the required room temperature measured by
the VS10/20RF.
Checking the compatibility of your heating system
The SALUS TRV10RFM is compatible with the majority of thermostatic radiator valves.
Before tting, please check your valve is suitable for use with the SALUS TRV.
Valve
Remove the TRV head
Note: If all the measurements are as stated on this page then the TRV will t directly
to your valve. Also if your valve is not suitable please consider changing your existing
valves, contact your installer.
Measure the thread diameter
(must measure 30mm)
1
2
mm102030
3
mm1020
Measure the pin length of the valve
when it is in the open position.
(must measure between 13-16mm)
Preparing to Pair the Unit
1
Press and hold the button on the Universal Gateway for
ve seconds. This puts the Universal Gateway in pairing
mode. See your Universal Gateway manual for more
information.
2
Ensure the wireless thermostat is powered up and
ready for pairing. See your thermostat manual for more
information.
3
If you are using the optional RX10RF wireless boiler receiver congured for
remote boiler switching, ensure this has been powered up and the red LED
has gone from ashing to steady. See your boiler receiver manual for more
information.
Pairing the Unit
Press and hold the pairing button for 10 seconds.
You can pair up to 6 units with one thermostat.
Pair the units room by room.
You have paired the unit to the thermostat when the unit LED goes off.
Once paired, the unit operates in automatic mode and receives room temperatures
from the thermostat.

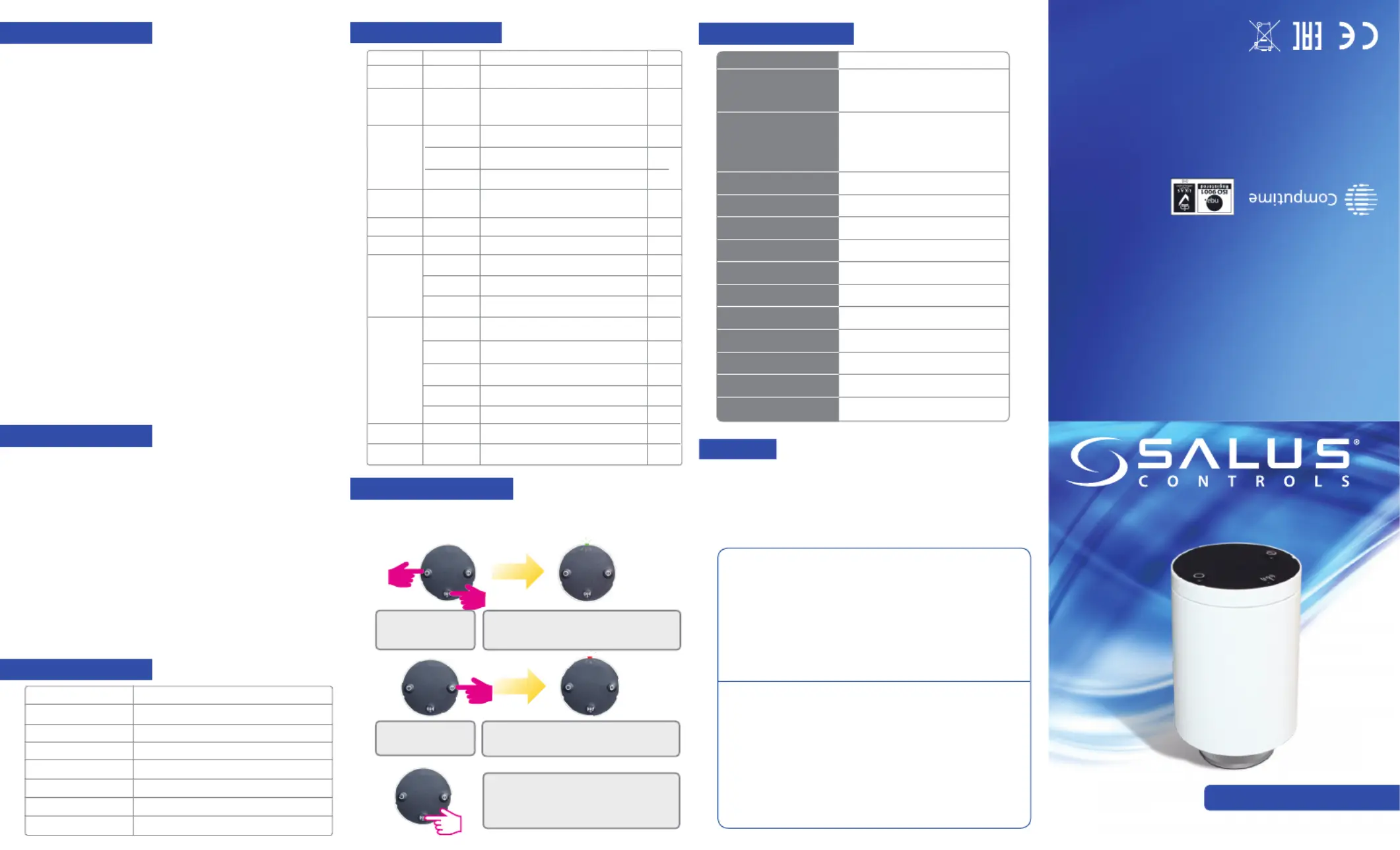

LED Indication
Pairing Button
Manual open/
status indication
Manual close/
status indication
Using the Unit
Leaving the Network
Once paired to a thermostat, press and hold the
pairing button on the unit for 10 seconds.
The red LED come on together for one second.
Note: After you have deleted the unit from the
wireless network, you must reinstall the TRV see
Installing the unit.
