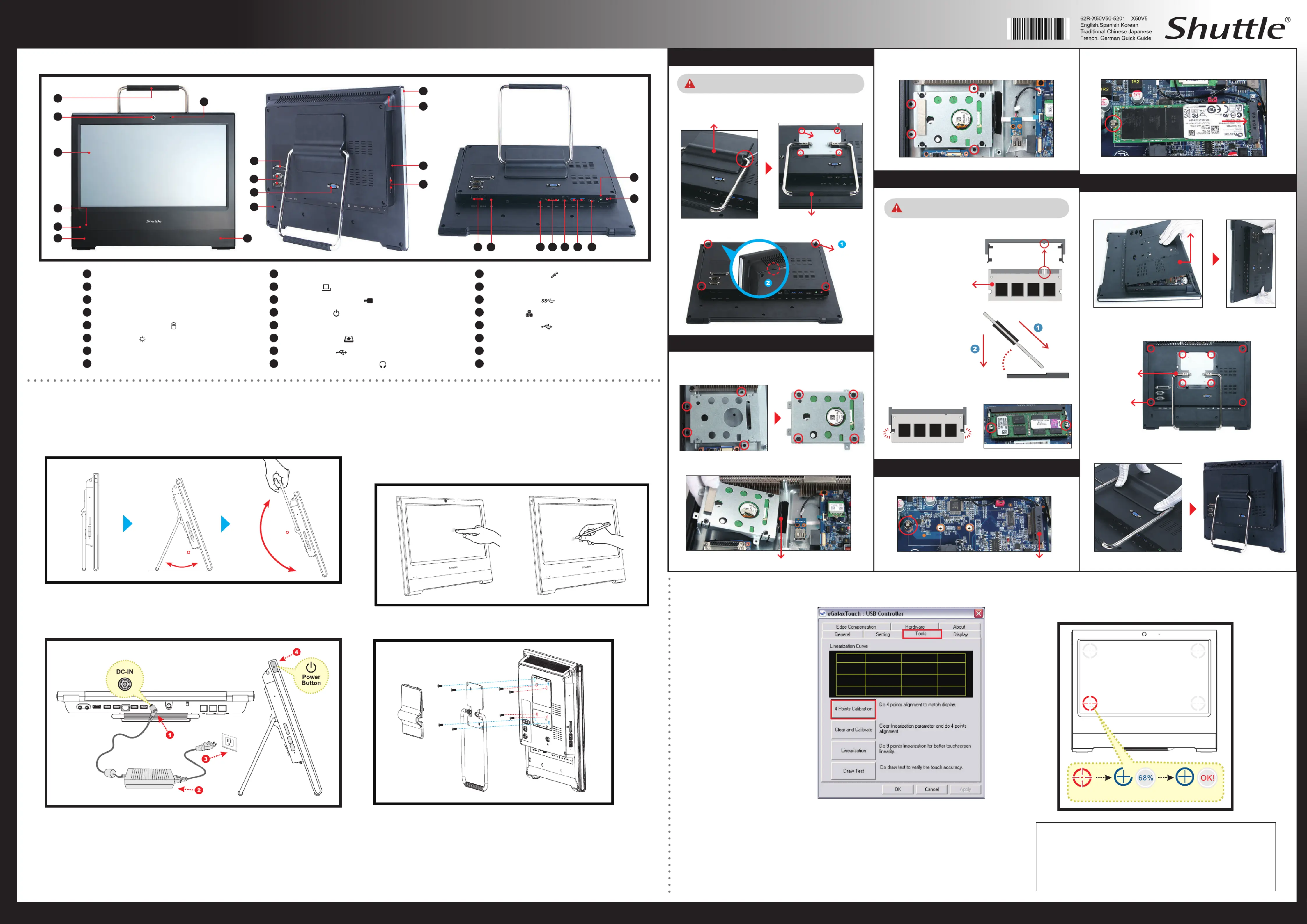

X50V5 Series Quick Guide

【

English

】

Refasten the stand and the back cover with eight screws.

 To place the machine on the desk and to carry it, do the following:

Place the X50V5 on a 󰘱at surface such as a table (Picture 1), and pull the stand

upwards to an angle of 30° (Picture 2). To carry or move your X50V5 fully extend

the angle to 180° (Picture 3).

VESA mounting it to the wall

Placing on the desk

Front / Rear / Side View

 Run the screen calibration

program and perform a 4

points on-screen calibration.

Click Start / All Programs

/ eGalax Touch

/ Con󰘰gure Utility

Select [Tools] tab and click

[4 Points Calibration]

How to use the Touch Panel

4 Points Calibration (Installation from CD-ROM)

 Experience the ease of managing your digital life with a few touches by using the

stylus. The touch of your 󰘰nger replaces the mouse and this is all you need to

interact with the X50V5.

 Touch and hold the center of the target.

Repeat on four corners and the screen will adjust automatically.

When the 4 points calibration completed, press “OK” to continue.

Cleaning the screen

 Follow these guidelines for cleaning the outside and handling the screen of the computer:

Turn o󰘯 the system and disconnect all cables.

Use a damp or cleaning cloth, ideally soft, lint-free and lightly humid to wipe the screen.

・Touch = left-click on the mouse

・Touch and hold = right-click on the mouse

 Follow the steps (1~3) below to connect the AC adapter to the “DC-IN jack”.

Press the “Power Button” to turn on the system.

Powering on the system

Stand / Handle

Microphone

Webcam

LCD Display (Single Touch)

Hard Disk Drive LED

Power LED

Stereo Speakers

Printer Port (Optional)

Note : The X50V5 can be mounted to a wall using a VESA compatible 75 x75

mm or 100 x 100mm wall/arm bracket.



If you are mounting your X50V5 to the wall, remove the cover on the back of

the X50V5 󰘰rst.

Unscrew four screws of the stand mount and remove the stand. The VESA

standard lets users mount it on to walls easily. Please refer to the user guide

of the wall/arm mount kit you bought separately to install it.

Note: The product’s colour and speci󰘰cations may vary from the actually shipping product.

Safety Information

Read the following precautions before setting up a Shuttle X50V5.

CAUTION

Do not walk on the power cord or allow anything to rest on it.

Danger of explosion if battery is incorrectly replaced. Replace only with the same

or equivalent type recommended by the manufacturer.

Dispose of used batteries according to the manufacturer’s instructions.

A. Begin Installation

Remove the cover on the back of the X50V5 󰘰rst, unscrew

four screws of the stand mount and remove the stand.

For safety reasons, please ensure that the power

cord is disconnected before opening the case.

Latch

B. HDD or SSD Installation

Unscrew four screws of the bracket and remove it.

Mount the HDD or SSD into the bracket with four screws.

Replace the back cover.

E. Complete

Unscrew four screws of the back cover and remove it.

Replace the cover, complete.

Cover

Screw

Carefully push down the memory module until it snaps into

the locking mechanism.

Back Cover

Screw

Stand / Handle

75 x75 mm

100 x 100mm

COM1 and COM2 Ports (Optional)

VGA Port

Kensington

Lock Port

Power Button

Stylus

SD Card Reader

USB 2.0 Ports

Headphone / Line-out Jack

Microphone Jack

HDMI Port

HDMI

USB 3.0 Ports

LAN Port

USB 2.0 Ports

DC In

DC-IN

RJ11 DIO Port for Cash Drawer (Optional)

COM3, COM4 over RJ45 (Optional)

181922 20212324

Locate the SO-DIMM slot on the mainboard.

Gently insert the

module into the slot

in a 45-degree angle.

SO-DIMM slot

Install the HDD or SSD & bracket in the chassis and tighten

the HDD or SSD & bracket with four screws.

C. Memory Module Installation

Align the notch of the

memory module with the

one of the memory slot.

45-degree

angle

Connect the Serial ATA and power cable to the HDD or SSD.

Serial ATA and power cable

Use DDR3L SO-DIMM only!

180

3.2.1.

53R-X50V53-H001

Unscrew

This mainboard does only support 1.35V DDR3L

memory modules.

D. Component Installation

As shown, unfasten the screw 󰘰rst.

Please install the M.2 card into the M key slot and secure

with a screw.

M.2 2280 M Key slot

Hold OK

Touch

Model: X50V5

FCC ID : S8C-X50V5

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.

OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND

(2)

THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,

INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Made in Taiwan Brand Name: Shuttle

Produktspecifikationer

Varumärke:	Shuttle
Kategori:	Skrivbord
Modell:	XPC X 5050XA
Produkttyp:	Allt-i-ett-dator
Skärm diagonal:	15.6 "
Upplösning:	1366 x 768 pixlar
Pekskärm:	Ja
Processorfrekvens:	1.6 GHz
Processorfamilj:	Intel® Celeron®
Wi-Fi:	Ja
Wi-Fi-standarder:	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth-version:	4.0
Ljudsystem:	HD
Skärmform:	Platt
Touch-teknik:	Flerpunktsberöring
Ljusstyrka:	220 cd/m²
LED-bakgrundsbelysning:	Ja
Antal HDMI-portar:	1
Inbyggda högtalare:	Ja
Hörlursutgångar:	1
Certifiering:	CE, FCC, BSMI, CB, BSMI, ETL, ErP Lot6
Internminne:	4 GB
Inbyggd kamera:	Ja
Vikt (med stativ):	3080 g
Processor:	3855U
Intel® Wireless Display (Intel® WiDi):	Ja
Processorns driftlägen:	64-bit
Processorns cache:	2 MB
Busstyp:	OPI
Maximalt internminne:	16 GB
Total lagringskapacitet:	500 GB
Intel® My WiFi Technology (Intel® MWT):	Ja
Intel® Smart Response Technology:	Ja
Intel® Hyper Threading Technology (Intel® HT Technology):	Nej
Intel® AES nya instruktioner (Intel® AES-NI):	Ja
Idle stater:	Ja
Intel® Small Business Advantage (Intel® SBA):	Nej
Intel® Secure Key:	Ja
Intel® 64:	Ja
Intel® OS Guard:	Nej
Intel® Virtualization Technology for Directed I/O (VT-d):	Ja
Intel® Identity Protection Technology (Intel® IPT):	Ja
Intel® Trusted Execution Technology:	Nej
Intel® Stable Image Platform Program (SIPP):	Nej
Processorkod:	SR2EV
Minnestyper som stöds av processorn:	DDR4-SDRAM, LPDDR3-SDRAM
Minneslayout:	1 x 4 GB
Minnesplatser:	1
Minnesbandbredd som stöds av processorn (max):	34.1 GB/s
Antalet installerade hårddiskar:	1
Tcase:	- ° C
Processorserie:	Intel Celeron Processor 3000 series for Mobile
Intel® Smart Cache:	Ja
Antal lagringsenheter som stöds:	1
Typ av minneskort:	SD, SDHC, SDXC
Produktens färg:	Svart
HD-typ:	HD
Bredd (med stativ):	391 mm
Djup (med stativ):	42 mm
Höjd (med stativ):	327 mm
Monteringsbar på väggen:	Ja
Vikt inkl. förpackning:	4240 g
Inbyggd kortläsare:	Ja
processortillverkare:	Intel
Installerat operativsystem:	Nej
Datahastighet för Ethernet-LAN:	10,100,1000 Mbit/s
Antal LAN (RJ-45) anslutningar:	1
Temperatur vid drift:	0 - 40 ° C
Intervall för relativ operativ luftfuktighet:	10 - 90 %
processorsockel:	BGA 1356
Processorns kodnamn:	Skylake
Maximalt inbyggt grafikadapterminne:	32 GB
Processorns cachetyp:	Smart Cache
Minneskanaler som stöds av processorn:	Dual
Seriella portar:	2
Hållbarhetscertifiering:	RoHS, ENERGY STAR
Hårddiskkapacitet:	500 GB
Typ av internminne:	DDR3L-SDRAM
3D kompatibilitet:	Nej
Totalt megapixel:	2 MP
Nätverksansluten (Ethernet):	Ja
Likströmsingång:	Ja
AC-adapter inkluderad:	Ja
Strömkabel ingår:	Ja
Intel Software Guard Extensions (Intel SGX):	Ja
Antal USB 2.0 anslutningar:	4
Minnesplatser, typ:	SO-DIMM
Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar:	2
Native bildförhållande:	16:9
Processorkärnor:	2
Bluetooth:	Ja
Produktvikt (oz):	Ja
Typ av kabellåsanslutning:	Kensington
Wi-Fi-standard:	Wi-Fi 4 (802.11n)
AC-adapter, nätspänning:	19 V
AC-adapter, maxbelastning:	3.42 A
Kvalitet på VGA (D-Sub) porten:	1
Systembuss, hastighet:	- GT/s
Processortrådar:	2
Processorlitografi:	14 nm
Stegning:	D1
Processor med ECC-stöd:	Nej
Värmeavledningseffekt (TDP):	15 W
Högsta antal PCI Express-platser:	10
PCI Express-kortplatser version:	2.0
PCI Express konfigurationer:	1x2+2x1, 1x4, 2x2, 4x1
T-junction:	100 ° C
Minne klockhastighet:	1600 MHz
Lagringsmedia:	HDD
Optisk enhetstyp:	Nej
Ombord grafikkort modell:	Intel® HD Graphics 510
Diskret grafikkortsmodell:	Ej tillgänglig
Basfrekvens för inbyggt grafikkort:	300 MHz
Högsta dynamiska frekvens för inbyggt grafikkort:	900 MHz
Grafik enhets-ID:	0x1906
Ombord grafikkort:	Ja
Familj av inbyggda grafikkort:	Intel® HD Graphics
Uttag för mikrofon/linje in:	Ja
AC-adapter, effektförlust:	60 W
Intel® Turbo Boost Technology:	Nej
Förstärkt Intel Speedstep Technology:	Ja
Intel® Clear Video HD Technology (Intel® CVT HD):	Ja
Intel® Quick Sync Video Technology:	Ja
Intel® Flex minnesåtkomst:	Ja
Intel® Förbättrad Halt State:	Ja
Intel® VT-x med utökad Sida Tabeller (EPT):	Ja
Execute Disable Bit-säkerhet:	Ja
Termiska övervakningsteknik:	Ja
Processorns förpackningsstorlek:	42 x 24 mm
Stödda instruktionsset:	SSE4.1, SSE4.2
CPU konfiguration (max):	1
Inbäddade alternativ:	Nej
Grafik & IMC litografi:	14 nm
Intel Identity Protection Technology-version:	1.00
Intel Secure Key Technology-version:	1.00
Intel Virtualization Technology (VT-x):	Ja
Etisk processor (Conflict Free):	Ja
ARK-ID för processor:	92211
Minnesklockfrekvens som stöds av processorn:	1600,1866,2133 MHz
Högsta internminne som stöds av processorn:	32 GB
Antal installerade lagringsenheter:	1
Hårddiskens gränssnitt:	SATA III
Antal skärmar som stöds (inbyggt grafikkort):	3
Mus inkluderad:	Nej
Tangentbord inkluderat:	Nej
Intel TSX-NI-version:	0.00
Intel® TSX-NI:	Nej
Autonomi läge:	Nej
AC-adapter, inspänning:	100 - 240 V
Drivrutiner medföljer:	Ja
64-bitars bearbetning:	Ja
Konfigurerbar TDP-down:	10 W
AC-adapter, frekvens:	50/60 hz
Bildupplösning:	1600 x 1200 pixlar
DirectX-version på inbyggt grafikkort:	12.0
OpenGL-version på inbyggt grafikkort:	4.4
Intel Small Business Advantage (SBA)-version:	0.00
Intel Stable Image Platform Program (SIPP)-version:	0.00
Minnets formfaktor:	DIMM/SO-DIMM
Intel Smart Response Technology-version:	1.00
Minnesspänning som stöds av processorn:	- V
Intel® Built-in Visuals Technology:	Ja
Intel HD Graphics:	Ja
Löstagbar skärm:	Nej
