Instruction manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 07/23/2015

For the latest information, technical specications, and support for

this product, please visit www.startech.com/ST1030USBM.

Packaging contents

• 1 x 10-port industrial USB 3.0 hub

• 1 x USB 3.0 host cable

• 1 x DIN rail mounting kit

• 1 x terminal block (2-wire)

• 1 x instruction manual

System requirements

• USB-enabled host computer with an available USB 3.0 port

• 2-wire 7~24V DC power source

• OS independent

Note: This hub can only be used with terminal block power input. A

standard AC power adapter is not included or supported.

Operating system requirements are subject to change. For the latest

requirements, please visit .www.startech.com/ST1030USBM

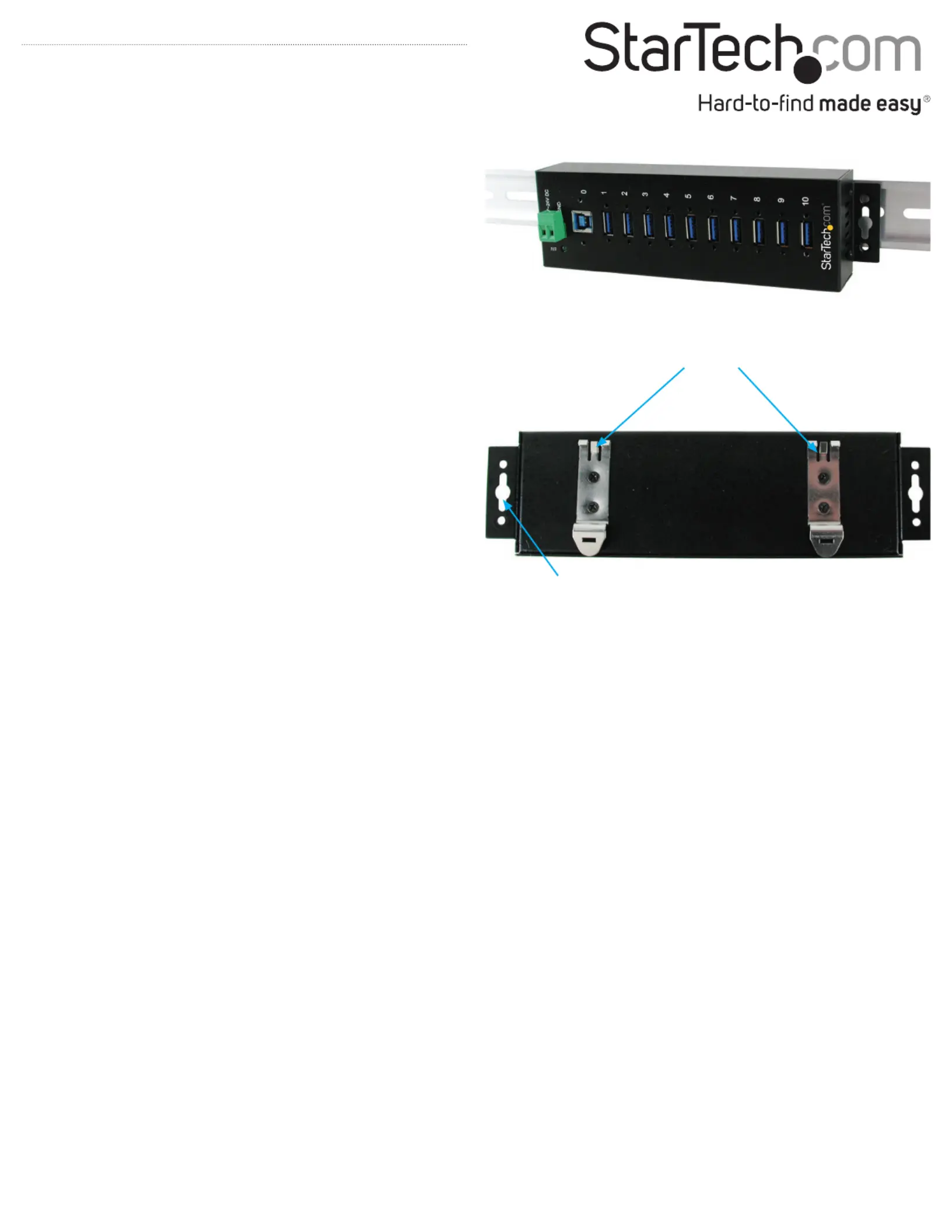

ST1030USBM

10-Port Industrial USB 3.0 Hub - ESD and Surge Protection

*actual product may vary from photos

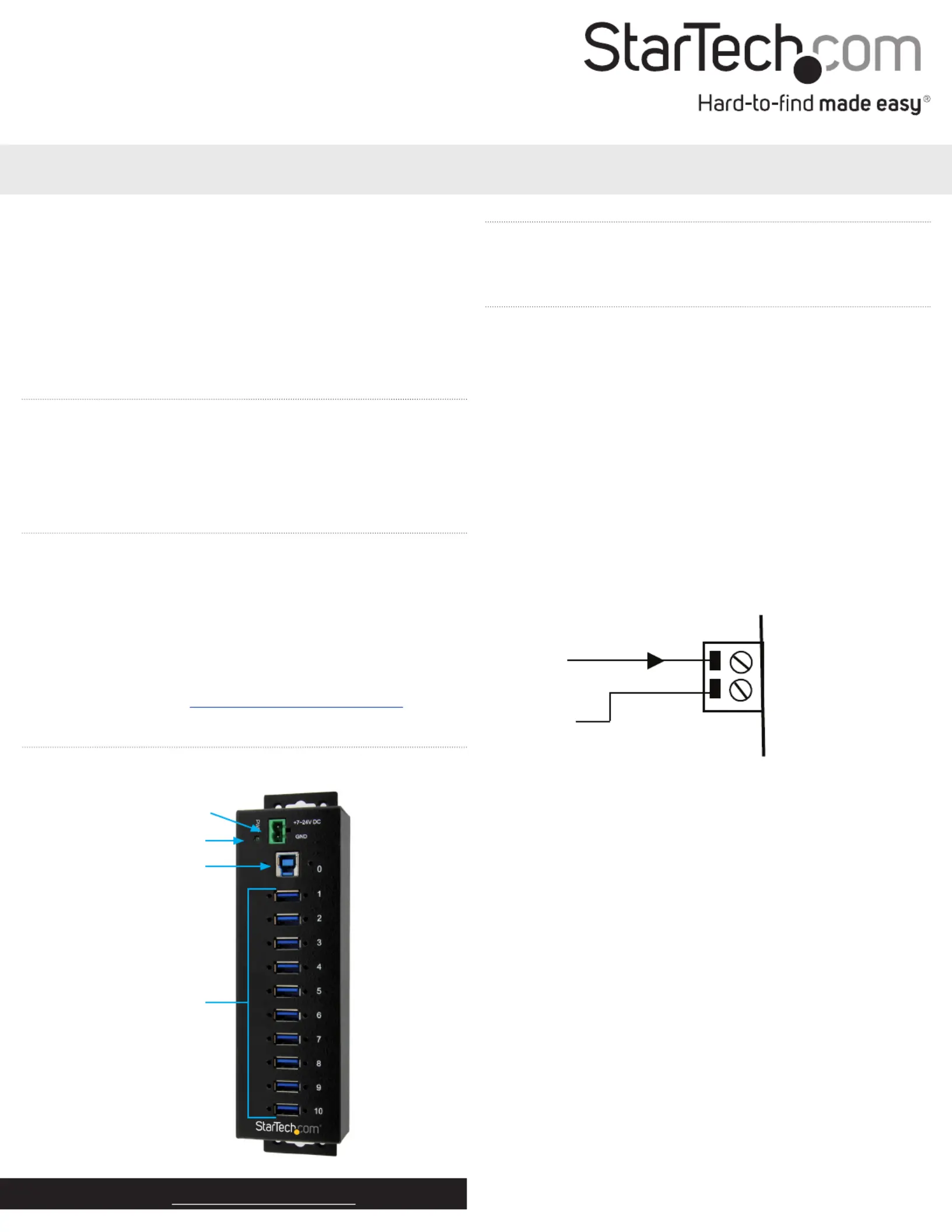

Product diagram

Front view

2-wire terminal block included

(7~24V DC input)

Power LED

USB 3.0 host port

USB 3.0 hub ports

About USB 3.0 and USB 3.1 Gen1

USB 3.0 is also known as USB 3.1 Gen 1. This connectivity standard

oers speeds up to 5 Gbps.

Installation

You must use the terminal block with your external power source to

ensure sucient power is delivered to each USB 3.0 port.

Connect the hub to a terminal block power source

1. If the terminal block connector is already inserted into the hub,

remove it from the hub.

2. Loosen the two screws on the terminal block connector using a

small Phillips or at-head screwdriver.

3. Connect the power and ground wires from your DC power source

to the proper terminal block connectors and fasten the screws.

The terminals are marked on the hub’s casing.

Note: Ensure that the polarity of the input power is correctly

matched with the terminal block pins to ensure proper function (see

the diagram below).

4. Reinsert the terminal block into the hub. The Power LED on the

hub should light up green.

+7~24V

GND

Connect the hub to your host computer and

peripherals

1. Connect the hub to an available USB port on your computer

using the provided USB 3.0 A - B cable. Your computer’s operating

system should detect and automatically install the hub.

2. Connect your USB peripherals to the USB 3.0 hub ports.

Note: If the hub is connected to a USB 2.0 host port, it will operate at

USB 2.0 speeds.
