Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: May 16, 2024

For additional self-service support options and community forums, please visit: www.StarTech.com/support

Product ID

UNISLDSHF192 - Revision 02 or Above

UNISLDSHF19M - Revision 02 or Above

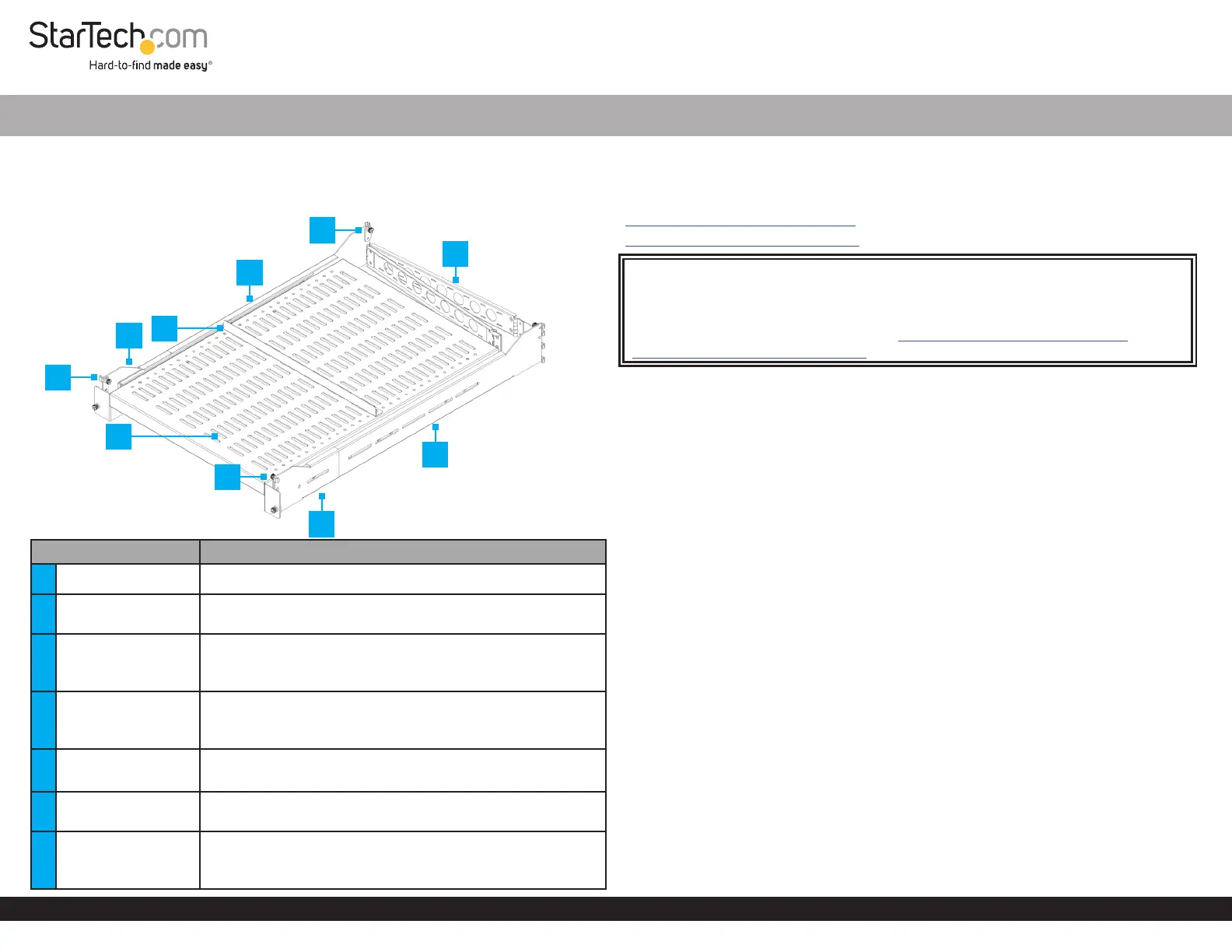

ComponentFunction

1Shelf Surface• Place Rack Equipment

2Rear Stop

• Prevents Equipment installed on the Shelf Surface from

moving backward

3

Sliding Rail

Assembly Front

Bracket(x 2)

• Used to attach the Sliding Shelf onto the Front

Mounting Posts of a Rack

4

Sliding Rail

Assembly Rear

Bracket (x 2)

• Used to attach the Sliding Shelf onto the Rear Mounting

Posts of a Rack

5

Cable Management

Arm

• Prevents Cables from being tangled or damaged when

sliding the Shelf in or out

6

Locking Bracket

(x 3)

• Secures the Sliding Rail Assembly to the Rack

Release Levers x 2

(Not Shown)

• Allows the release of the locking mechanism to retract or

remove the Sliding Shelf from the Rails

• See Figure 3 in the Installation section

2U Vented Sliding Rack Shelf

Product Information

For the latest manuals, product information, technical specications, and declarations of

conformance, please visit:

www.StarTech.com/UNISLDSHF192

www.StarTech.com/UNISLDSHF19M

How to Identify the LOT Code Revision Number

The Revision Number (Rev #) appears as the fth and sixth digits of the LOT code,

located on the sticker axed to the product and its packaging. If the LOT code sticker

is missing, the product is Rev 01. Refer to www.StarTech.com/UNISLDSHF192 or

www.StarTech.com/UNISLDSHF19M to download the manual for Revision 01.

Requirements

• Phillips Head Screwdriver

• (Optional) Cage Nut Tool

Package Contents

• Shelf Assembly x 1

• Sliding Rail Assembly x 2

• Locking Bracket x 3

• Rear Stop x 1

• Cable Management Assembly x 1

• Cable Management Locking Bracket x 1

• M5 x 8mm Screws x 2

• M5 Nuts x 2

• M4 x 8mm Screws x 2

• Quick-Start Guide x1

Warnings!

Read the entire Quick-Start Guide and ensure the instructions are fully understood

before assembling and using this product.

Before adding equipment to this product, ensure this product has been properly

mounted.

Never operate this product if parts are missing or damaged.

Ensure the weight of the equipment does not exceed the weight capacity of the

product. If the weight capacity is exceeded, personal injury or damage to the

equipment is possible. These products can support the following weights:

UNISLDSHF192 up to 50lbs (22.7kg)

UNISLDSHF19M up to 110lbs (50kg)

All four mounting points must be properly secured to each of the posts on a four-post

rack.

Never exceed the maximum mounting depth specication for this shelf: 31.89in

(810mm).

2

*Product may vary from image

3

1

3

5

6

6

6

4

4
