3rdPartyDevice

Pin1LeftPositve(L+)--->To--->LeftPositive(L+)

Pin2LeftNegative(L-)--->To--->LeftNegative(L-)

Pin3Ground(G)--->To--->Ground(G)

Pin4

RightPositive(R+)--->To--->RightPositive(R+)

Pin5

RightNegative(R-)--->To--->RightNegative(R-)

WyreStormConnector

IMPORTANT!WiringGuidelines

•Theuseofpatchpanels,wallplates,cableextenders,kinksincables,and

electricalorenvironmentalinterferencewillhaveanadverseeffecton

signaltransmissionwhichmaylimitperformance.Stepsshouldbetakento

minimizeorremovethesefactorscompletelyduringinstallationforbest

results.

•WyreStormrecommendstheuseofshieldedcategorycabletominimize

signalnoiseandinterference.

•WyreStormrecommendsusingpre-terminatedHDMIcablesduetothe

complexityoftheseconnectortypes.Usingpre-terminatedcableswill

ensurethattheseconnectionsareaccurateandwillnotinterferewiththe

performanceoftheproduct.

RS-232Wiring

MostcontrolsystemsandcomputersareDTEwherepin2isRX,thiscanvaryfromdevicetodevice.Refertothedocumentationfortheconnecteddeviceforpin

functionallytoensurethatthecorrectconnectionscanbemade.

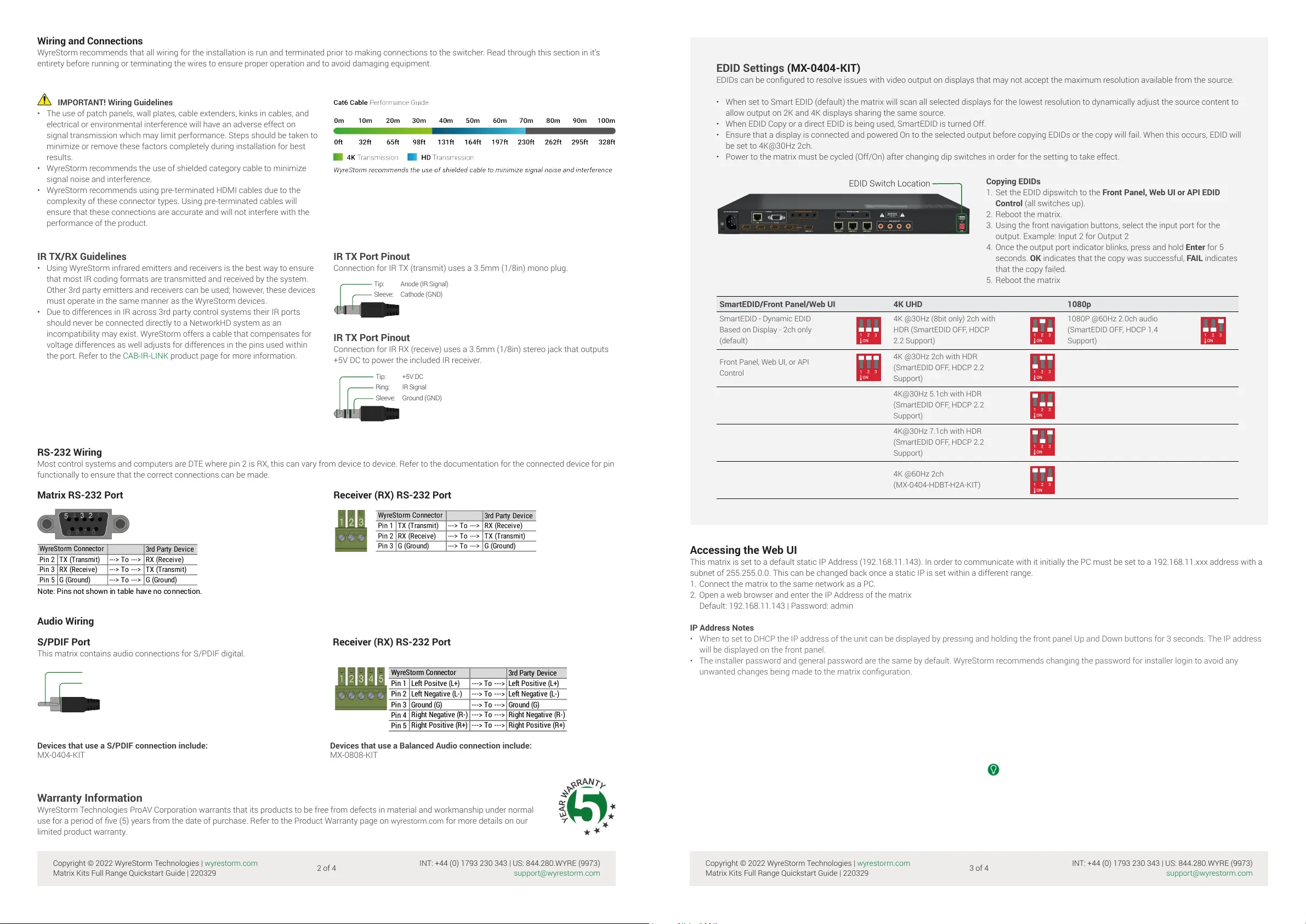

WiringandConnections

WyreStormrecommendsthatallwiringfortheinstallationisrunandterminatedpriortomakingconnectionstotheswitcher.Readthroughthissectioninit’s

entiretybeforerunningorterminatingthewirestoensureproperoperationandtoavoiddamagingequipment.

S/PDIFPort

ThismatrixcontainsaudioconnectionsforS/PDIFdigital.

AudioWiring

DevicesthatuseaS/PDIFconnectioninclude:

MX-0404-KIT

DevicesthatuseaBalancedAudioconnectioninclude:

MX-0808-KIT

MatrixRS-232Port

Receiver(RX)RS-232Port

Receiver(RX)RS-232Port

3rdPartyDevice

Pin1TX(Transmit)--->To--->RX(Receive)

Pin2RX(Receive)--->To--->TX(Transmit)

Pin3G(Ground)--->To--->G(Ground)

WyreStormConnector

3rdPartyDevice

Pin2TX(Transmit)--->To--->RX(Receive)

Pin3RX(Receive)--->To--->TX(Transmit)

Pin5G(Ground)--->To--->G(Ground)

WyreStormConnector

Note:Pinsnotshownintable havenoconnection.

EDIDSettings(MX-0404-KIT)

EDIDscanbeconguredtoresolveissueswithvideooutputondisplaysthatmaynotacceptthemaximumresolutionavailablefromthesource.

•WhensettoSmartEDID(default)thematrixwillscanallselecteddisplaysforthelowestresolutiontodynamicallyadjustthesourcecontentto

allowoutputon2Kand4Kdisplayssharingthesamesource.

•WhenEDIDCopyoradirectEDIDisbeingused,SmartEDIDisturnedOff.

•EnsurethatadisplayisconnectedandpoweredOntotheselectedoutputbeforecopyingEDIDsorthecopywillfail.Whenthisoccurs,EDIDwill

besetto4K@30Hz2ch.

•Powertothematrixmustbecycled(Off/On)afterchangingdipswitchesinorderforthesettingtotakeeffect.

AccessingtheWebUI

ThismatrixissettoadefaultstaticIPAddress(192.168.11.143).InordertocommunicatewithitinitiallythePCmustbesettoa192.168.11.xxxaddresswitha

subnetof255.255.0.0.ThiscanbechangedbackonceastaticIPissetwithinadifferentrange.

1.ConnectthematrixtothesamenetworkasaPC.

2.OpenawebbrowserandentertheIPAddressofthematrix

Default:192.168.11.143|Password:admin

IPAddressNotes

•WhentosettoDHCPtheIPaddressoftheunitcanbedisplayedbypressingandholdingthefrontpanelUpandDownbuttonsfor3seconds.TheIPaddress

willbedisplayedonthefrontpanel.

•Theinstallerpasswordandgeneralpasswordarethesamebydefault.WyreStormrecommendschangingthepasswordforinstallerlogintoavoidany

unwantedchangesbeingmadetothematrixconguration.

CopyingEDIDs

1.SettheEDIDdipswitchtotheFrontPanel,WebUIorAPIEDID

Control(allswitchesup).

2.Rebootthematrix.

3.Usingthefrontnavigationbuttons,selecttheinputportforthe

output.Example:Input2forOutput2

4.Oncetheoutputportindicatorblinks,pressandholdEnterfor5

seconds.OKindicatesthatthecopywassuccessful,FAILindicates

thatthecopyfailed.

5.Rebootthematrix

IRTX/RXGuidelines

•UsingWyreStorminfraredemittersandreceiversisthebestwaytoensure

thatmostIRcodingformatsaretransmittedandreceivedbythesystem.

Other3rdpartyemittersandreceiverscanbeused;however,thesedevices

mustoperateinthesamemannerastheWyreStormdevices.

•DuetodifferencesinIRacross3rdpartycontrolsystemstheirIRports

shouldneverbeconnecteddirectlytoaNetworkHDsystemasan

incompatibilitymayexist.WyreStormoffersacablethatcompensatesfor

voltagedifferencesaswelladjustsfordifferencesinthepinsusedwithin

theport.RefertotheCAB-IR-LINKproductpageformoreinformation.

IRTXPortPinout

ConnectionforIRTX(transmit)usesa3.5mm(1/8in)monoplug.

IRTXPortPinout

ConnectionforIRRX(receive)usesa3.5mm(1/8in)stereojackthatoutputs

+5VDCtopowertheincludedIRreceiver.

Copyright©2022WyreStormTechnologies|wyrestorm.com

MatrixKitsFullRangeQuickstartGuide|220329

2of4

INT:+44(0)1793230343|US:844.280.WYRE(9973)

support@wyrestorm.com

Copyright©2022WyreStormTechnologies|wyrestorm.com

MatrixKitsFullRangeQuickstartGuide|220329

3of4

INT:+44(0)1793230343|US:844.280.WYRE(9973)

support@wyrestorm.com

Tip:Anode(IRSignal)

Sleeve:Cathode(GND)

Tip:Signal (+)

Shield:Ground/Return (-)

Tip:

Ring:IRSignal

+5VDC

Sleeve:Ground(GND)

WarrantyInformation

WyreStormTechnologiesProAVCorporationwarrantsthatitsproductstobefreefromdefectsinmaterialandworkmanshipundernormal

useforaperiodofve(5)yearsfromthedateofpurchase.RefertotheProductWarrantypageonwyrestorm.comformoredetailsonour

limitedproductwarranty.

EDID Switch Location

SmartEDID/FrontPanel/WebUI4KUHD1080p

SmartEDID-DynamicEDID

BasedonDisplay-2chonly

(default)

4K@30Hz(8bitonly)2chwith

HDR(SmartEDIDOFF,HDCP

2.2Support)

1080P@60Hz2.0chaudio

(SmartEDIDOFF,HDCP1.4

Support)

FrontPanel,WebUI,orAPI

Control

4K@30Hz2chwithHDR

(SmartEDIDOFF,HDCP2.2

Support)

4K@30Hz5.1chwithHDR

(SmartEDIDOFF,HDCP2.2

Support)

4K@30Hz7.1chwithHDR

(SmartEDIDOFF,HDCP2.2

Support)

4K@60Hz2ch

(MX-0404-HDBT-H2A-KIT)

Troubleshooting

•NoorPoorQualityPicture(snowornoisyimage)

•Verifythatpowerisbeingsuppliedtothetransmitterandreceivingdevice

•VerifythatallHDMIandHDBaseTconnectionsarenotlooseandare

functioningproperly

•VerifythattheHDBaseTcableisproperlyterminatedfollowingEIA568B

standard

•Verifythattheoutputresolutionofthesourceanddisplayissupportedby

thismatrixandreceiver.

•Iftransmitting3Dor4K,verifythattheHDMIcablesusedare3Dor4K

rated.

NoorIntermittent3rdpartyDeviceControl

VerifythattheIRandRS-232cablesareproperlyterminatedfollowingthe

WiringandConnectionssection.

TroubleshootingTips:

WyreStormrecommendsusingacabletesterorconnectingthecabletoother

devicestoverifyfunctionality.
