IMPORTANT! Installation Requirements

• Visit the product page to download the latest rmware, document version,

additional documentation, and conguration tools.

• Read through the Wiring and Connections section for important guidelines

before creating or choosing premade cables.

In The Box

1x MX-0404-HDMI Matrix

1x 12V DC 2A Power Supply (US/UK/EU/AU)

1x 3.5mm 3-pin Terminal Block

1x IR Receiver

1x Remote Control Handset (CR2025 Battery not Included)

2x Rack Mounting Brackets

2x Wall Mounting Brackets

IMPORTANT! The MX-0404-HDMI had the previous model number of EXP-MX-0404-H2. If you would like to

access previous documentation for the EXP-MX-0404-H2 click here.

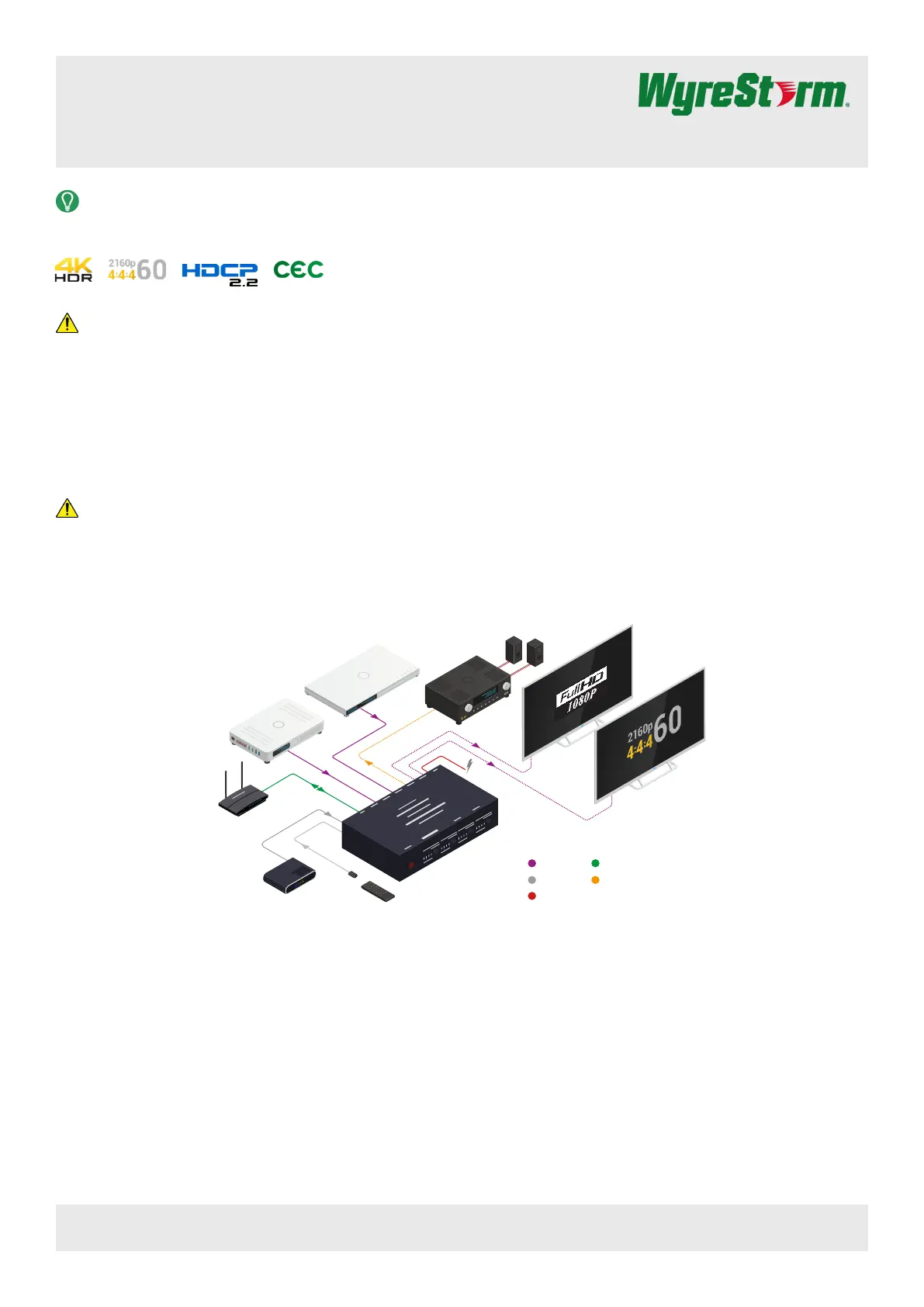

Basic Wiring Diagram

MX-0404-HDMI Quickstart Guide | 210202

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

1 of 4

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation

process.

4K HDR 4 Input Matrix Switcher

with 4 Scaling Outputs

MX-0404-HDMI

Quickstart Guide

Remote

Control

4K Satellite Box

Wireless Router

Control System

4K Blu-ray Player

AVR

Display Devices

KEY

HDMI

Control

Power

Ethernet

Digital Audio

Installation and Operation

1. Connect HDMI sources to INPUT ports 1-4 using good quality HDMI cables.

2. Connect an HDMI display device to the HDMI OUT ports of the switcher.

3. Turn the power on using the included remote handset, ensuring LED power indicators are fully lit on the front of the switcher. If not, check to make sure the

HDMI cables are rmly connected.

4. To operate the switcher, press the SWITCH buttons on the front of the unit to scroll numerically through connected sources.

5. Alternatively, use the remote control handset to scroll forwards and backwards through the inputs or push buttons 1-4 corresponding to the connected

sources. Furthermore, a RS-232 or LAN connection from a control system can be used to control the device.

MX-0404-HDMI Quickstart Guide | 210202

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

2 of 4

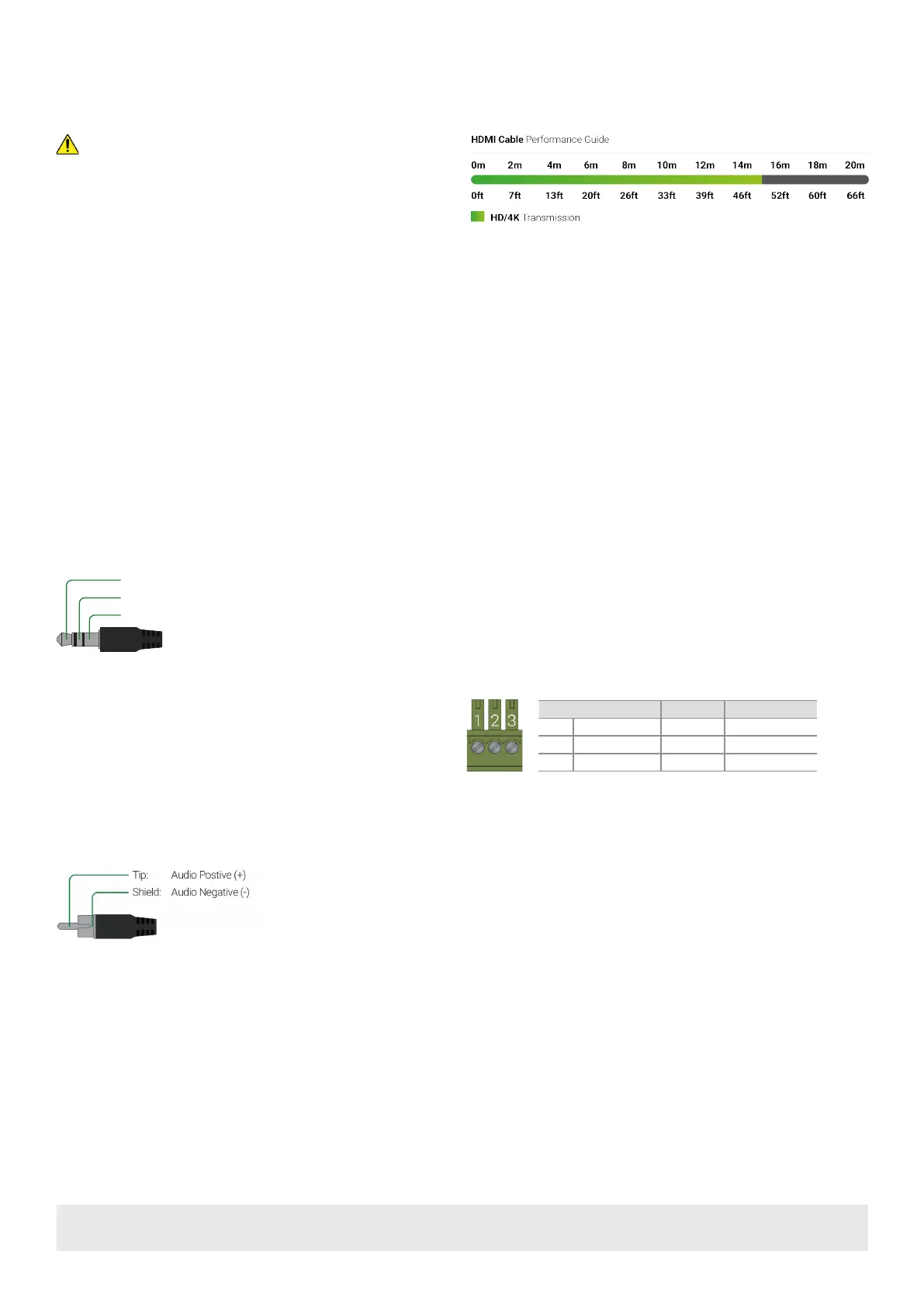

RS-232 Wiring

The MX-0404-HDMI uses a 3-pin RS-232 with no hardware flow control. Most

control systems and computers are DTE where pin 2 is RX, this can vary from

device to device. Refer to the documentation for the connected device for pin

functionally to ensure that the correct connections can be made.

Refer to RS-232 Mode Settings for details on setting RS-232 modes.

3rd Party Device

Pin 1 TX (Transmit) ---> To ---> RX (Receive)

Pin 2 RX (Receive) ---> To ---> TX (Transmit)

Pin 3 G (Ground) ---> To ---> G (Ground)

WyreStorm Connector

Wiring and Connections

WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in it’s

entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.

IMPORTANT! Wiring Guidelines

• The use of patch panels, wall plates, cable extenders, kinks in cables, and

electrical or environmental interference will have an adverse effect on

signal transmission which may limit performance. Steps should be taken

to minimize or remove these factors completely during installation for best

results.

• WyreStorm recommends using pre-terminated HDMI cables due to the

complexity of these connector types. Using pre-terminated cables will

ensure that these connections are accurate and will not interfere with the

performance of the product.

IR EXT Port Pinout
