Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: July 4, 2019

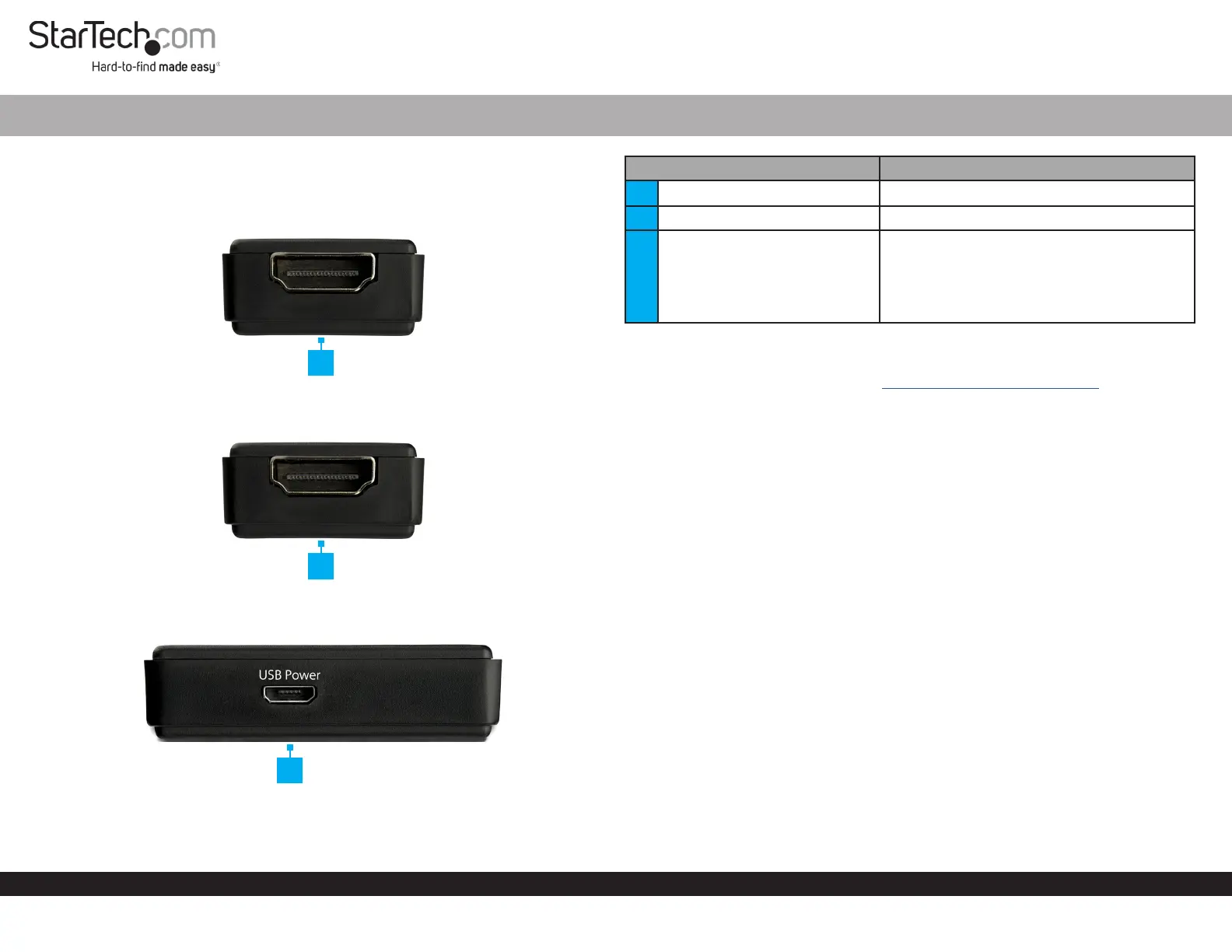

Product Diagram (HDBOOST4K2)

Front View

Rear View

Side View

HDMI® Signal Booster and Extender - 4K 60Hz

ComponentFunction

1HDMI Input Port• Connect an HDMI Source Device

2HDMI Output Port • Connect an HDMI Display Device

3Micro USB Power Port

• Connect the Micro USB Cable to the HDMI

Signal Booster and Extender and a USB

Power Source when there is no signal

or an intermittent signal on your HDMI

Display Device

Requirements

For the latest requirements, please visit www.startech.com/HDBOOST4K2.

• HDMI Source Device x 1

• HDMI Display Device x 1

• HDMI Cables x 2

Notes: It is recommended that you use Premium HDMI Cables when connecting

Devices to the HDMI Signal Booster and Extender.

To achieve a full 4K60Hz image, it is recommended that Premium HDMI Cables no

longer than 7m on the HDMI Input and 7m on the HDMI Output ends are used.

• (Optional) USB Power Source x 1

Installation and Operation

1. Ensure all of the Devices are powered O.

2. Connect an HDMI Cable to the HDMI Output Port on the HDMI Source Device and

to the HDMI Input Port on the HDMI Signal Booster and Extender.

3. Connect an HDMI Cable to the HDMI Output Port on the HDMI Signal Booster

and Extender and to the HDMI Input Port on the HDMI Display Device.

4. Power On all of the Devices.

2

3

1
