FOX3 SR 321, FOX3 SR 331, and FOX3 SR 211 • Setup
Guide
IMPORTANT NOTE:
Go to www.extron.com for the complete user guide, installation instructions, and specications
before connecting the product to the power source.
FOX3 SR 321 FOX3 SR 331 FOX3 SR 211
This guide provides quick start instructions for an experienced installer to set up and operate the Extron FOX3 SR 321, FOX3 SR 331, and
FOX3 SR 211 Fiber Optic scaling receivers. The FOX3 SR 321, FOX3 SR 331, and FOX3 SR 211 can scale resolutions up to 4K @ 60Hz,
4:4:4 video, 2-channel audio, RS-232, and IR over ber. The FOX3 SR 321, FOX3 SR 331 can additionally send USB over ber.
WARNING: The FOX3 SR 321, FOX3 SR 331, and FOX3 SR 211 output continuous invisible light (Class 1 rated), which may be
harmful to the eyes; use with caution. Plug the attached dust caps into the optical transceivers when the ber cable is unplugged.
CLASS 1 LASER PRODUCT, see the FOX3 SR 321, FOX3 SR 331, and FOX3 SR 211 User Guide, at www.extron.com.
AVERTISSEMENT : Le FOX3 SR 321, FOX3 SR 331, et FOX3 SR 211 émet une lumière invisible en continu (conforme à la classe 1)
qui peut être dangereux pour les yeux, à utiliser avec précaution. Associez les bouchons anti-poussière à l’ensemble émetteur/
récepteur optique lorsque le câble bre optique est débranché.
Produit laser de classe 1, voir le FOX3 SR 321, FOX3 SR 331, and FOX3 SR 211 User Guide sur www.extron.com (en
anglais).
Installation
Step 1 — Mounting
Turn o or disconnect all equipment power sources and mount the receiver as required. For mounting details and considerations, see the
FOX3 SR 321, FOX3 SR 331, and FOX3 SR 211 User Guide at www.extron.com.
50-60 Hz
100-240V
~
--A MAX
LR
LR
RS-232
Tx Rx Tx RxG
IR
A
OUT
R
IN
OUTPUTS
AUDIO
RETURN
INPUTS
CONTROL
B
OUT
IN
DISPLAYPORT
AUDIO
FOX3 SR 331
LAN
1
2
100 mA
REMOTE
RS-232
Tx Rx S5VG
3D
SYNC
USB HID
DEVICES
50-60 Hz
100-240V
~
--A MAX
LR
LR
RS-232
Tx Rx Tx RxG
IR
A
OUT
R
IN
OUTPUTS
AUDIO
RETURN
INPUTS
CONTROL
B
OUT
IN
DISPLAYPORT
USB 2.0
AUDIO
FOX3 SR 321
LAN
1
1
2
100 mA
REMOTE
RS-232
Tx Rx S5VG
3D
SYNC
DEVICES
USB HID
500 mA
1
J
I
I
IG
G
G
C
C
C
B
B
BA
A
A
H
H
H
D
D
D
J
J
J
F
F
F
E
E
E
FOX3 SR 321
FOX3 SR 331
K
K
K
50-60 Hz
100-240V
~
--A MAX
LR
LR
RS-232
Tx Rx Tx RxG
IR
A
OUT
R
IN
OUTPUTS
AUDIO
RETURN
INPUTS
CONTROL
B
OUT
IN
DISPLAYPORT
AUDIO
FOX3 SR 211
LAN
REMOTE
RS-232
Tx Rx S5VG
3D
SYNC
I
I
IG
G
GC
C
CB
B
BA
A
A
H
H
H
D
D
D
J
J
J
F
F
F
K
K
K
FOX3 SR 211

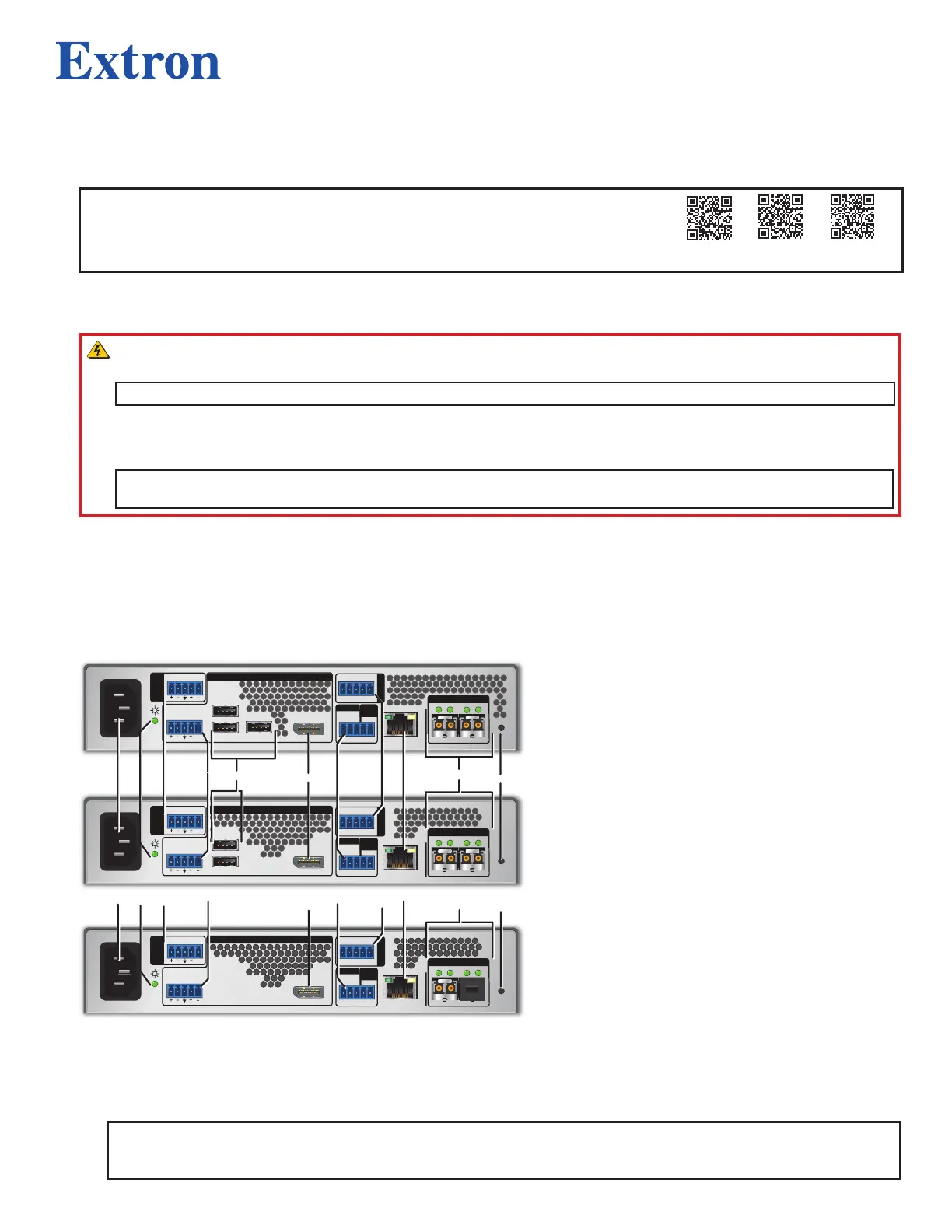

Figure 1. FOX3SR321, FOX3SR331, and FOX3SR211 Rear Panels
A
Power Inlet
B
Power LED
C
Audio Return
D
Audio Out
E
USB Hub ports
F
DisplayPort output
G
Remote RS-232/3D
Sync port
H
Control RS-232/IR port
I
LAN Ethernet port
J
SFP module and LEDs
K
Reset button
Step 2 — Input and Output Connections
a. Connect a DisplayPort display to the DisplayPort output (see figure 1,
F
).
NOTES:
• The FOX3 SR 321, FOX3 SR 331, and FOX3 SR 211 do not support HDCP-compliant devices.
• The FOX3 SR 321, FOX3 SR 331, and FOX3 SR 211 do not support Dual-Mode DP++.
1
2
FOX3 SR 321, FOX3 SR 331, and FOX3 SR 211 • Setup Guide (Continued)
b. Connect an audio output device to the AUDIO 5-pole captive screw port (see figure 1,
D
on page 1) (see figure 2 to wire the captive
screw connector).
c. For optional returned audio (
C
), connect an audio input device to the AUDIO RETURN 5-pole captive screw port (see gure2 on
page 2 to wire the captive screw connector).
ATTENTION:
• For unbalanced audio, connect the sleeves to the
ground contact. DO NOT connect the sleeves to
the negative (–) contacts.
• Pour l’audio asymétrique, connectez les
manchons au contact au sol. Ne PAS connecter
les manchons aux contacts négatifs (–).
Unbalanced Stereo Output Balanced Stereo Output
Unbalanced Stereo Input
Balanced Stereo Input
Do not tin the wires!
Tip
No Ground Here
No Ground Here
Tip
LR
Sleeves
Tip
Ring
Tip
Ring
LR
Sleeves
Tip
Ring
Tip
Ring
LR
Sleeves
Tip
Sleeve
Sleeve
Tip
LR
Figure 2. Audio Wiring Diagrams
d. Connect peripheral devices to the USB ports (see figure 3) .
NOTES:
• The FOX3 matrix switches the USB HID and USB 2.0 inputs and outputs independently of the video and each USB
connection.
• The USB 2.0 port is only available on the FOX3 SR 321 device.
• The USB HID ports are only available on the FOX3 SR 321 and FOX3 SR 331 devices.
• The USB HID ports are used only for a mouse or keyboard.
• The USB 2.0 ports are used for thumb drives, cameras, keyboards, a mouse, CAC reader, and such devices.
50-60 Hz
100-240V ~
0.7A MAX
LR
LR
RS-232
Tx Rx Tx RxG
IR
A
OUT
R
IN
INPUTS
AUDIO
RETURN
OUTPUTS
CONTROL
B
OUTIN
DISPLAYPORT
LOOP OUT
USB HID
USB 2.0
AUDIO
FOX3 T 321
LAN
HOST HOST
REMOTE
RS-232
Tx Rx S5VG
3D
SYNC
50-60 Hz
100-240V
~
--A MAX
LR
LR
RS-232
Tx Rx Tx RxG
IR
A
OUT
R
IN
OUTPUTS
AUDIO
RETURN
INPUTS
CONTROL
B
OUT
IN
DISPLAYPORT
USB 2.0
AUDIO
FOX3 SR 321
LAN
1
1
2
100 mA
REMOTE
RS-232
Tx Rx S5VG
3D
SYNC
DEVICES
USB HID
500 mA
Transmitter
Receiver
SM or MM cable
A
A
A
B
B
B
USB
USB
USB
USB
USB
Laptop
L
t
Keyboard
y
Mouse
Thumb Drive

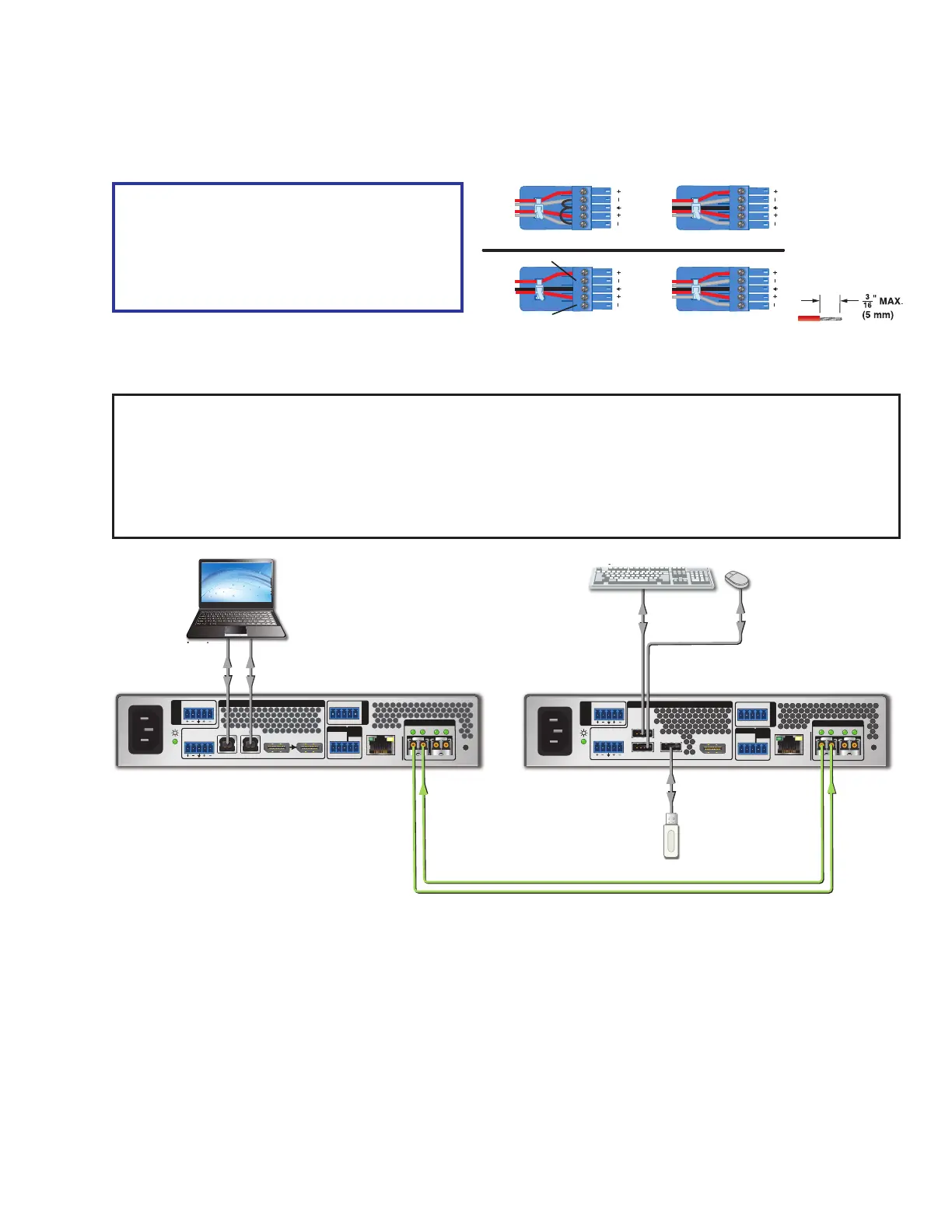

Figure 3. Peripheral USB Connections Diagram
• USB Host ports (
A
) — Connect a USB type A to B cable between this USB type B port and the USB port of a host.
• USB Hub ports (
B
) — Connect a USB type A cable between the USB type A port and peripherals.
D
C
2
3
